1-1
Chapter 1 BEFORE USING THE INVERTER
1.1 Acceptance Inspection
Unpack the package and check that:
(1) An inverter and accessories below are contained in the package.
• Cooling fan mounting screws (5.5 to 22 kW)
• Rubber bushes for cable guide plate (5.5 to 22 kW)
• Encoder wiring plug
(2) The inverter has not been damaged during transportation—there should be no dents or parts missing.
(3) The inverter is the model you ordered. You can check the model name and specifications on the main
nameplate. (Main and sub nameplates are attached to the inverter and are located as shown on the following
page.) For the inverter whose capacity is 37 kW or above, the mass of that is printed on the nameplate.

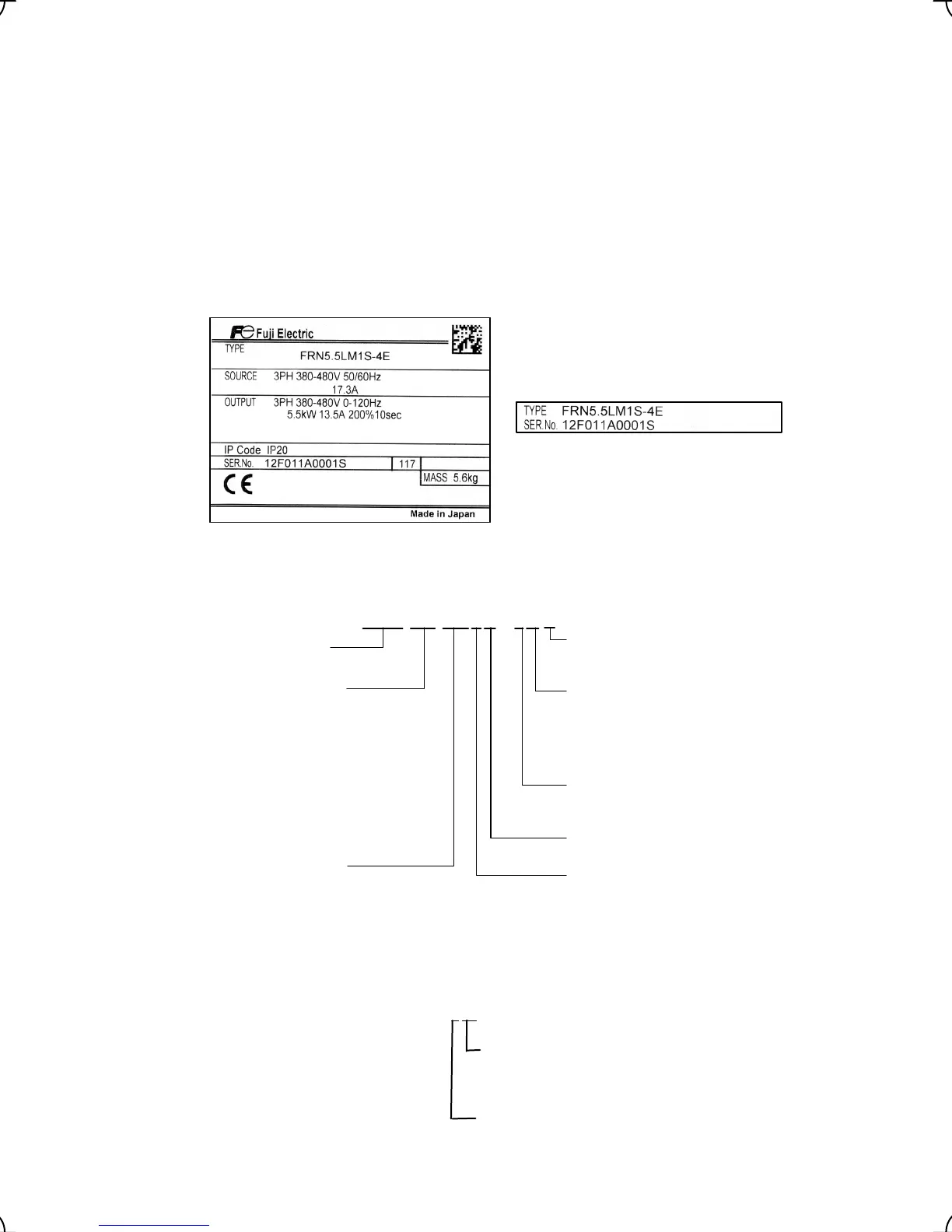

(a) Main Nameplate (b) Sub Nameplate
Figure 1.1 Nameplates
TYPE: Inverter model
F R N 5. 5 L M 1 S - 4 C
Code Series name
FRN FRENIC series
Code Nominal applied
motor
4.0 3.7 kW
5.5 5.5 kW
7.5 7.5 kW
11 11 kW
15 15 kW
18.5 18.5 kW
22 22 kW
30 30 kW
37 37 kW
45 45 kW
Code Applicable area
LM Elevating machinery
Code Shipping destination/
Instruction manual version
C China/Chinese
E EU/English
A Asia/English
J Japan/Japanese
Code Power supply voltage
4 Three-phase 400 V
2 Three-phase 200 V
Code Enclosure
S Standard (IP20/IP00)
Code Development code
1 1
Code CAN port
With CAN port
Without CAN port
(blank)
A
SOURCE: Number of input phases (three-phase: 3PH), input voltage, input frequency, input current
OUTPUT: Number of output phases, rated output capacity, rated output voltage, output frequency range, rated
output current, overload capacity
SER. No.: Product number manufacturing date
1 2 F 0 1 1 A 0 0 0 1 S 1 17
Production week
This indicates the week number that is numbered
from 1st week of January.
The 1st week of January is indicated as '01'.
Production year: Last digit of year
If you suspect the product is not working properly or if you have any questions about your product, contact your
Fuji Electric representative.
