Machine Components
The following describes machine components and their functions.

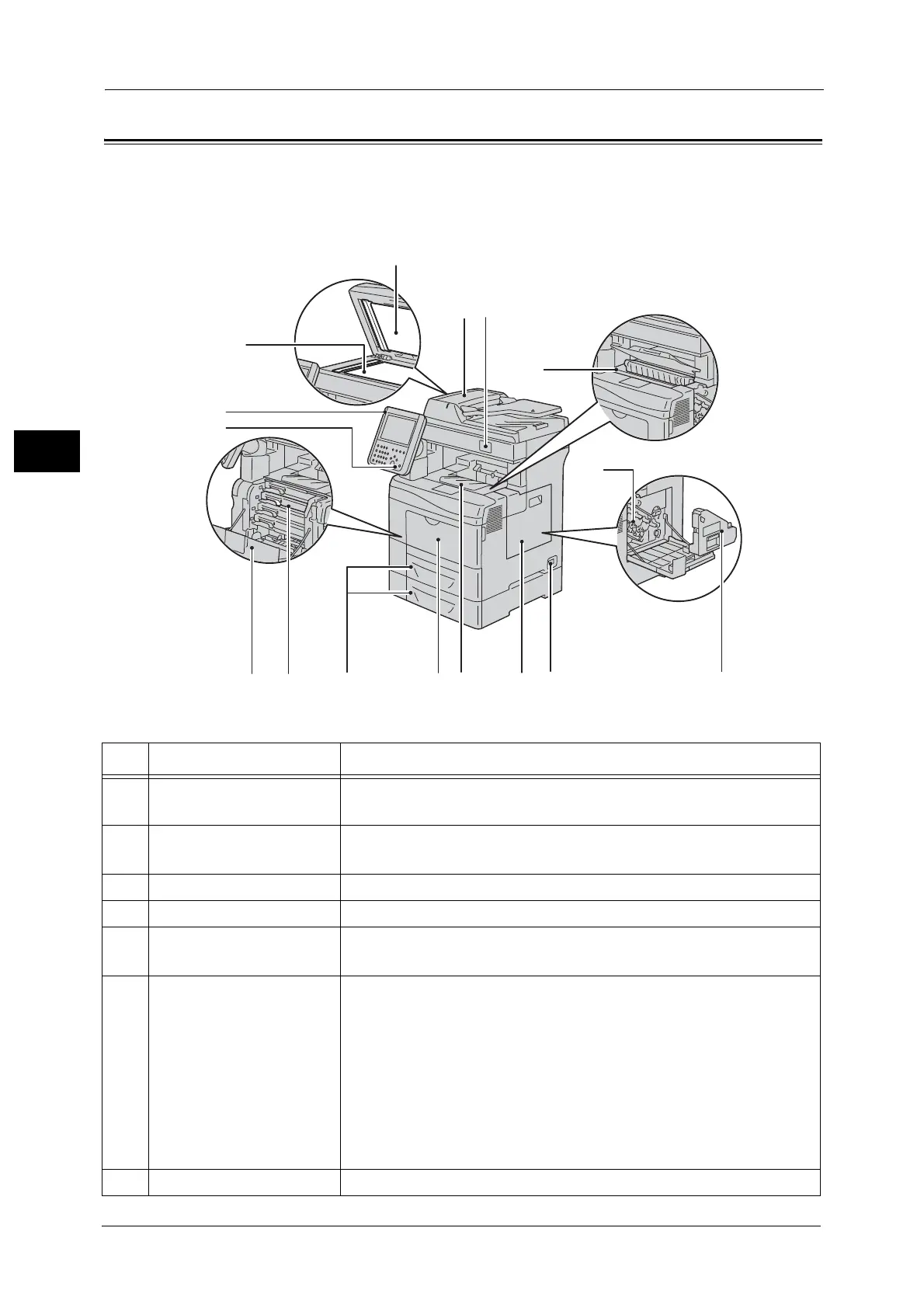

Front view of the machine
No. Component Function
1 Push-button power switch Switches the power of the machine on and off.
Refer to "Power Source" (P.29).
2 Control panel Consists of operation buttons, LED indicators, and the touch screen.
Refer to "Control Panel" (P.27).
3 Document glass Load a document here.
4 Document cover Holds a document in place.
5 Duplex Automatic Document
Feeder
Load documents here.
Refer to "Duplex Automatic Document Feeder" (P.26).
6 IC Card Reader (optional) Used to authenticate a user using a smart card.
When you touch the smart card to the IC Card Reader, the machine reads
the user information registered on the smart card and authenticates the
user.
Note • An optional component is required to use this feature. For more
information, contact our Customer Support Center.
• When the machine is in the Power Saver mode, touching the smart card
to the IC Card Reader deactivates the Power Saver mode. However, this
operation does not deactivate the Sleep mode. For more information,
refer to
"Exiting the Power Saver Mode" (P.33)
.
7 Belt unit Contains the belt for transferring toner to paper.
To Next Page
