Fuji Xerox DocuPrint M465 AP Administrator's Guide

15 Appendix
542
Appendix
15
 Paper
Defines a size same as the paper size as the hard clip area. However, the area that allows
actual printing is within the printable area.
The hard clip area can be set either with HP-GL emulation mode settings or by the specified
hard clip command "&I".
The following coordinate values present an example of when the origin is set at the lower
left (Auto Layout in HP-GL/2) of A4 sheet.

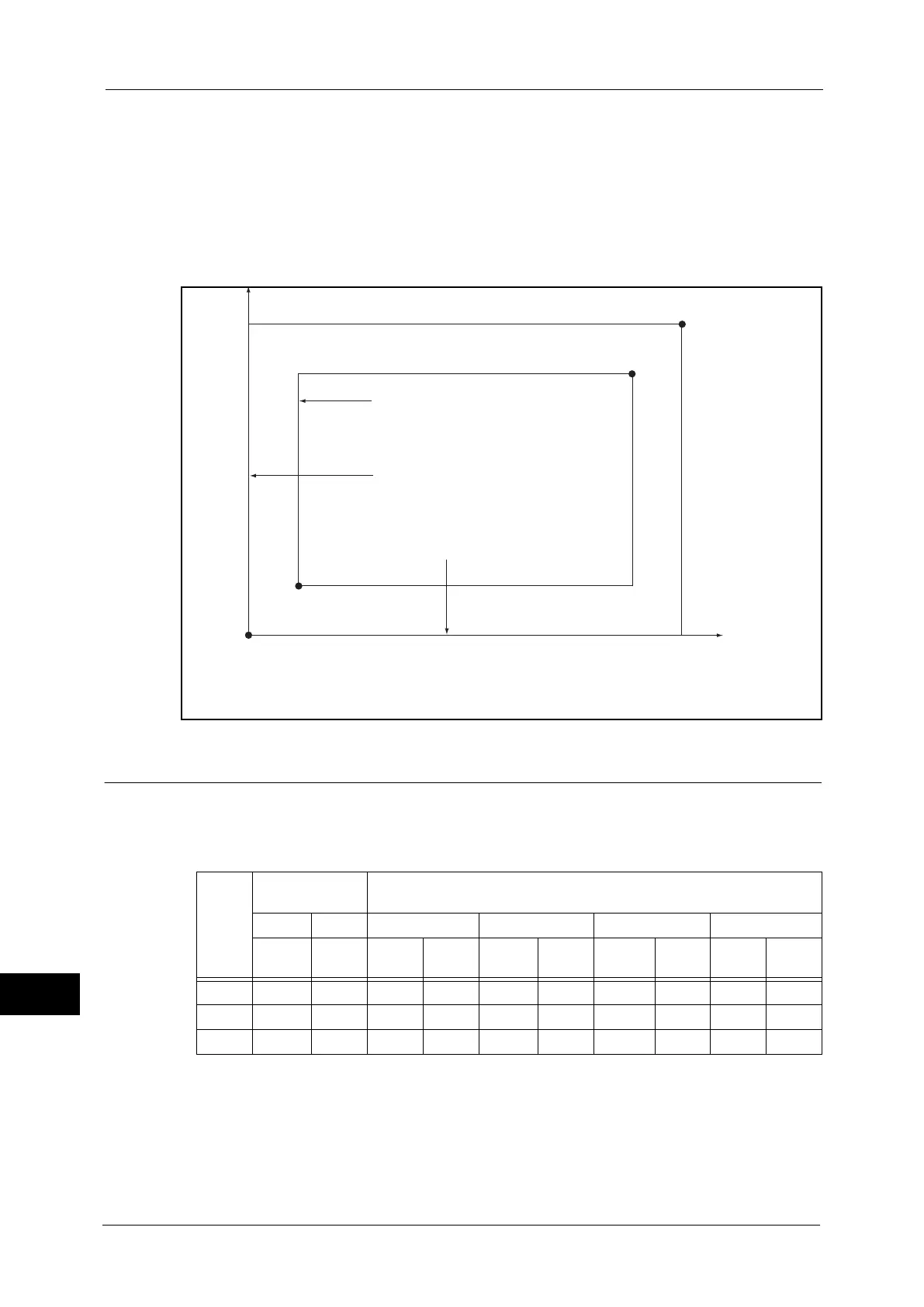

Printable Area
The printable area in the HP-GL mode is as follows:
 Paper Size and Printable Area
Note • The HP-GL emulation supports A5, A4, and B5 paper.
Paper
size
Paper Length
(1/7200 inch)
Coordinate Value (1/7200 inch)
X Axis Y Axis Margin Printable Area Top-right Edge Margin
Width Height Bottom
-left X
Bottom
-left Y
Long
Side
Short
Side
Top-
right X
Top-
right Y
XR YU
A4 84168 59508 1260 1260 81648 56988 82908 58248 1260 1260
A5 59508 41940 1260 1260 56988 39420 58248 40680 1260 1260
B5 72828 51588 1260 1260 70308 49068 71568 50328 1260 1260
(11876,8396)
(11520,8040)
Standard Hard Clip Area
Paper Hard Clip Area
Paper Size
(0, 0) Standard origin
(0, 0) Paper origin
+X
+Y
