Working with the no tebook
LIFEBOOK ports Port Replicator ports
LCD notebook
monitor DisplayPort DisplayPort DVI-D port VGA port
-
X
--
X
XXX
--
-
XX
-
X
X
-
X
--
--
X
-
X

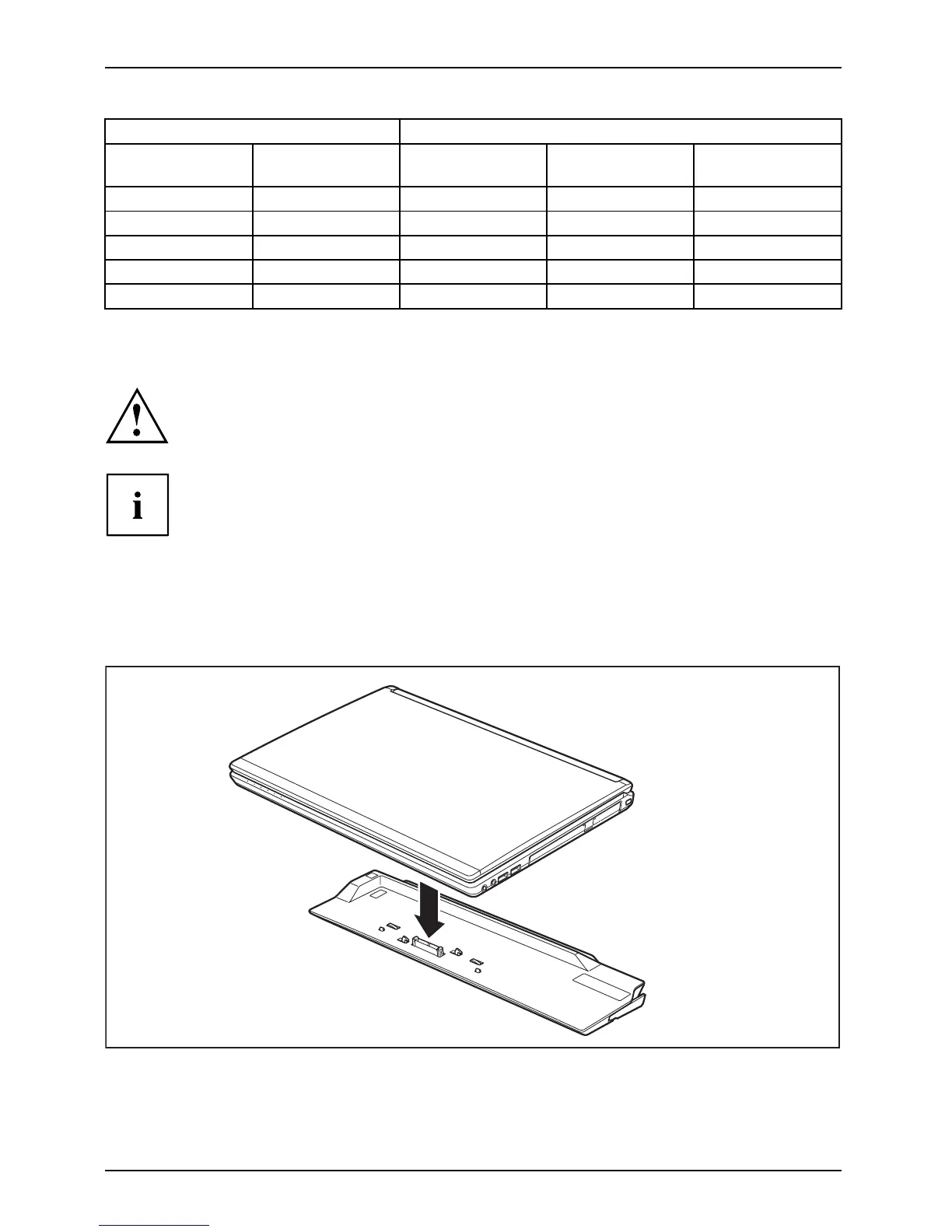

Connecting the notebo
ok to the Port Replicator
If yo u connect the notebook to the Port Replicator during operation, problems can
occur. We recommend that you switch off the notebook beforehand.
The AC adapter must be connected to the Port Replicator when the
notebook is connected to the Port Replicator.
We re commend that the notebook is not operated with the LCD screen closed when
the notebook is connected to the Port Rep licator. The resulting overheating can
cause r educed performance and increased activity of the integrate d fan.
PortReplic ato r
► Switch the not
ebook off.
► Remove the AC plug for the AC adapter from the power outlet.
► Disconnect t
he AC adapter cable from the DC socket (DC IN ) of th e notebook.
1
► Position the notebook so that it is in line with the back edge of the Port Replicator.
► Place the notebook onto the Port Replicator (1) and ensure that it locks into place correctly.
