Fujitsu ScanSnap S1300 User Manual

Installing Scan to Microsoft SharePoint
35

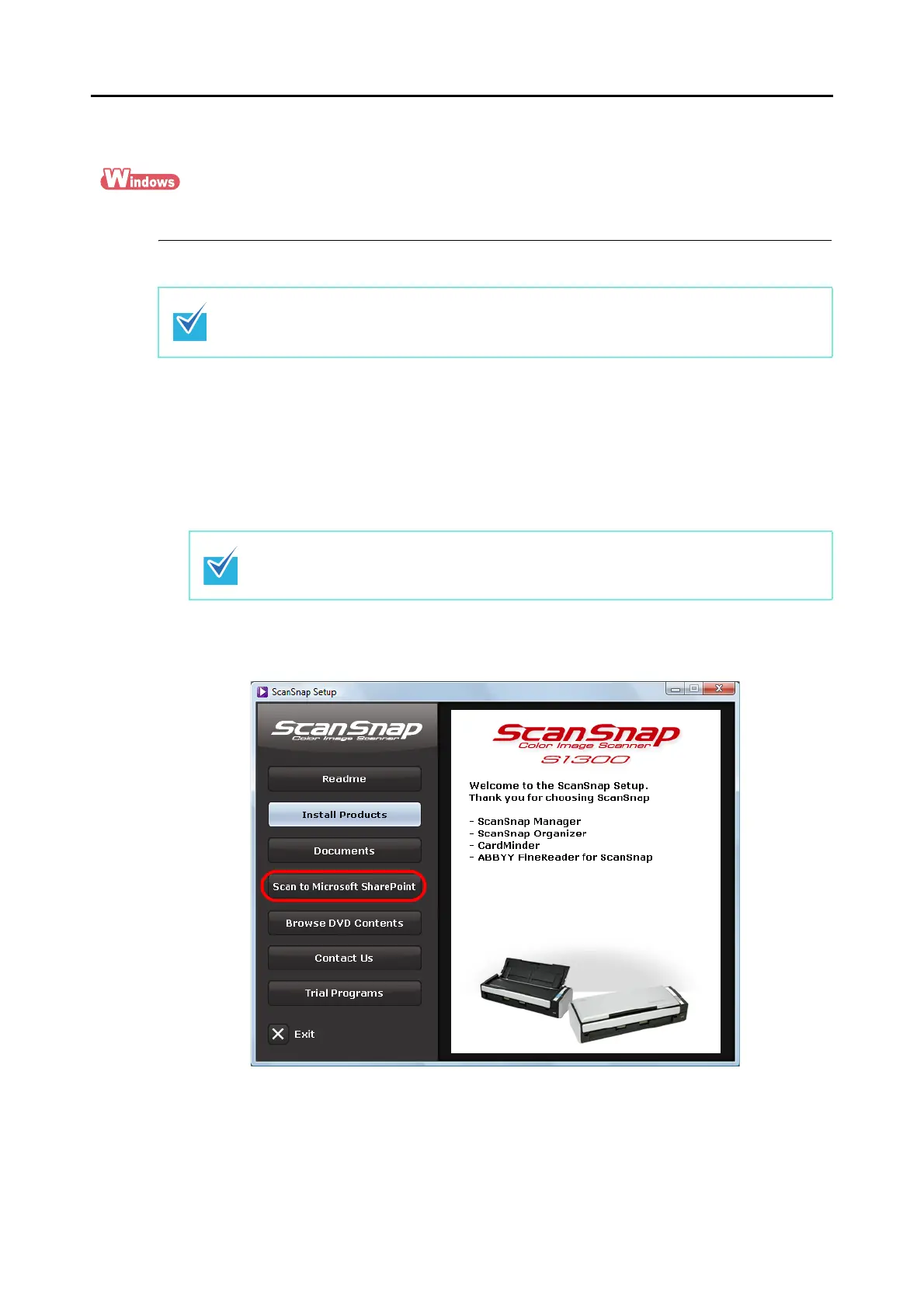

Installing Scan to Microsoft SharePoint
Follow the procedure below to install Scan to Microsoft SharePoint.
1. Turn on the computer and log on as a user with Administrator privileges.
2. Insert the Setup DVD-ROM into the DVD-ROM drive.
D The [ScanSnap Setup] dialog box appears.
3. Click the [Scan to Microsoft SharePoint] button.
D The [Scan to Microsoft SharePoint] dialog box appears.
Refer to "Readme" of Scan to Microsoft SharePoint for more details about system require-
ments. You can display the "Readme" by clicking the [Readme] button on the [Scan to
Microsoft SharePoint] dialog box.
If the [ScanSnap Setup] dialog box does not appear, double-click "ScanSnap.exe" in the
DVD-ROM via [Explore] or [My Computer].

Fujitsu ScanSnap S1300 Specifications

General

Film scanning	No
Color scanning	Yes
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 99 x 77 mm
Power requirements	AC 100 - 240V, 50/ 60 Hz
Non-operating relative humidity (non-condensing)	20 - 80 %
Minimum RAM	512 MB
Minimum storage drive space	2197 MB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Operating temperature (T-T)	5 - 35 °C
Certification	RoHS

Weight and Dimensions

Depth	99 mm
Width	284 mm
Height	77 mm
Weight	1400 g
