G1000 V8.XX S/W Load and Post Install Checkout – Columbia 350/400 Page 2-7
190-00577-04 Revision 1

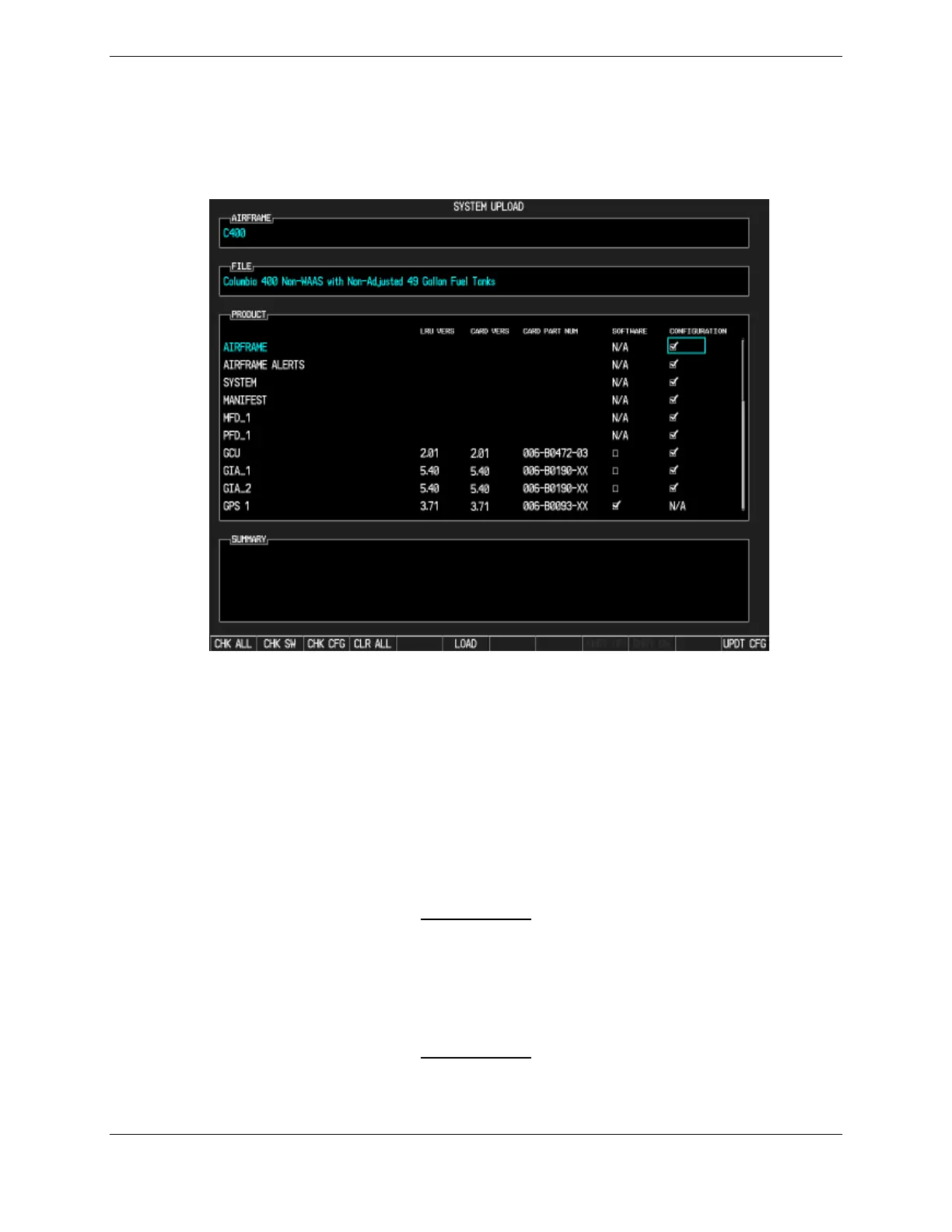

4. The PRODUCT window will populate and display software and configuration file information for
each G1000 LRU. The LRU VERS column shows the currently loaded software version in the
LRU, whereas the CARD VERS column shows the LRU software version stored on the Loader
Card. Each check designates a file to be loaded to the G1000.
By default, if an inequality between the LRU and CARD columns exists, the SOFTWARE and
CONFIGURATION boxes will be pre-selected (checked).
The following softkeys provide an easy way to select files:
CHK ALL: Selects all files, both configuration and software
CHK SW: Selects all software files only.
CHK CFG: Selects all configuration files only.
CLR ALL: Clears all selections.
IMPORTANT
If this is the first time loading software and configuration to a new installation, it is
advised to leave all check boxes selected.
5. After verifying that the desired software and configuration files are checked, press the LOAD
softkey. The G1000 system automatically begins loading software and default configuration files
to the selected LRUs in the proper order.
IMPORTANT
If non-WAAS GIA 63s are installed, the software boot block version must be checked
while software is being loaded to EACH GIA 63. Wait until the software loading process
begins to load the GIA 63 software. On the MFD, go to the System Status page and
