Garmin G5 Install Manual & Pilot's Guide
190-02072-00 Rev. E 153
Pilot's Guide
Installation Manual Pilot's Guide Appendix Index
2.5 ACCESSING FUNCTIONALITY
2.5.1 PAGES
NOTE: The G5 will automatically return to the PFD Page when the aircraft
enters an unusual attitude (if enabled in the system configuration). Refer to
the Installation Manual section for more information.
The G5 has two main pages, the HSI Page and the PFD Page. The HSI Page can be
accessed from the PFD Page (unless it has been disabled in configuration).

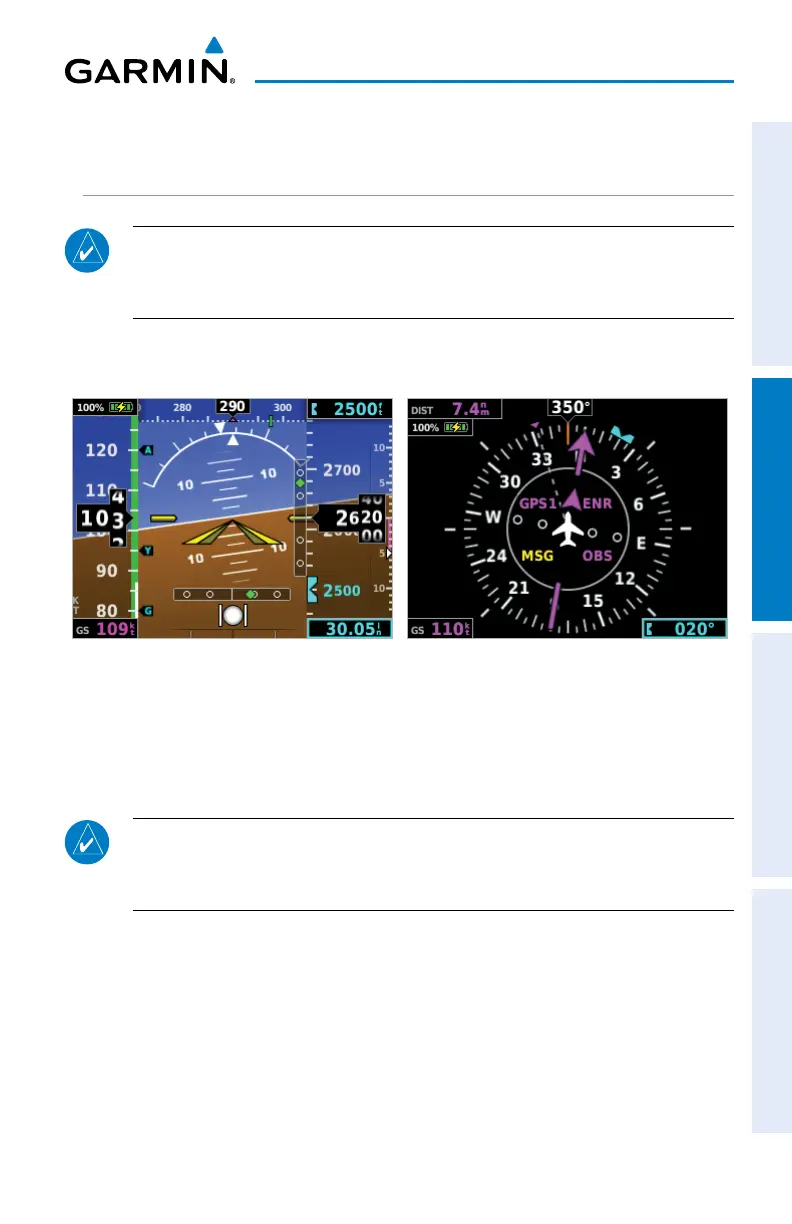

Figure 2-3 PFD Page Figure 2-4 HSI Page
Displaying the HSI page from the PFD page:
1)
From the PFD Page press the Knob to display the Menu.
2)
Use the Knob to select HSI.
NOTE: The G5 can be configured to power-up on either the PFD or HSI page
(if allowed by the current system configuration). Refer to the Installation
Manual section for more information.
