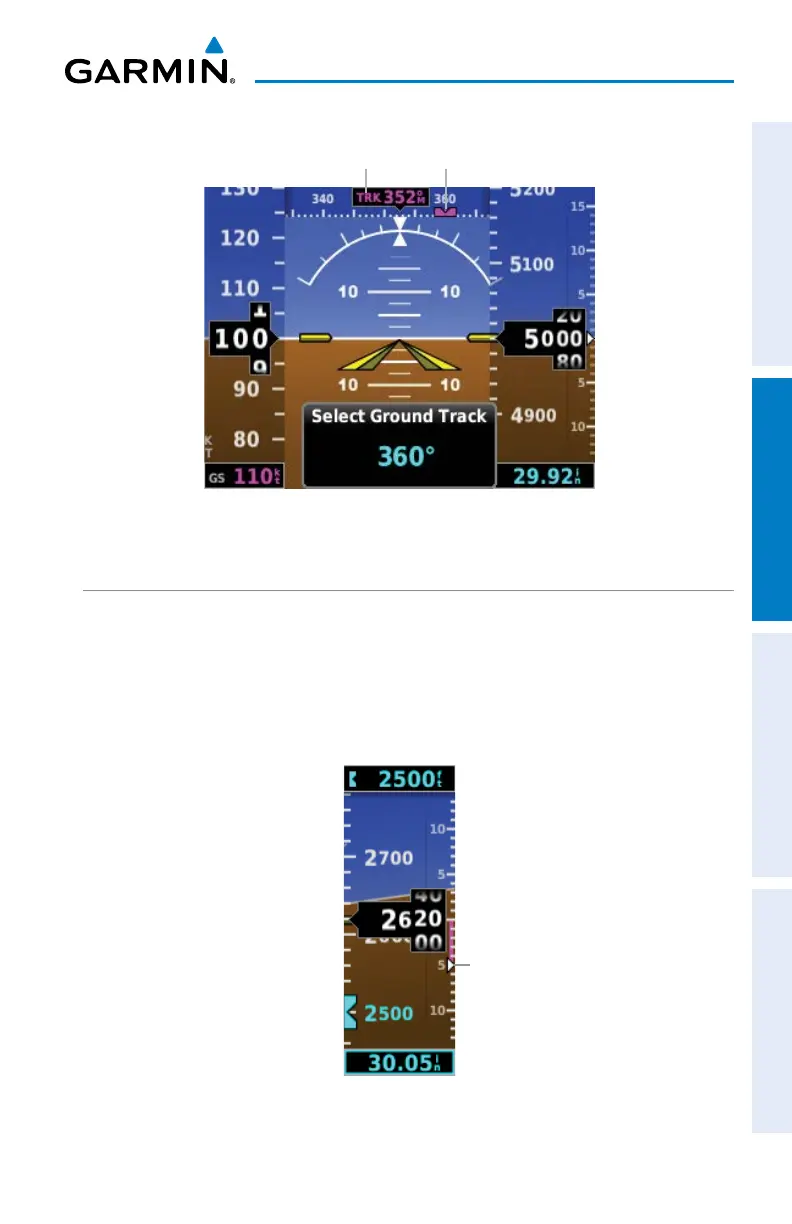

Figure 2-17 PFD Page - Selected Ground Track
Current
Ground
Track
Selected
Ground
Track Bug
2.6.6 VERTICAL SPEED INDICATOR (VSI)
The Vertical Speed Indicator displays the aircraft vertical speed using a non-moving
tape with minor tick marks every 100 feet. The current vertical speed is displayed
using a white arrow along the tape. From the Air Data Page in configuration mode,
the Vertical Speed Indicator can be configured to display ± 1500 fpm, ± 2000 fpm, or
± 3000 fpm (refer to the Installation Manual section for more information).
Figure 2-18 Vertical Speed Indicator
Current Vertical Speed
