holes on the Jackscrew Backshell.
10) It is recommended to wrap the cable bundle with silicone fusion tape (item
11, Figure 1-22) at the point where the backshell clamp (item 12,
Figure 1-22) and backshell housing will contact the cable bundle.
NOTE:
Use of silicone fusion tape is at the discretion of the installer.
11) Place the smooth side of the backshell clamp across the cable bundle and
secure using the provided screws (item 13, Figure 1-22).
WARNING: Placing the grooved side of the backshell clamp across the cable
bundle may cause damage to the wires.
12. Attach the backshell cover (item 14, Figure 1-22) to the backshell using the
provided screws (item 15, Figure 1-22).
1.6.3 SHIELD TERMINATION TECHNIQUE – METHOD A.2
(DAISY CHAIN)
In rare situations where more flat braids need to be terminated for a connector
than three per ring terminal it is allowable to daisy chain a maximum of two shields
together before terminating to the ring terminal (Figure 1-25). All other restrictions
and instructions for the shield termination set forth in Method A.1 are still applicable.
NOTE:
The maximum length of the combined braids should be 4 inches.

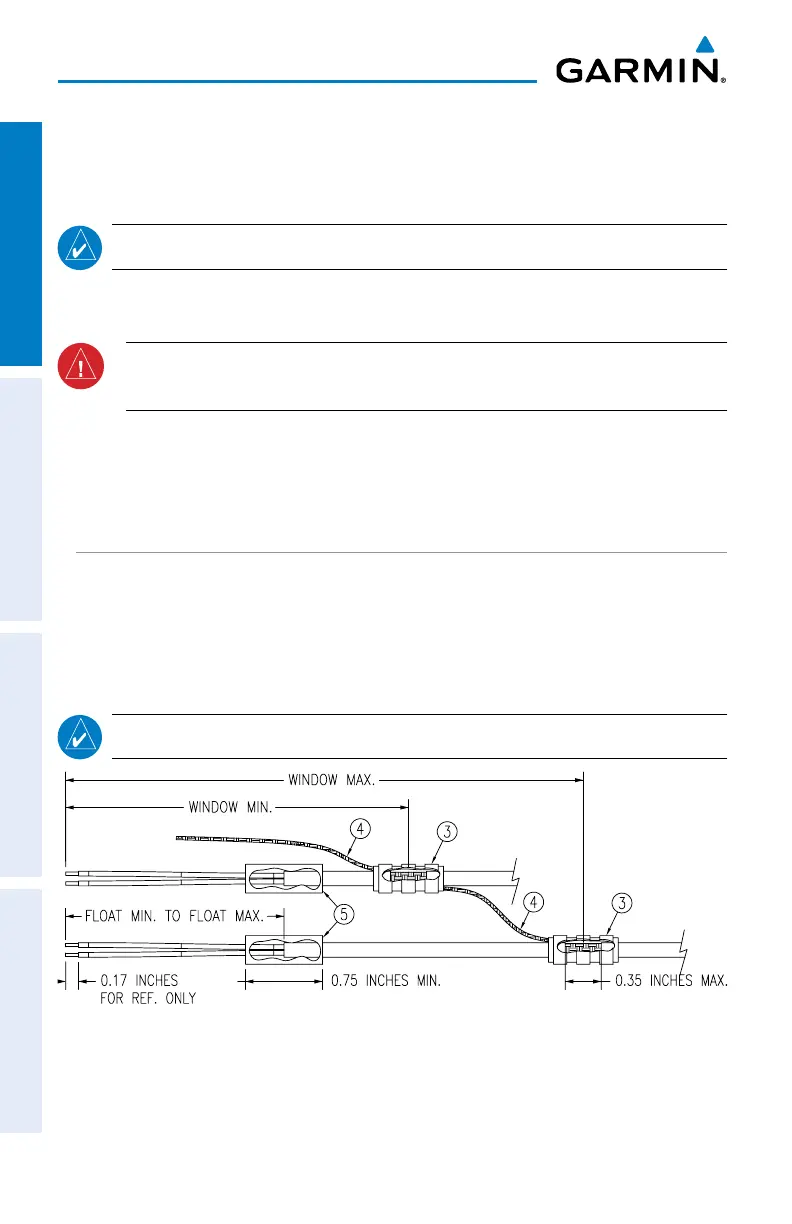

Figure 1-25 Shield Termination Technique Method A.2
