2.6.7 PFD PITCH ATTITUDE OFFSET
NOTE: PFD Pitch Attitude Offset can be configured as disabled in configuration
mode.
The Pitch attitude offset function allows the yellow aircraft symbol on the attitude
indicator to be adjusted up or down much like the aircraft on a mechanical attitude
indicator. The pitch attitude can be adjusted as much as ± 5°. The pitch offset is
synchronized between the G5 and the other displays in a G3X/G3X Touch system. This
function can be disabled in configuration mode.
Changing the PFD pitch attitude offset:
1)
From the PFD Page, press the Knob to display the Menu.
2)
Select Pitch and use the Knob to select the desired Pitch Offset.
Cen
tering the PFD pitch attitude offset:
1)
From the PFD Page, press the Knob to display the Menu.
2)
Select Pitch and press and hold the Knob to center the Pitch Offset.

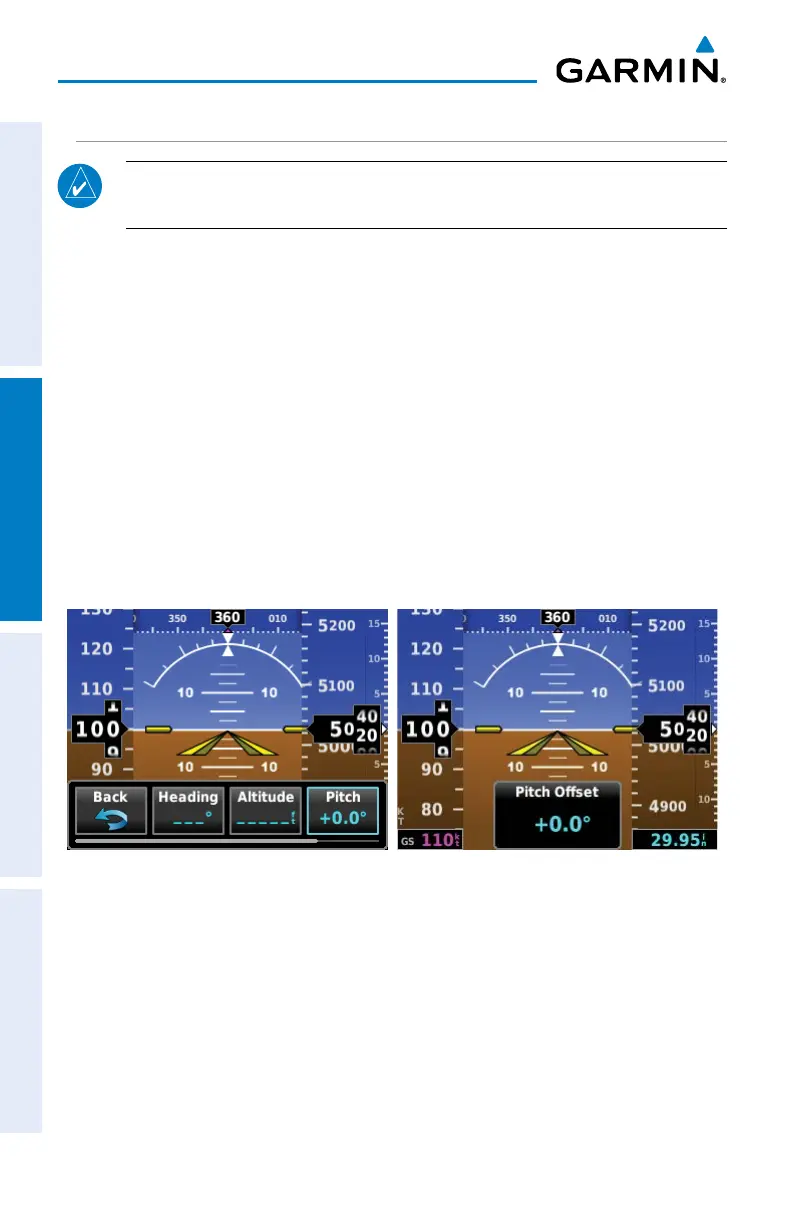

Figure 2-19 Pitch Offset
