Garmin G5 Install Manual & Pilot's Guide
190-02072-00 Rev. E 159
Pilot's Guide
Installation Manual Pilot's Guide Appendix Index
2.6.3 ALTIMETER
The Altimeter displays 400 feet of barometric altitude values at a time on a rolling
number gauge using a moving tape. Numeric labels and major tick marks are shown
at intervals of 100 feet. Minor tick marks are at intervals of 20 feet. The current
altitude is displayed in the black pointer.
The Selected Altitude is displayed above the Altimeter in the box indicated by a
selection bug symbol. A bug corresponding to this altitude is shown on the tape; if
the Selected Altitude exceeds the range shown on the tape, the bug appears at the
corresponding edge of the tape.
The Selected Altitude is synchronized between the G5 and the other displays in a
G3X/G3X Touch system.
Setting the selected altitude:
Rotate the ALT SEL Knob on the GMC 307.
Or
1)
Press the Knob to display the Menu.
2)
Select Altitude and use the Knob to change the Selected Altitude.
Syncing to the current altitude:
Press the ALT SEL Knob on the GMC 307.
Or
1)
Press the Knob to display the Menu.
2)
Select Altitude and press and hold the Knob to sync the Selected Altitude
to the current altitude

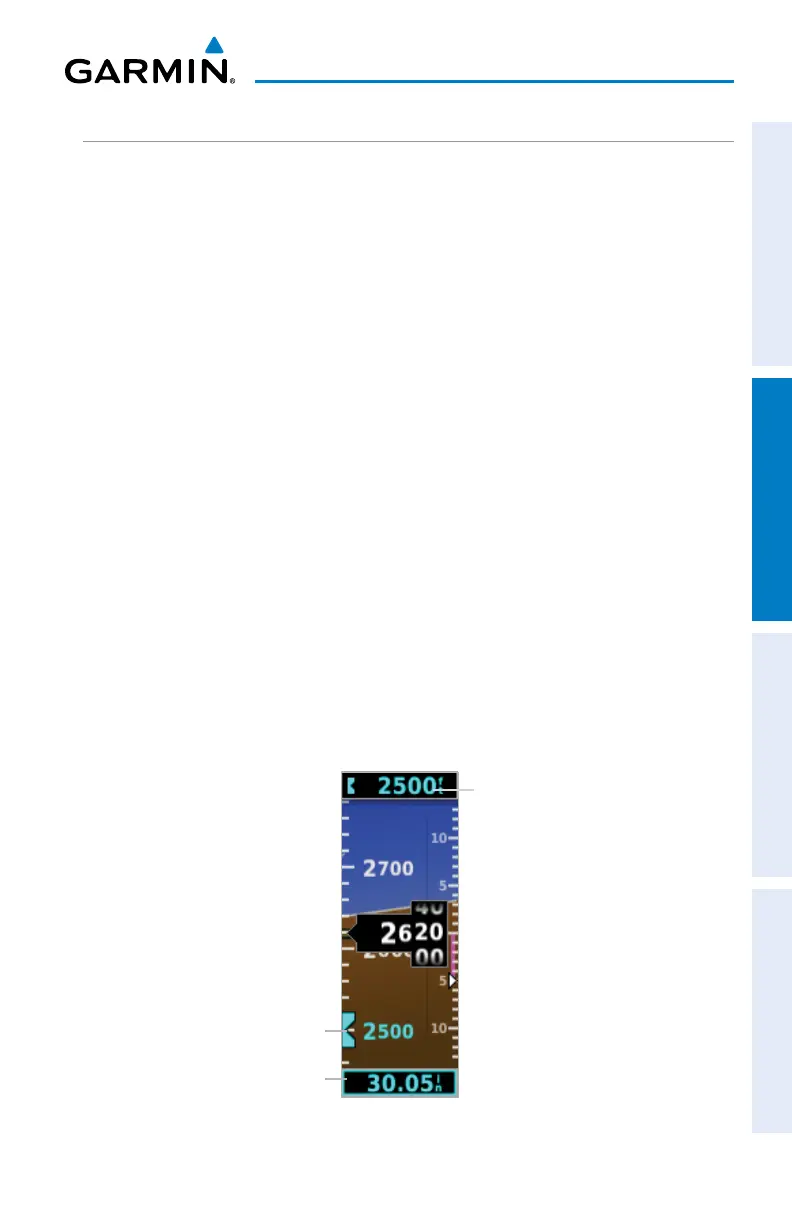

Figure 2-13 Altimeter
Selected
Altitude
Selected
Altitude Bug
Barometric
Setting
