GE AF-650 GP Design And Installation Guide

5About Programming
5.1 Introduction
The adjustable frequency drive is programmed for its
application functions using parameters. Parameters are
accessed by pressing either [Quick Menu] or [Main Menu]
on the keypad. (See 4 User Interface for details on using
the keypad function keys.) Parameters may also be
accessed through a PC using the DCT-10.
The quick menu is intended for initial startup. Data entered
in a parameter can change the options available in the
parameters following that entry.
The main menu accesses all parameters and allows for
advanced adjustable frequency drive applications.
5.2 Programming Example
Here is an example for programming the adjustable
frequency drive for a common application in open-loop
using the quick menu.
•
This procedure programs the adjustable
frequency drive to receive a 0–10 V DC analog
control signal on input terminal 53
•
The adjustable frequency drive will respond by
providing 20–50 Hz output to the motor propor-
tional to the input signal (0–10 V DC =20–50 Hz)
Select the following parameters using the navigation keys
to scroll to the titles and press [OK] after each action.

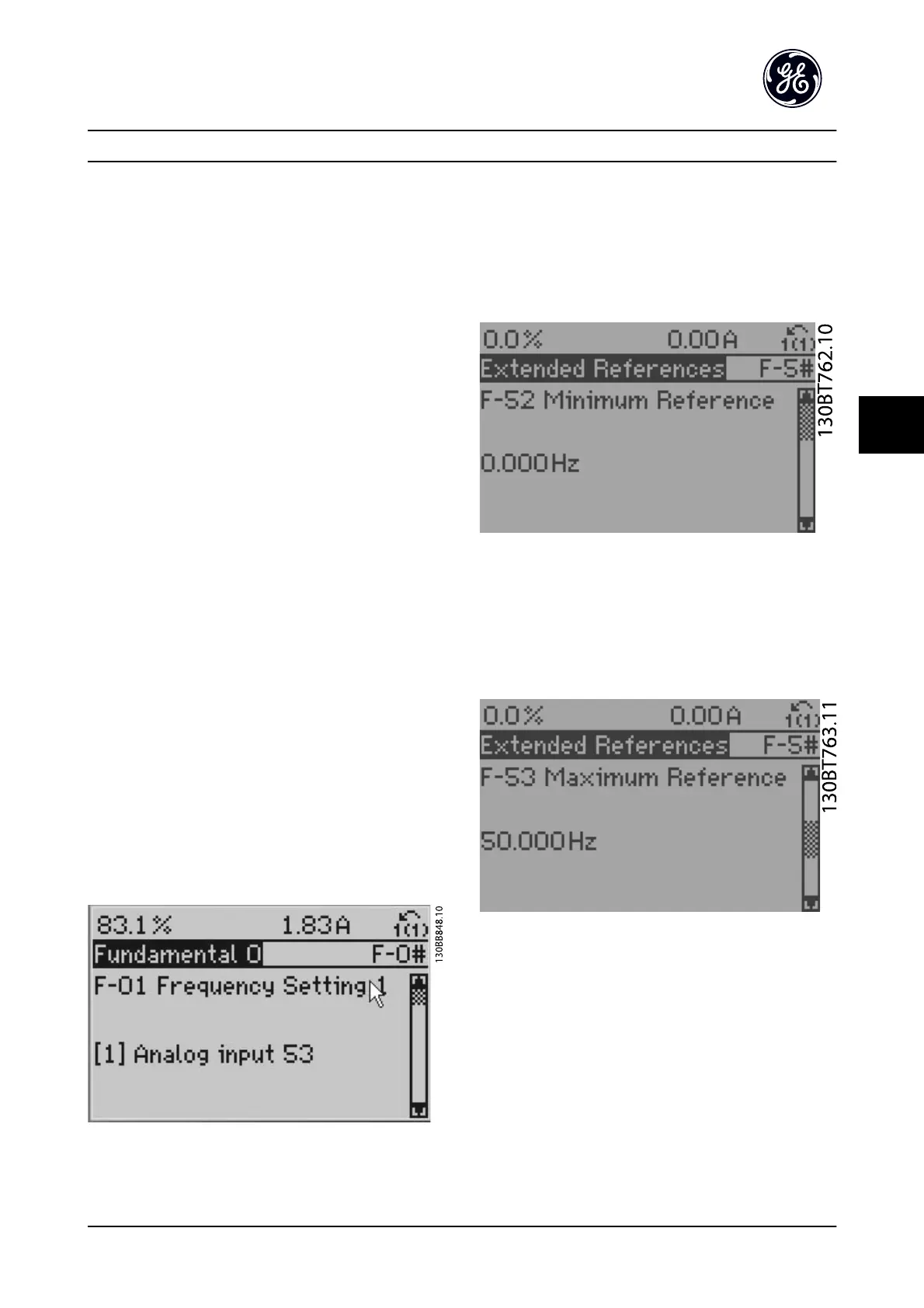

1. F-01 Frequency Setting 1
Figure 5.1
2. F-52 Minimum Reference. Set minimum internal
adjustable frequency drive reference to 0 Hz.
(This sets the minimum adjustable frequency
drive speed at 0 Hz.)
Figure 5.2
3. F-53 Maximum Reference. Set maximum internal
adjustable frequency drive reference to 50 Hz.
(This sets the maximum adjustable frequency
drive speed at 60 Hz. Note that 50 Hz is a
regional variation.)
Figure 5.3
About Programming
AF-650 GP
TM
Design and Installation Guide
DET-767A 5-1
