6.5.2 Process PID Control
Process PID control can be used to control application
parameters that can be measured by a sensor (i.e.
pressure, temperature, flow) and be affected by the
connected motor through a pump, fan or otherwise.
The table shows the control configurations where the
process control is possible. When a flux vector motor
control principle is used, take care also to tune the speed
control PID parameters. Refer to the section about the
Control Structure to see where the Speed Control is active.
H-40 Configu-
ration Mode
H-41 Motor Control Principle
U/f Advanced
Vector Control
Flux
Sensorle
ss
Flux w/
enc. feedb
[3] Process N.A. Process Process
& Speed
Process &
Speed
Table 6.18
NOTE!
Process control PID will work under the default parameter
setting, but tuning the parameters is highly recommended
to optimize the application control performance. The two
flux motor control principles are specially dependant on
proper speed control PID tuning (prior to tuning the
process control PID) to yield their full potential.

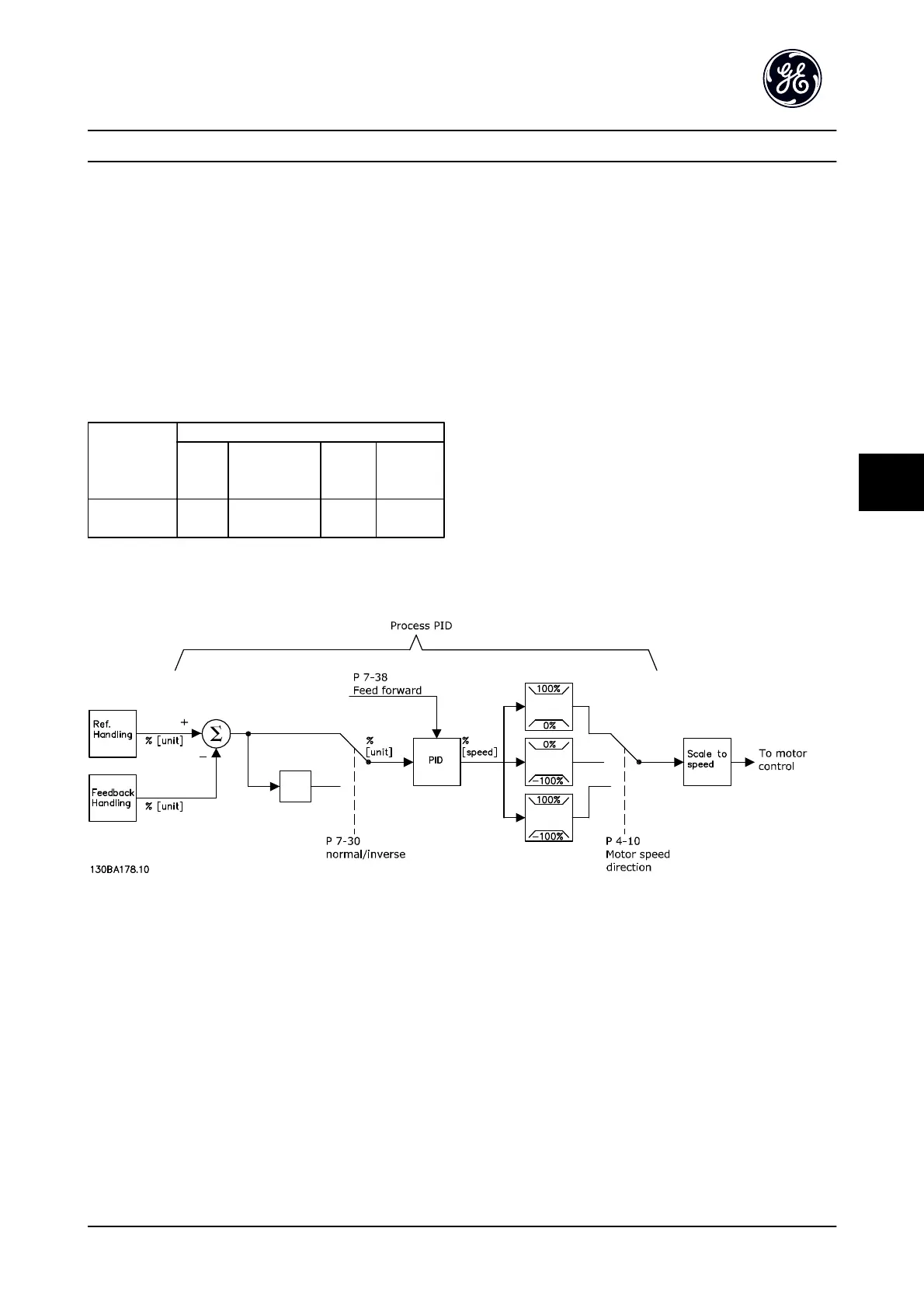

Figure 6.18 Process PID Control Diagram
Application Setup Examples
AF-650 GP
TM
Design and Installation Guide
DET-767A 6-17
6
