2018112-003 Rev J eBike, eBike L, eBike EL - 9 -
B: Mechanical Design
Part B. Mechanical Design
B.1 Operating Controls and Connections of eBike
B.1.a Operating Controls
eBike basic eBike comfort
with control terminal PC with control terminal PCplus
1 Power input with mains fuse (section 2.3.1)
2 Interfaces (on bottom of ergometer)
3 Power switch
4 Nameplate with serial number
5 Control terminal with LCD and operating
controls
6 Speed indication for patient
7 Handlebar
8 Bellows on steering column
9a eBike basic: Steering column (fixed height)
9b eBike comfort: Steering column, height
adjustable
10 eBike comfort: Clamping lever for height
adjustment of the handlebar
11 Clamping lever for angle adjustment
of the handlebar
12 Castors
13 Saddle
14 Steering tube with bellows for saddle
15 LED indicating saddle height
16a eBike basic: Clamping lever for saddle
adjustment
16b eBike comfort: Motor-driven saddle
adjustment
17 Pedal
18 Levelling device for optimum stability

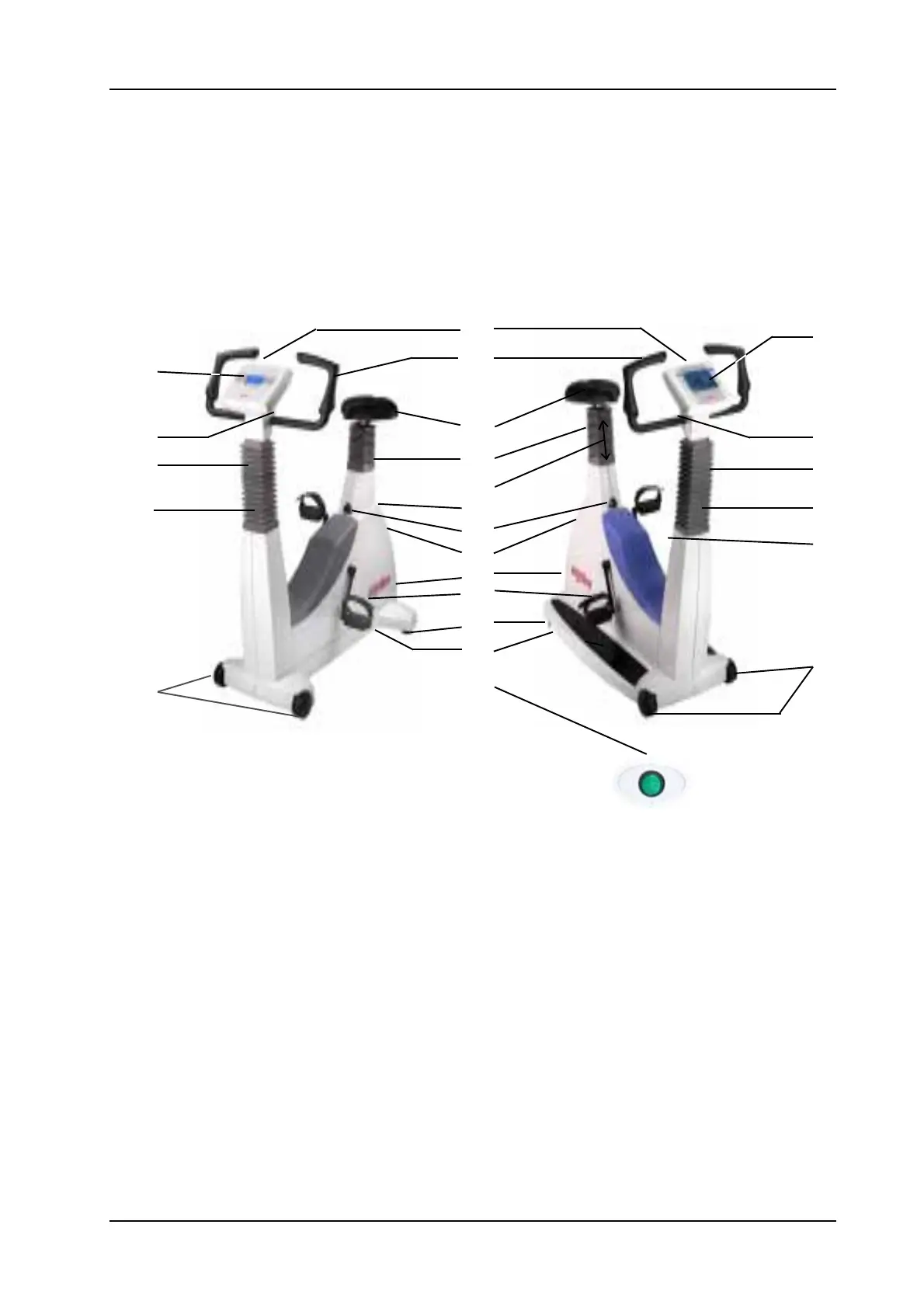

Figure B-1: Operating controls of bicycle ergometers eBike basic / comfort
6
7
13
14
16b
16a
15
3
4
17
18
1, 2
3
5
11
8
9b
10
12
5
11
8
9a
12
