68
-
eBike,
eBike
L,
eBike
EL
2018112-003 Rev
J
E-2.3
RPM Board
: Replacement and Adjustment Procedure

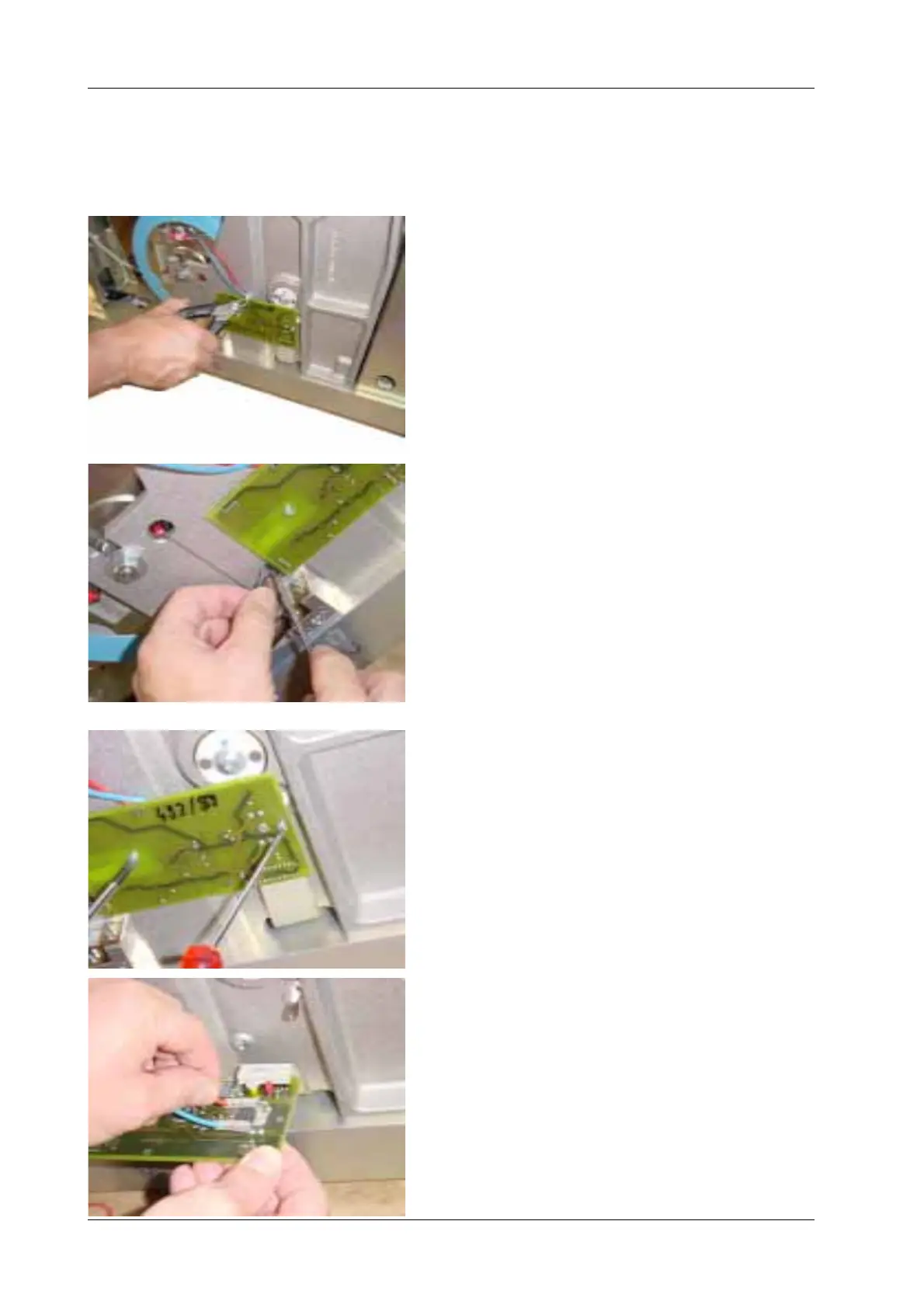

Replacement of PCBRPM Boards 1 and 2
Disconnect ergometer from mains supply
.
Dismantle Ergometer as described in Service Manual.
Cut cable tie.
Disconnect cable to strain gauge (black wire at the
bottom).
Remove fixation screws of RPM board
Disconnect both cables to eddy-current brake.
E: Drive Unit
73
75
Table of Contents
Default Chapter
4
Table of Contents
4
Safety Information
7
Inspection According to German Medical Device Operator Ordinance
8
Final Checkout Procedure / Functional Test
9
A-2.1.Final Checkout Procedure and Functional Test of Ebike Basic, Ebike Comfort
9
A-2.2 Final Checkout Procedure and Functional Test of Ebike L
10
A-2.3 Final Checkout Procedure and Functional Test of Ebike el
11
Part B. Mechanical Design
15
Operating Controls and Connections of Ebike
15
B.1.A Operating Controls
15
B.1.B Operating Controls and Connections of Ebike L
16
B.1.C Operating Controls and Connections of Ebike el
17
B.1.D Connections and Data Ports of the Ebike
18
Overview: Mechanical Design Ebike
19
B-2.1 Overview: Disassembling the Ebike Basic/Comfort
20
B-3. Overview: Mechanical Design Ebike L
27
B-3.1 Overview: Disassembling Ebike L
28
B-3.1.1 Ebike L: Remove Connection Box
28
B-3.1.2 Ebike L: Remove Casing
28
B-3.1.3 Ebike L: Replace Saddle Motor
30
B-3.1.4 Ebike L: Install Power Supply Module for Ebike L (P/N 2018111-142)
31
B-3.1.5 Ebike L: Replace Lift Motor for Couch Adjustment
32
B-3.1.6 Ebike L: Replace Motor Control Unit
33
B-3.1.7 Ebike L Basic: Replace Control Panel
33
B-3.1.8 Ebike L External: Replace External Speed Indicator
33
B-4.Overview: Mechanical Design Ebike el
34
B-4.1 Overview: Disassembling Ebike el
35
B-4.1.1 Ebike EL: Remove Connection Box
35
B-4.1.2 Ebike EL: Remove Casing
35
B-4.1.3 Ebike EL: Replace Saddle Motor
37
B-4.1.4 Ebike EL: Install Power Supply Module for Ebike el (P/N 2018111-142)
38
B-4.1.5Ebike EL: Replace Lift Motors for Couch Adjustment
39
B-4.1.6 Ebike EL: Replace Motor Control Unit
40
B-4.1.7 Ebike el Basic: Replace Control Panel
41
B-4.1.8 Ebike el External: Replace External Speed Indicator
41
Part C. Electrical Design
43
C-1.1 Block Diagram Ebike Basic / Ebike Comfort for RPM Board 1
43
C-1.2 Block Diagram Ebike Basic / Ebike Comfort for RPM Board 2
44
C-1.3 Block Diagram Ebike L for RPM Board 1
45
C-1.4 Block Diagram Ebike L for RPM Board 2
46
C-1.5 Block Diagram Ebike el for RPM Board 1
47
C-1.6 Block Diagram Ebike el for RPM Board 2
48
C-2.1 Wiring Diagram Ebike Basic / Ebike Comfort
49
C-2.2 Wiring Diagram Ebike L
50
C-2.3 Wiring Diagram Ebike el
51
Overview: Pcbs Ebike
52
Overview: DIP Switch and Jumper Settings
54
Part D: Service Menu for Ebike Basic / Comfort / L / el
55
Part E: Drive Unit
71
E-1. Drive Unit - Mechanical Design
71
E-2. Troubleshooting and Repairs
73
E-2.1 Replace Strain Gauge
73
E-2.2 Replace PCB RPM
73
E-2.3 RPM Board : Replacement and Adjustment Procedure
74
Part F: Servicing Instructions
77
F-1. Spare Parts for Repair of Ebike
77
F-2. Spare Parts for Repair of Ebike L / Ebike el
78
F-3. Add-On "BP Module Ebike
79
F-4. Add-On "BP Module Ebike L" & "BP Module Ebike el
80
Appendix A: Interfaces
81
Digital Interfaces PORT 1 and PORT 3
81
Setup For: Digital ECG Unit
82
Digital Interface PORT 2: for SERVICE PURPOSES Only
83
Analog Interfaces with Digital Data Transfer
84
Appendix B: Spare Parts / Service Kits for Ebike
85
Appendix B.2: Spare Parts / Service Kits for Ebike L / Ebike el
96
Appendix C.1: Technical Specifications Ebike Basic / Ebike Comfort
109
Appendix C.2: Technical Specifications Ebike L
111
Appendix C.3: Technical Specifications Ebike el
112
