B: Mechanical Design
B.1.c Operating Controls and Connections of eBike EL
N
IB
P
eBike
6
5
9
4
7
8
3
2
1
11
12
13
10
14
15
16
17
18
19

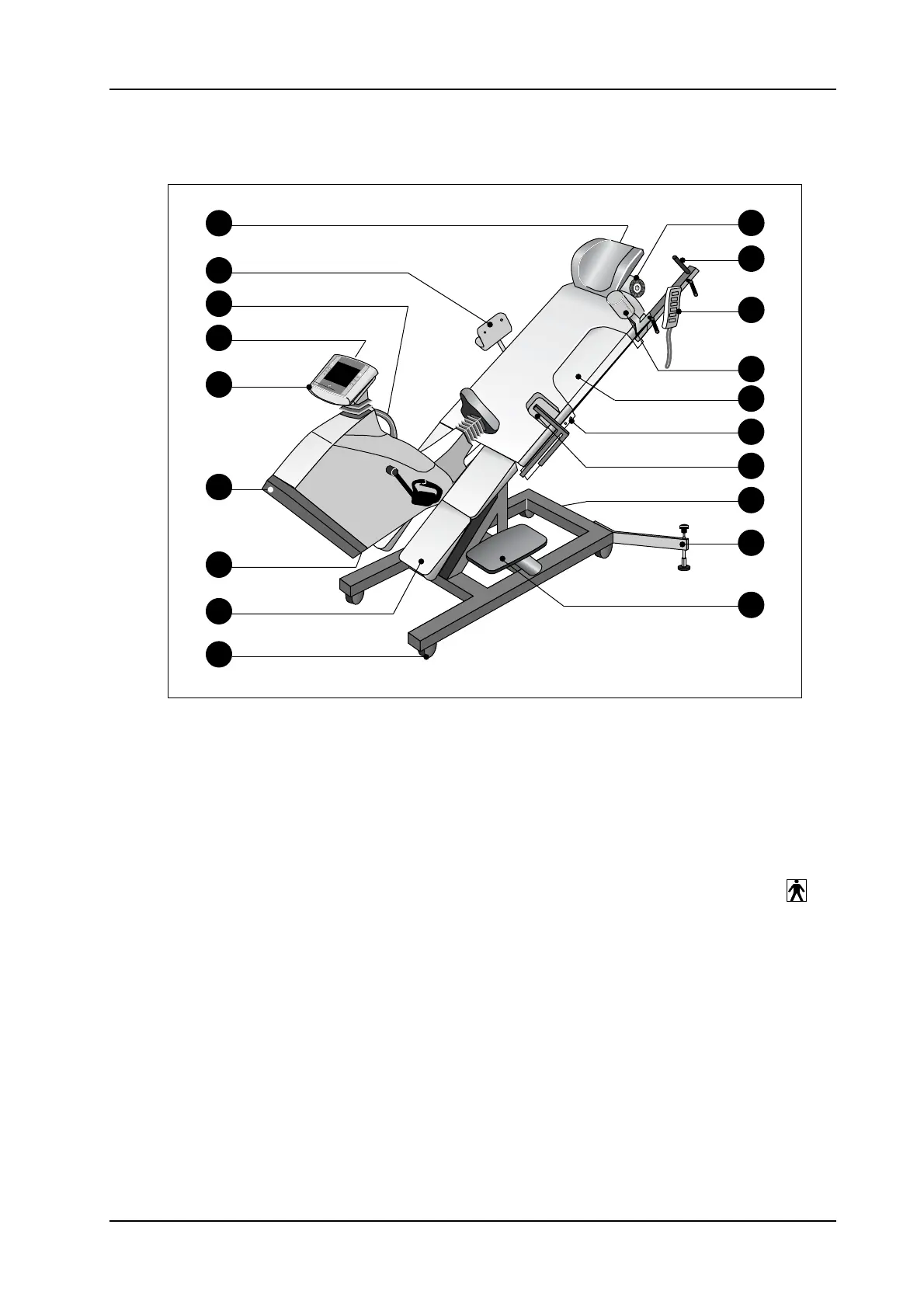

Figure B-3: Operating controls of bicycle ergometers eBike EL
1 Clamping lever for adjustment of the head
support, release button for drop section 14
2 Arm rest for blood pressure measurements
(on stress-echo beds with blood pressure
module only)
3 Handgrip (prop for mounting the bed and
dismounting)
4 Speed readout for patient
5 Control terminal
6 Power switch
7 Connector panel (power input, fuses, etc.)
8 Leg rest (option)
9 Castors, locking
10 Paper roll
11 Upper handgrip, adjustable
12 Remote control for adjustment of bed surface
and saddle
13 Armpit support, adjustable
14 Drop section
15 Connector for blood pressure cuff, on both
sides of the bed, type B applied part ( )
(on stress-echo beds with blood pressure
module only)
16 Hip support, adjustable
17 Nameplate
18 Outrigger
19 Footboard
