GE eBike Service Manual

- 12 - eBike, eBike L, eBike EL 2018112-003 Rev J
B: Mechanical Design
B.1.d Connections and Data Ports of the eBike
3
2
5
1b
6
1a
4
Underside of ergometer baseplate Underside of control terminal

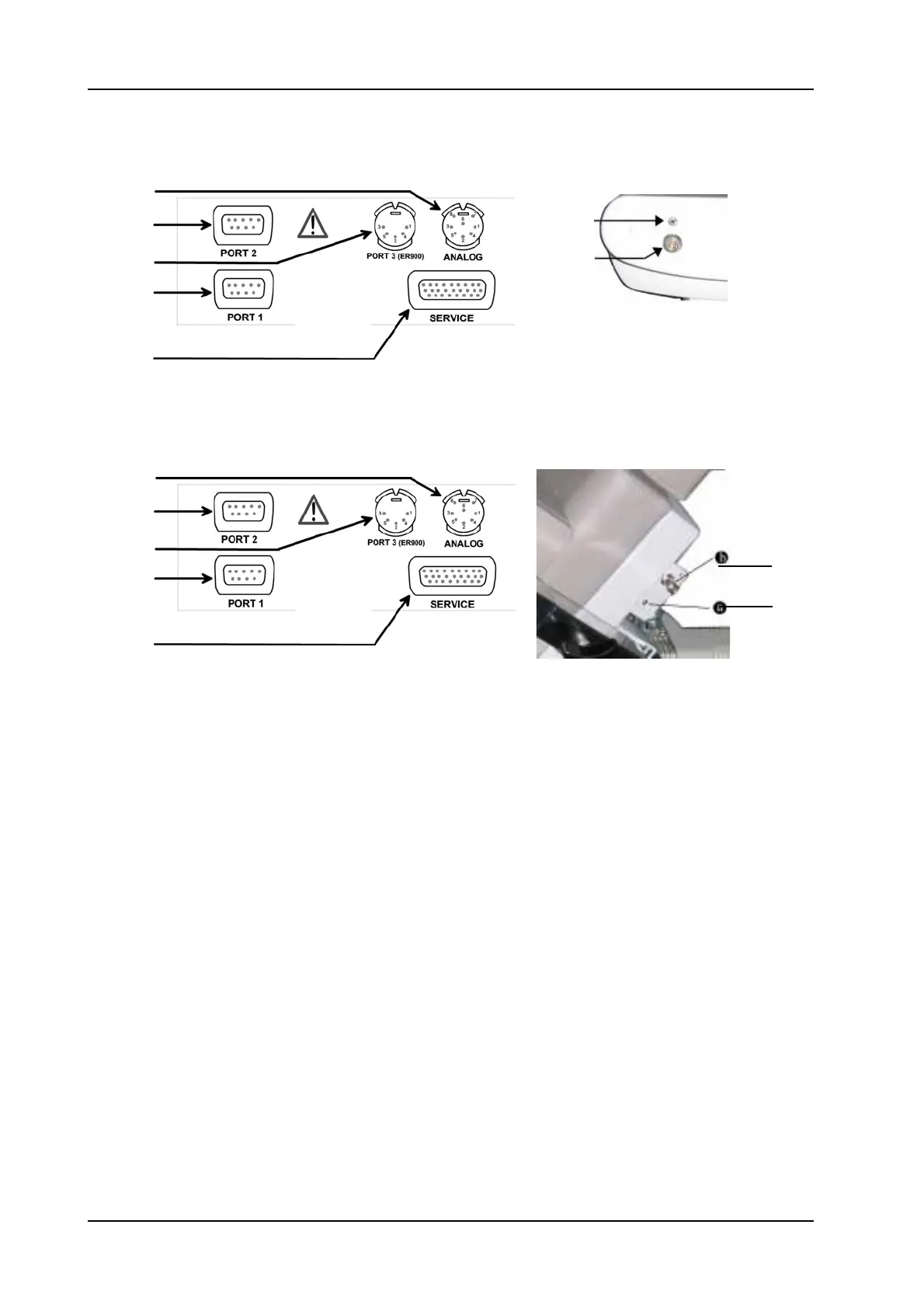

Figure B-2: Connections and Data Ports of the eBike
3
2
1b
1a
6
5
4
eBike L / EL connection panel eBike L / EL cuff connection
Figure B-3: Connections and data ports of systems eBike L and eBike EL
1a PORT 1: Digital RS232 interface (9-pin Sub-D) for data communication with PC and EKG
unit and output for remote start of the EKG unit.
1b PORT 3: Digital RS232 interface (5-pin DIN connector) for data communication with PC
and EKG unit.
2 PORT 2: Additional digital RS232 interface, e.g., for software updates
3 ANALOG: Analog I/O port (8-pin DIN connector) for analog control and analog data
communication.
4 SERVICE not used.
optional: NIBP module
5 Connector for jack plug of the microphone cable.
6 Connector for cuff tubing.
Note: For pin configurations, refer to Appendix A: Interfaces.
