GE eBike Service Manual

- 28 - eBike, eBike L, eBike EL 2018112-003 Rev J
B: Mechanical Design
B-4. Overview: Mechanical Design eBike EL

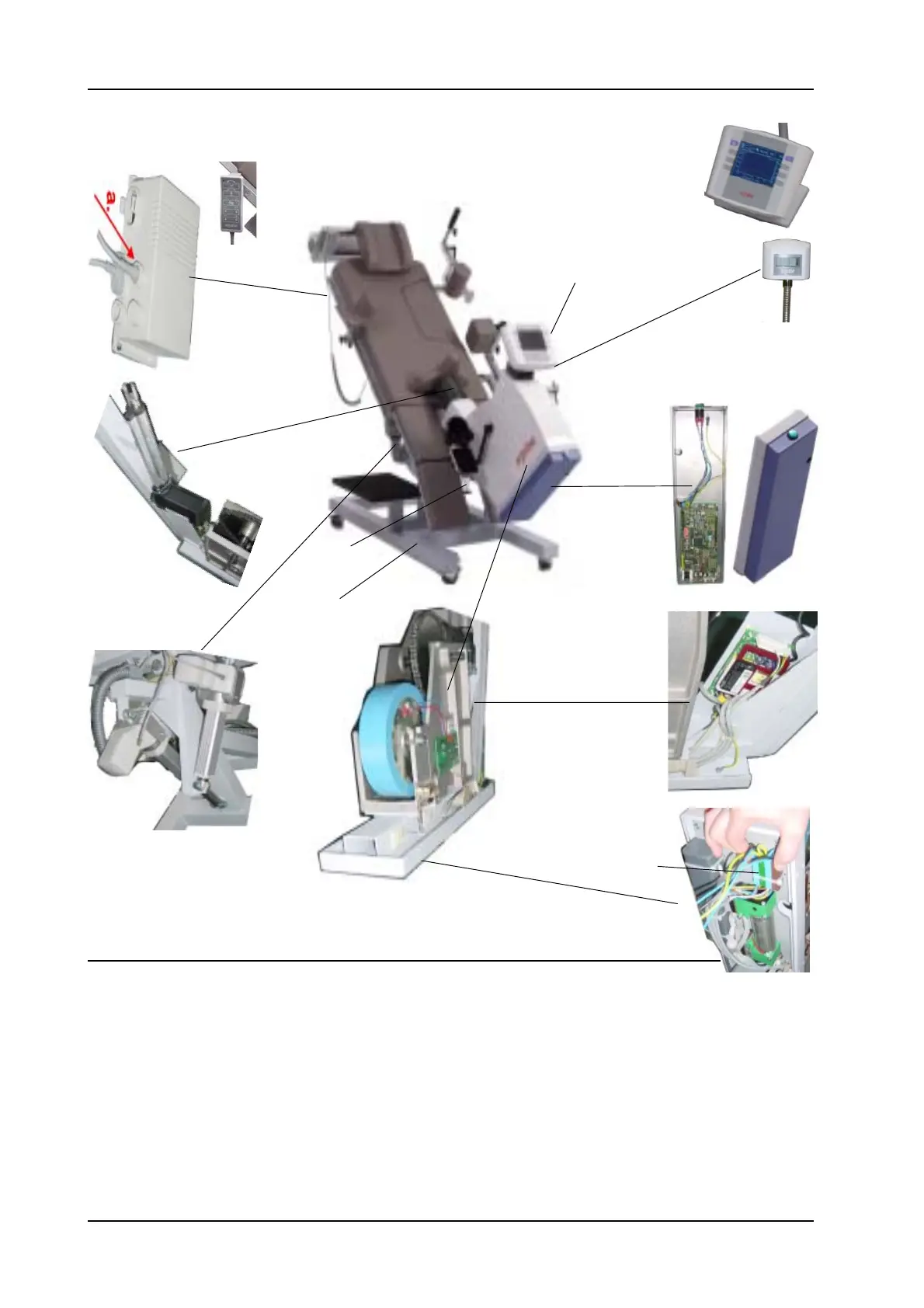

Figure B10: Mechanical Design Couch Ergometer eBike EL
Item No. Description
B10-1 Base of couch ergometer eBike EL
B10-2 Load unit, installed
B10-3 Connection box with interface board and ON/OFF switch
B10-4 Power supply unit installed
B10-5 Modular cable connection
B10-6 Blood pressure pump module for eBike EL (optional)
B10-7 Lift motors for couch adjustment (longitudinal and lateral tilt) for eBike EL
B10-8 Saddle motor for eBike EL
B10-9 Motor control with hand switch, 3 channels for eBike EL (1 - lift motor, longitudinal, 2 - lift motor, left
lateral tilt, 3 - saddle motor, 4 - remote control, 5 - mains connection)
B10-10 Control terminal for eBike EL (eBike EL basic only)
B10-11 External control terminal combined with additional speed indicator for patient (with eBike EL external
only)
B10-12 Outrigger eBike EL
B10-2
B10-1
B10-3
B10-4
B10-7
B10-8
B10-10
B10-11
B10-6
B10-5
B10-9
B10-12
