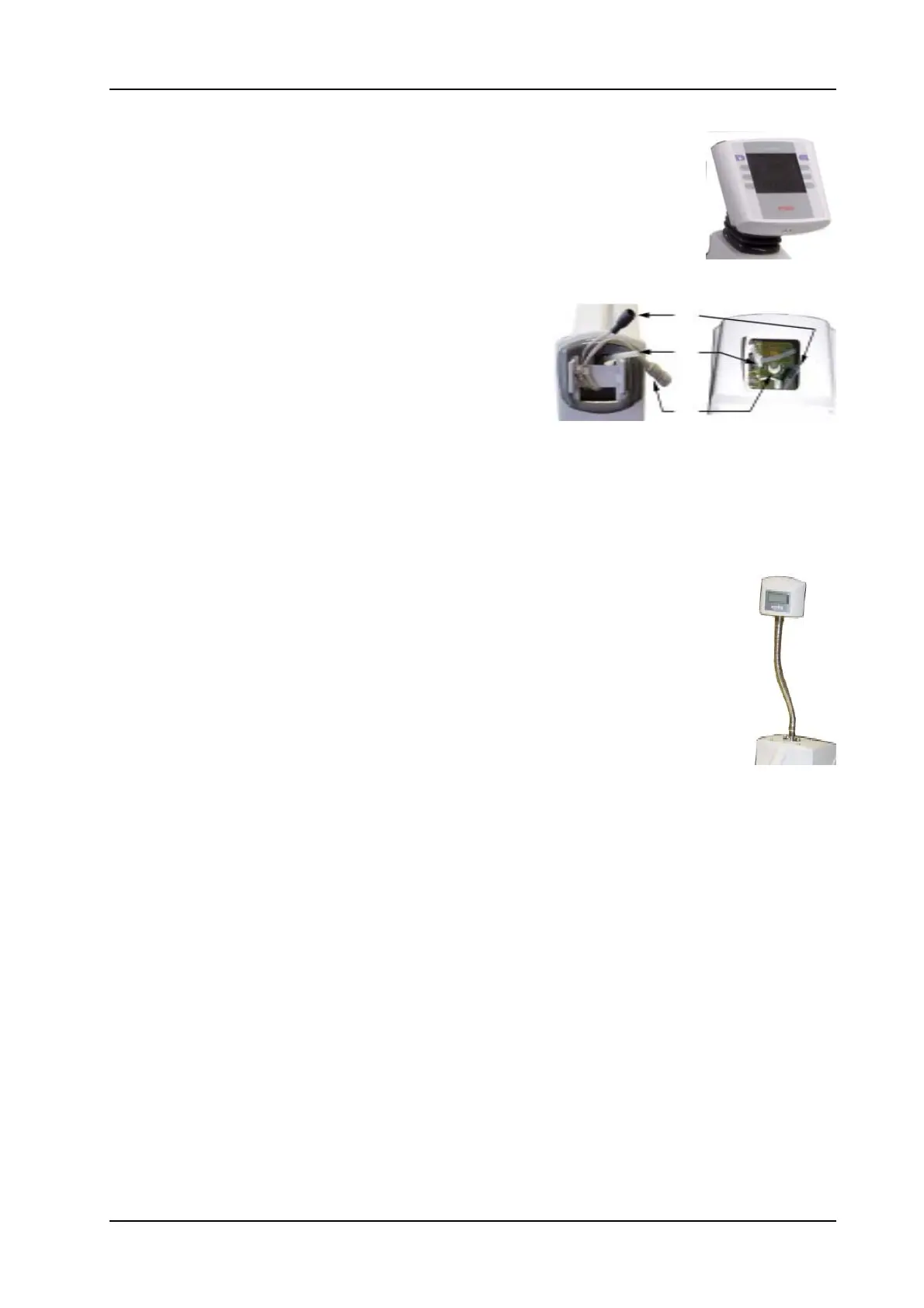

B-4.1.7 eBike EL Basic: Replace Control Panel
1. Remove both screws (a.) securing the control terminal.
2. Carefully lift the control terminal and push down the
bellows.
3. Disconnect the following cables:
b - data cable to control terminal (turn coupling ring
counterclockwise)
c - microphone cable (option)
d - air hose (option)
B-4.1.8 eBike EL External: Replace External Speed Indicator
Note: Before you can remove the external speed
indicator, you will have to lift the casing a little (see
section B-4.1.2, item 5b) for details.
1. Open connection box as per section B-4.1.1, item 4.
Disconnect connection cable for external speed
indicator from interface board.
2. Slightly lift casing as per section B-4.1.2, item 5b.
Open adjustable cable ties and disconnect connection
cable for external speed indicator.
3. Unscrew the screw securing the external speed
indicator and remove the speed indicator by pulling it
upward.
