GE eBike Service Manual

- 10 - eBike, eBike L, eBike EL 2018112-003 Rev J
B: Mechanical Design
B.1.b Operating Controls and Connections of eBike L
N
I
BP
eBike
6
5
9
4
7
8
3
2
1
11
11
10
12
13
14

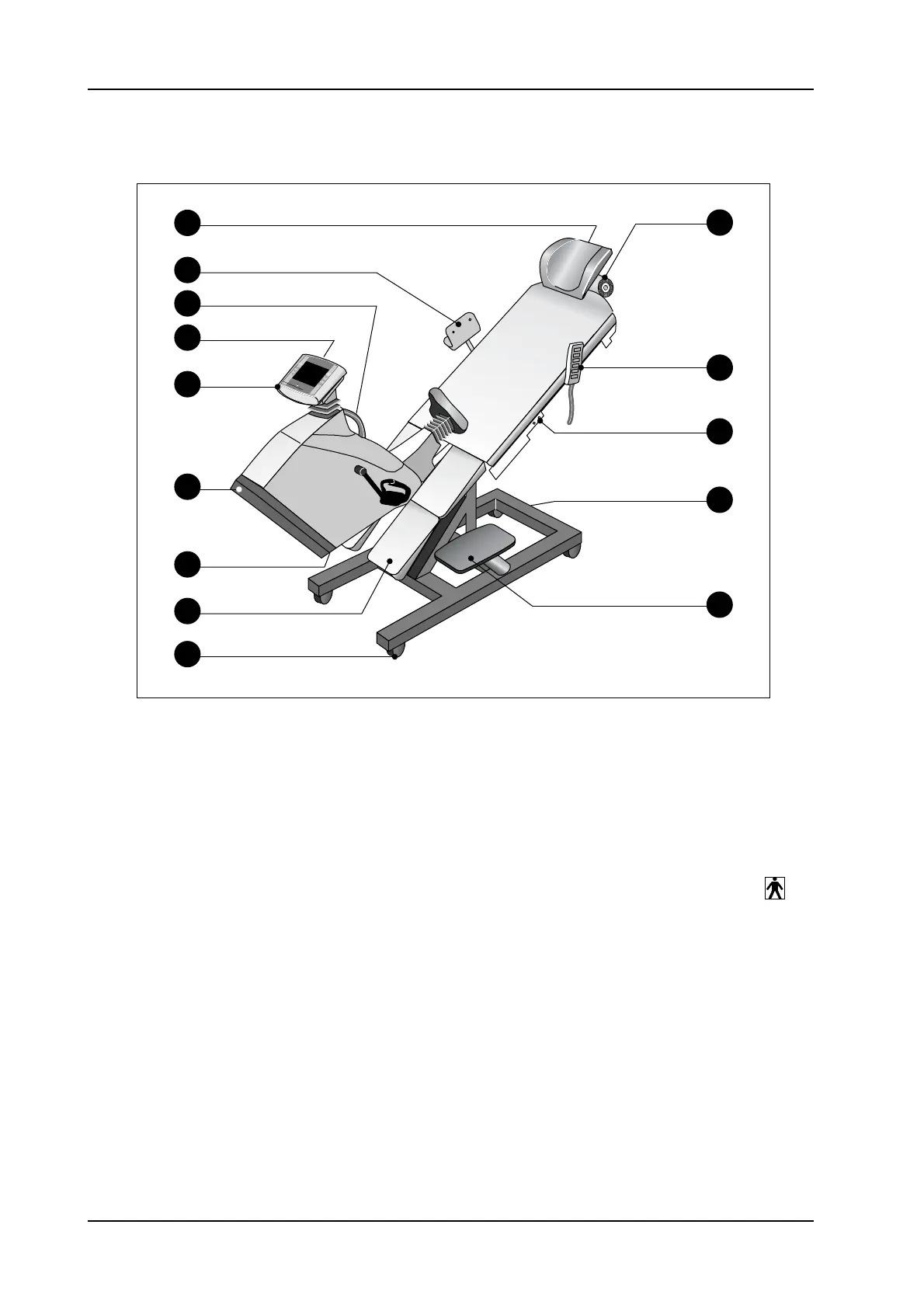

Figure B-2: Operating controls of bicycle ergometers eBike L
1 Clamping lever for adjustment of the head
support
2 Arm rest for blood pressure measurements
(right or left, on systems with blood pressure
module only)
3 Handgrip (prop for mounting the bed and
dismounting)
4 Speed readout for patient
5 Control terminal
6 Power switch
7 Connector panel (power input, fuses, etc.)
8 Leg rest (option)
9 Castors, locking
10 Paper roll
11 Remote control for adjustment of bed
surface and saddle
12 Connector for blood pressure cuff, on both
sides of the bed, type B applied part ( )
(on systems with blood pressure module
only)
13 Nameplate
14 Footboard
