Chapter 2: Inst
allation and wirin
g
56
EST iO64 and iO500 Tech
nical Refe
rence Manu
al

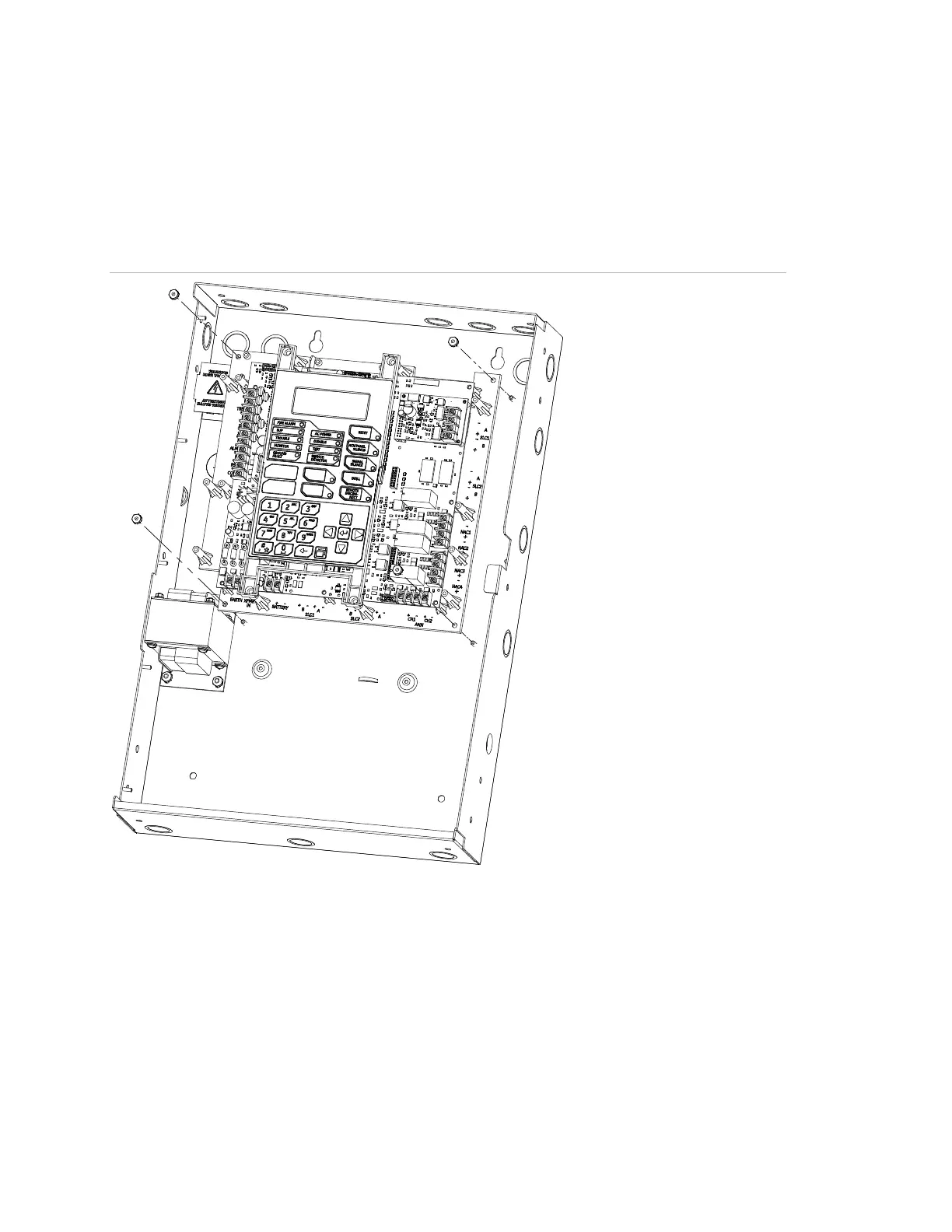

Panel electronics installation
The panel electronics must be install
ed in the cabinet box.
Note:
Wait until the possibility of construct
ion damage or vandalism
has passed before inst
alling the panel
electronics.
