2-4 MAC™ 5000 resting ECG analysis system Revision B
2024917-010
Equipment Overview: Connector Identification
Connector Identification
WARNING
LEAKAGE CURRENT – Keep leakage current within
acceptable limits when connecting auxiliary equipment
to this device.
Total system leakage current must not exceed 300
microamperes (United States) or 500 microamperes
(international).

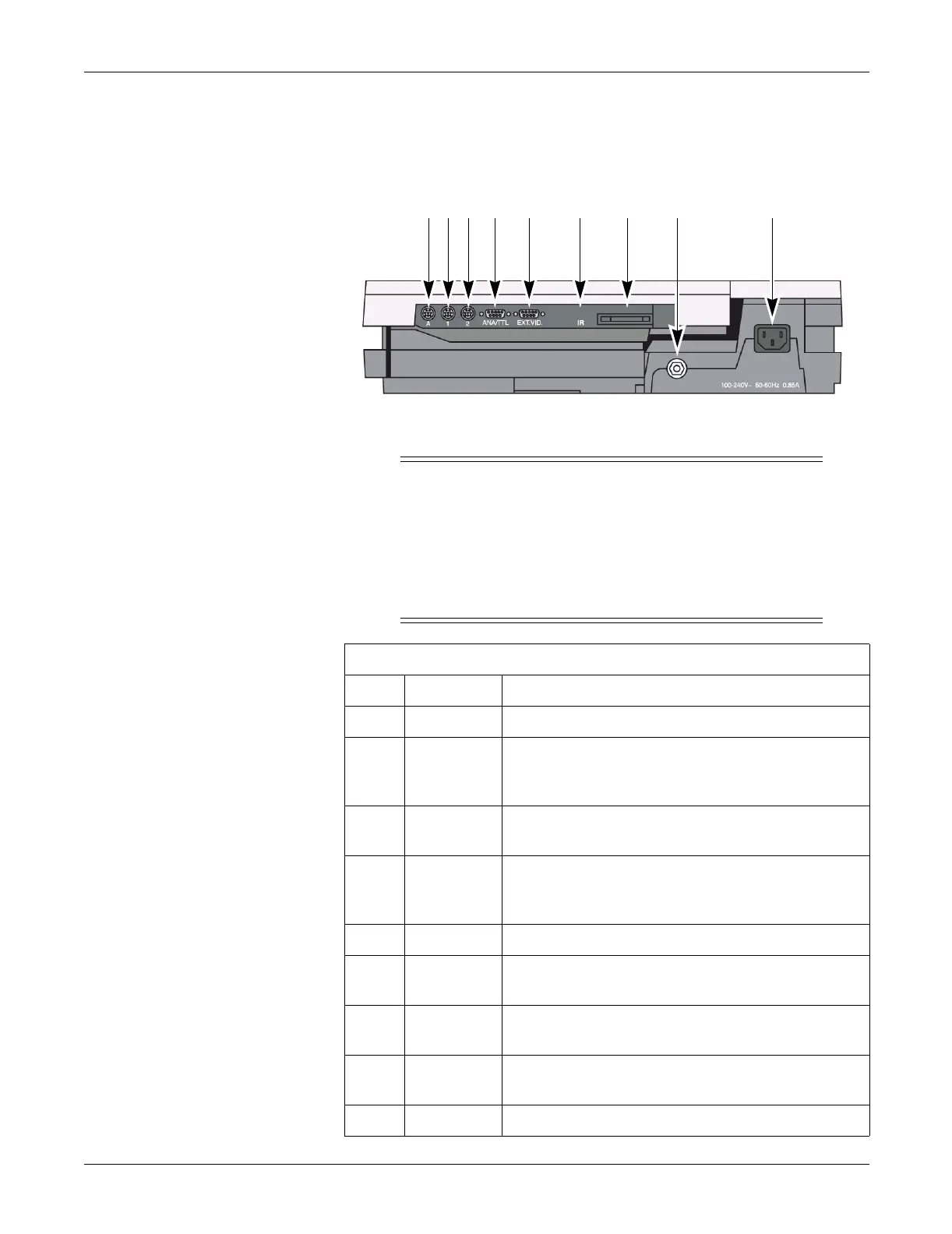

Table 5. Back Panel Connectors
Item Name Description
A A Connect an optional card reader or optional bar code reader
B 1 Connect a GE KISS pump. (If system has the stress option,
connect a T2000 or external blood pressure device cable to this
port.)
C 2 Connect a local transmission cable, serial line, modem, or client
bridge (wireless option).
D ANA/TTL Connect a device requiring analog data or TTL trigger
(Ultrasound, stress echo, ergometer, analog treadmill, blood
pressure units)
E EXT.VID. Connect an external video display.
F IR Point at a MAC 5000 or MUSE system’s IR transceiver to
transmit or receive ECG data.
G card slot Insert the SD (Secure Digital) card into this slot to update
software.
H ground lug Connect non-grounded peripheral devices to ensure
equipotential.
I main AC power Insert the main AC power cable.
ABC D E F G H I
