Revision B
MAC
™
5000 resting ECG
analysis system
4-9
2024917-010
Maintenance:
Disassembly Guidelines
4.
Remove P2 from J2 on the power supply assembly and the ground
wire connection from the power supply chassis.
Reassembly
Reassemble the power su
pply reversing the step
s for removal. Before
replacing the screws, ensure that the
ground wire is routed
through the
notch in the plastic and not pinched.

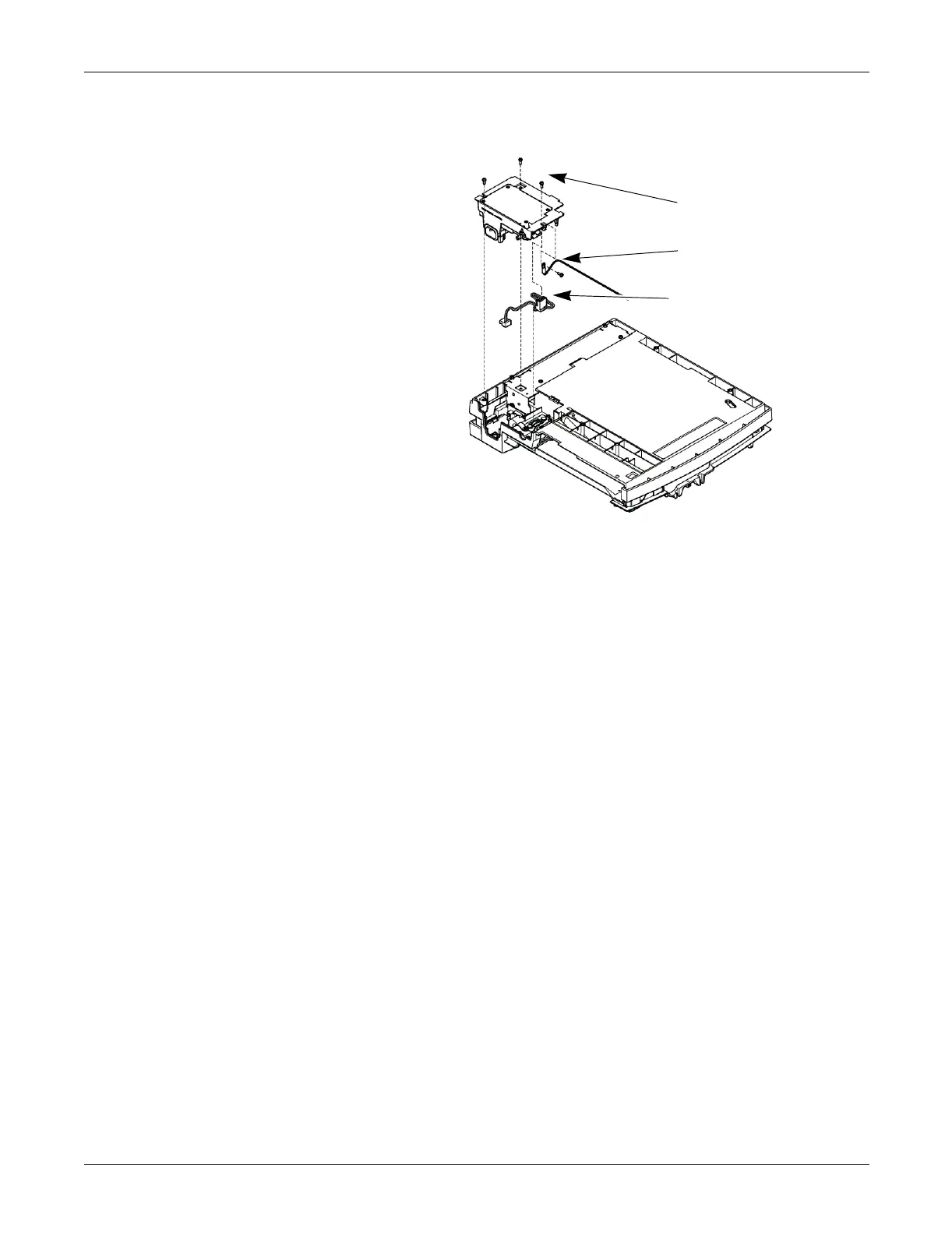

Ground Wire
Screws (3)
Wiring Harness
40A
84
86
