GE MAC 5000 Service Manual

4-10 MAC™ 5000 resting ECG analysis system Revision B
2024917-010
Maintenance: Disassembly Guidelines
Top Cover
Removal
NOTE
It is not necessary to remove the Power Supply prior to removing the
top cover.
NOTE
A #10 TORX driver is required for disassembly and assembly of the
top cover.
1. Remove the battery.

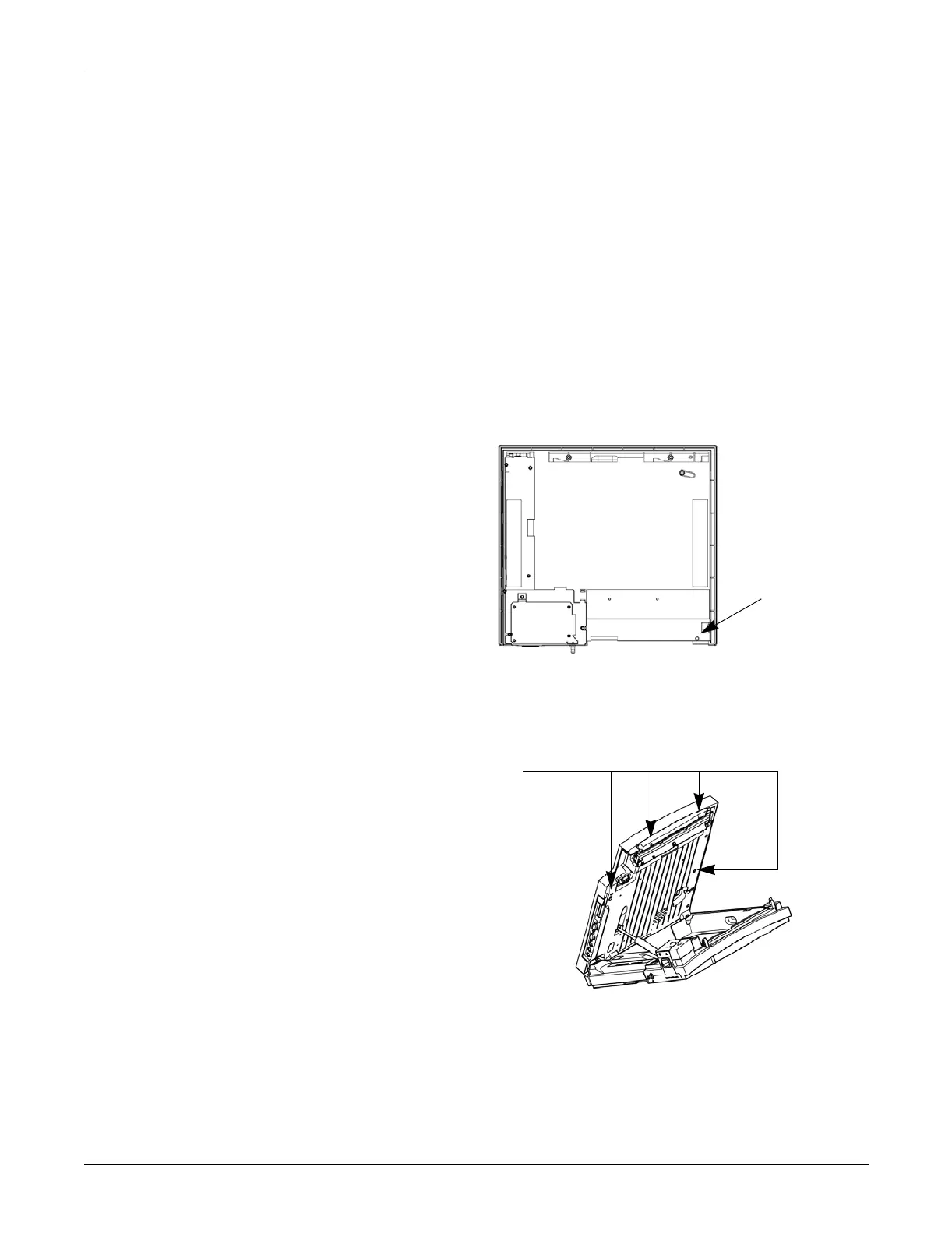

2. Turn the unit over so the bottom side is up and remove the TORX
screw through the hole on the right rear corner of the unit. (This
screw is only visible and accessible with the battery removed.)
3. Turn the unit right side up and press the internal access button and
raise the top of the unit.
4. Remove four (4) TORX screws.
5. Lower the top of the unit and lock in place.
6. Raise the display to the vertical position.
41A
TORX
screw
35A
Four (4) TORX screws
