Recording an ECG or Rhythm

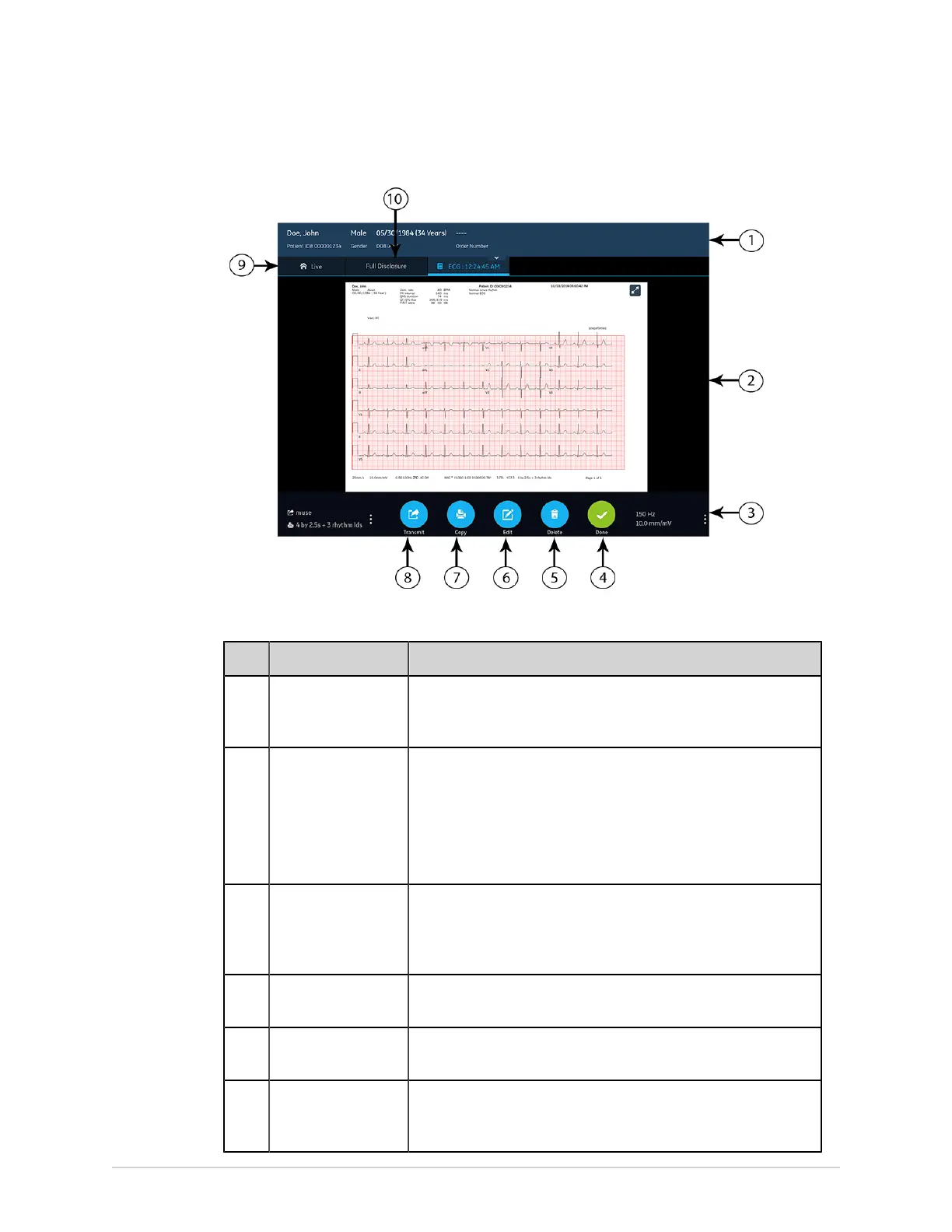

Table 17: ECG Tab Displaying an ECG Patient Report for Review
Item Name Description
1 Patient Information
Banner
Displays patient information such as patient first name, last name,
gender, age, and so on. Select anywhere in the Patient Information
banner to edit patient information for the patient report.
2 ECG patient report Displays the ECG patient report. If a patient report contains multiple
pages, a part of another page is displayed on the right-side of the
screen. Select the left and right arrows on the screen to navigate
from one page to another.
For more information on the report formats and the standard layout
of the ECG patient report, see ECG Report Formats on page 130.
3 Gain and Filter To change the waveform gain or filter, select anywhere around the
ellipsis icon next to Gain and Filter and select a new value from the
expanded list. The patient report is refreshed with the selected gain
and filter.
4 Done icon Closes the patient report after completing your tasks. For more
information, see Close a Patient Report on page 67.
5 Delete icon Deletes the patient report. For more information, see Delete a
Patient Report on page 66.
6 Edit icon Edits patient information for the patient report. For more
information, see Edit Patient Information in a Patient Report on page
65.
2088531-370-2 MAC VU360
™
Resting ECG Analysis System 55
