Chapter 2 - Power, Ground & Interconnect Cables Page 105
2 – Install Power
Note: The USB cable of GSCB is reserved, please tie it with tie-wrap.

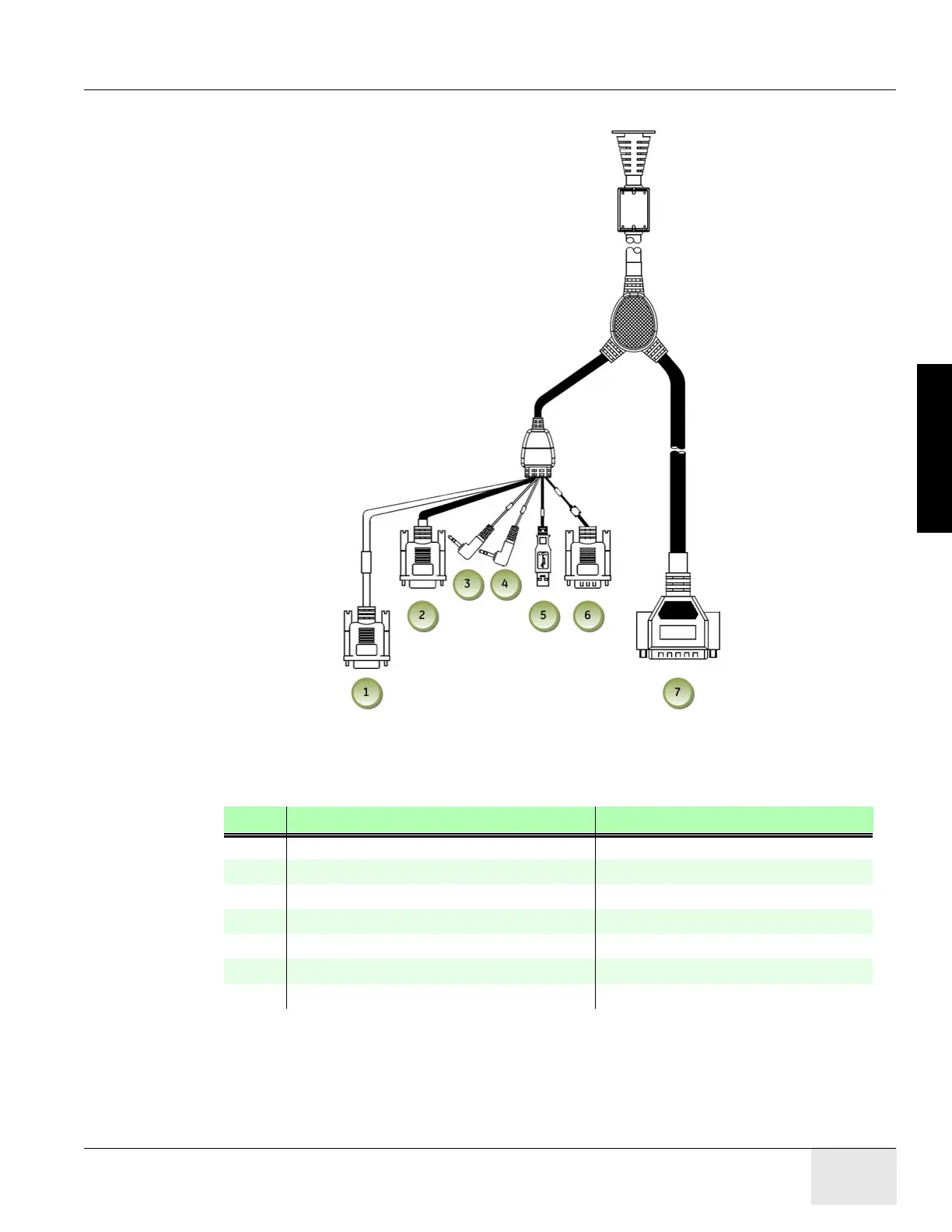

Figure 2-5 GSCB and Connection
ITEM DESCRIPTION
1 GSCB - Black DB-9 (Female) Connector Host Computer DIP
2 GSCB - Gray DB-9 (Female) Connector Host Computer RS232
3 GSCB - Green Audio Connector Host Computer Audio Out (Green)
4 GSCB - Blue Audio Connector Host Computer Audio In (Blue)
5 GSCB - USB Connector Reserved
6 GSCB - Black DB-9 (Male) Connector AC Box J56
7 GSCB - Black DB-25 (Male) Connector TGP Gantry Cable
Table 2-5 GSCB Cables
