GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Chapter 1 - Position Subsystems Page 83
1 – Pos. Subsystems
Section 12.0 Rear Entry Cable Box
A rear entry cable box (B7850RC) is used when the cables to the gantry cannot be brought up inside
the gantry base.The box is not supplied with the system and must be ordered separately.
1.) Attach the rear entry cable box frame to the gantry base using four (4) screws that are shipped
with the kit. See Figure 1-64. The assembly can be made to fit floor entrance conduit or surface
floor duct.

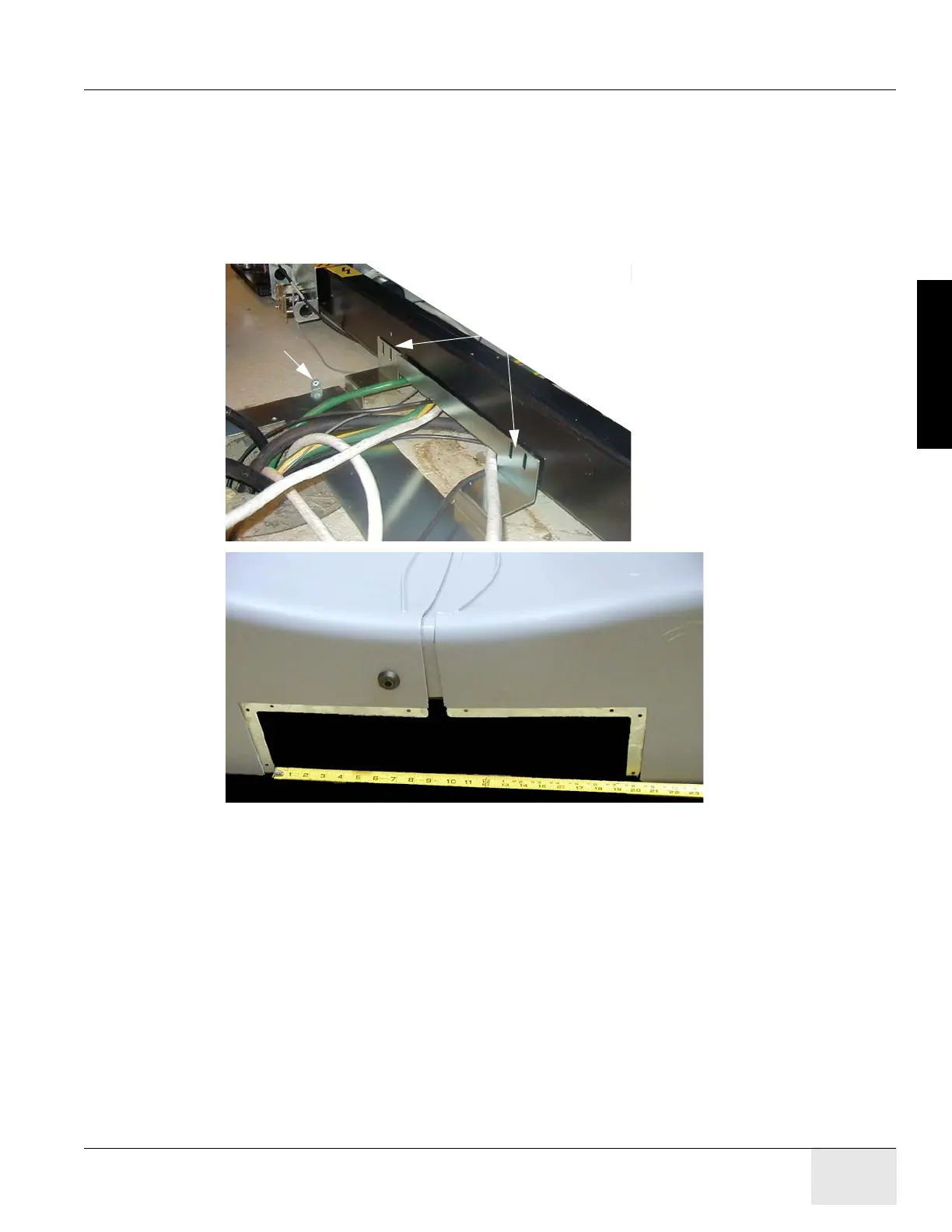

Figure 1-64 Rear Entry Cable Box
2.) There are three pairs of spacers shipped with this cover. Select the pair that is most
appropriate for this site, based on the hardware.
- Solid metal
- Precut L-shaped metal
- Solid plastic - Can be cut
Rear Entry
Cable Box frame
Attach to frame using
four (4) 4mm screws.
Rear Entry Cable Box Cover
To Next Page
