GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Page 76 Section 11.0 - Drill the Anchor Holes
11.6 Lite Table Redundant Anchor Holes
The table requires a minimum of four (4) anchors, one (1) in each corner of table base.
Note: If any obstruction is found under the proper anchoring position, stop drilling and use the alternate
position (see Figure 1-55). Use the alternate positions only when the case its corresponding proper
position is not possible.

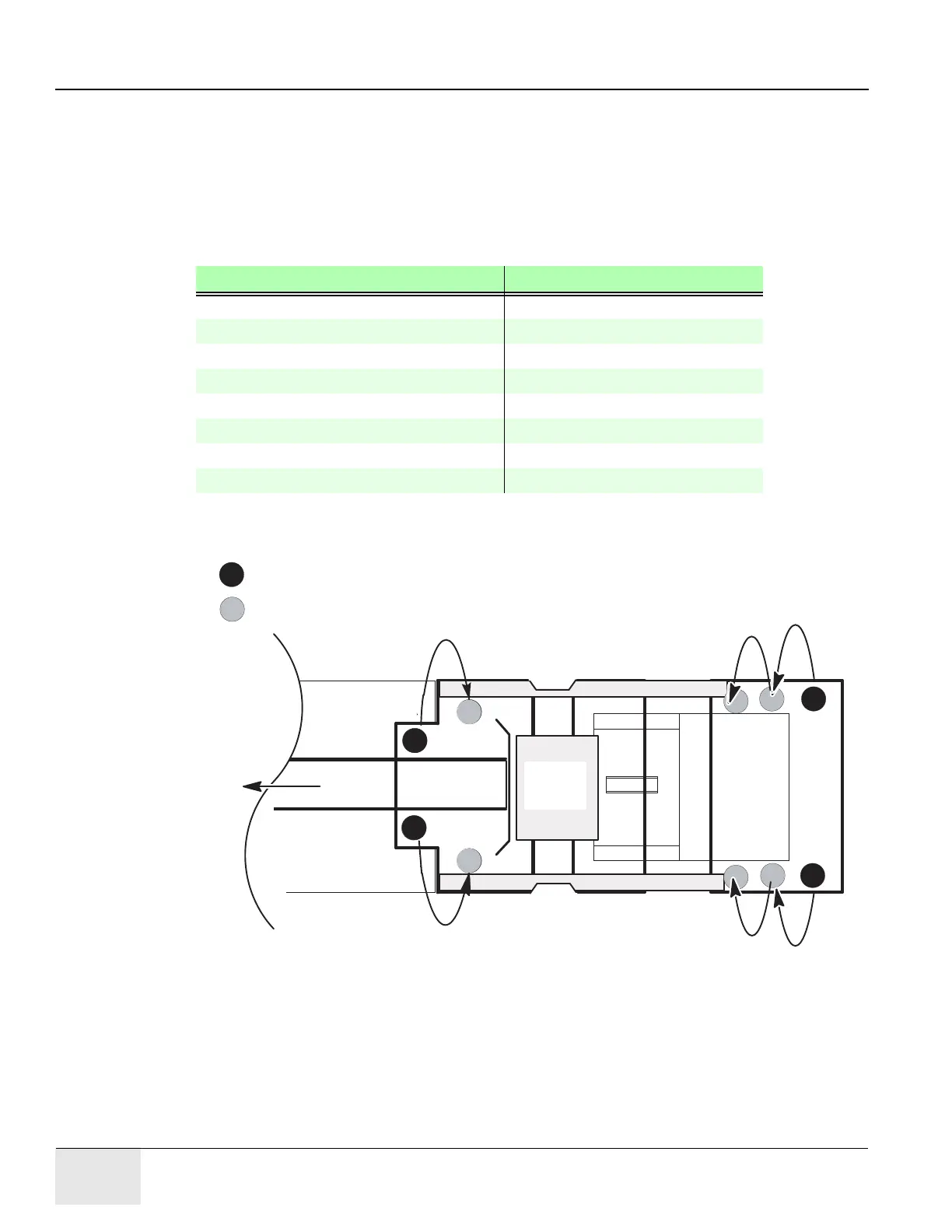

Figure 1-55 Lite Table Anchor Positions (Proper and Alternative)
MOUNTING REQUIREMENTS ANCHOR P/N 2106573-3
Minimum Floor Thickness: 110 mm (4-1/3 in.)
Recommended Drilling Depth: 100 mm (4 in.)
Average Anchor Embedment: 90 mm (3-½ in.)
Minimum Anchor Embedment: 80 mm (3 in.)
Available Alternate Anchor Locations: Yes
Shipped Anchor Size: 140 mm (5-½ in.)
Alternate Anchoring Methods: Yes (see notes, above)
FLoor Levelness Requirement: 6 mm (1/4 in.) over 3 m (10 ft.)
Table 1-5 Lite Table Mounting Requirements
PROPER ANCHOR POSITION
ALTERNATIVE ANCHOR POSITION
TABLE
TABLE
DRIVER
TO GANTRY
