GE COMPANY
DIRECTION 5472001-1EN, REVISION 6OPTIMA CT680 SERIES AND OPTIMA CT670 INSTALLATION MANUAL
Page 78 Section 11.0 - Drill the Anchor Holes

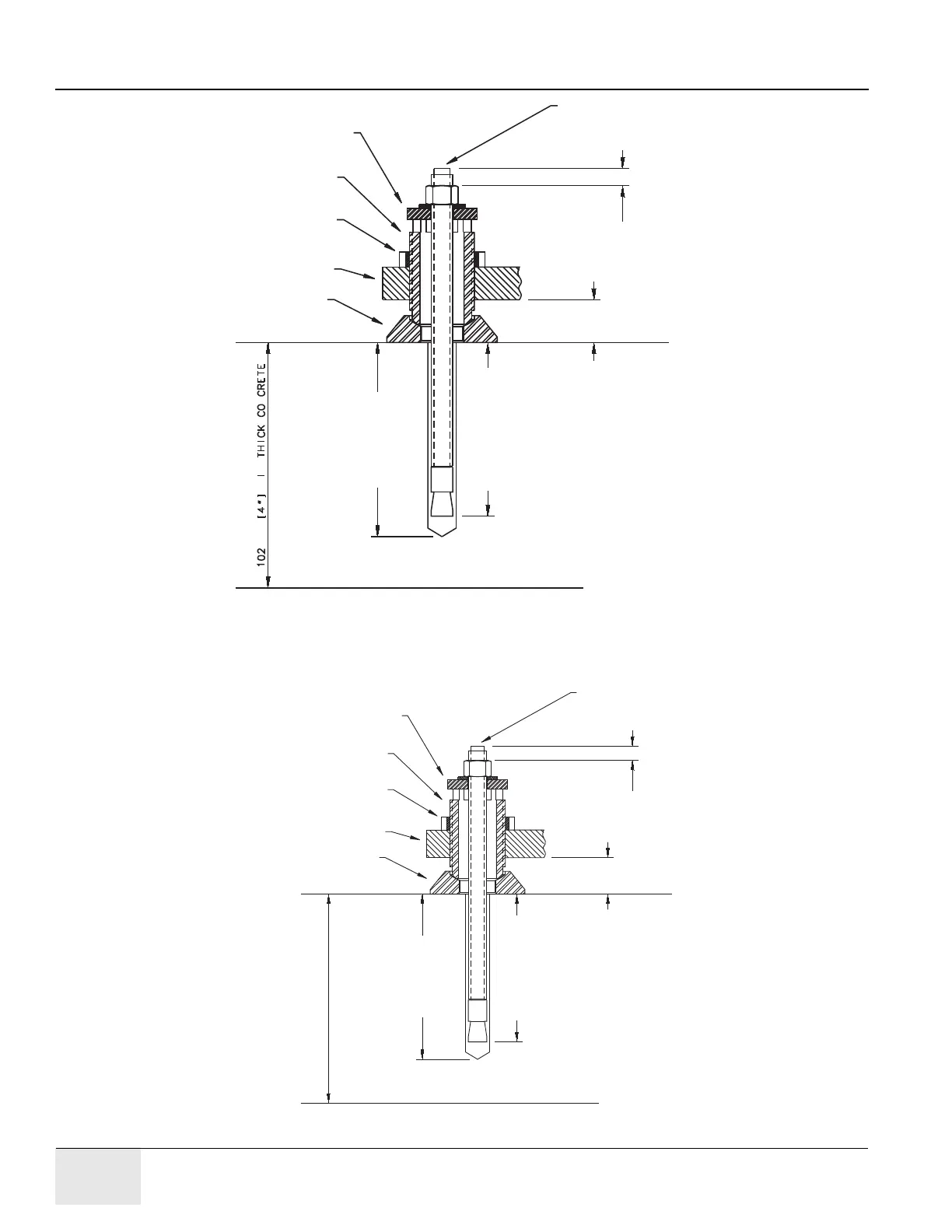

Figure 1-57 Gantry and Table Anchor Assembly with 8-inch Anchor (P/N 2106573)
Figure 1-58 Gantry and Table Anchor Assembly with 7-inch Anchor (P/N 5487992-2)
MM
M
N
N
GANTRY STATIONARY BASE
OR TABLE BASE
25 MM [1” ] for TBALE (Ref.)
13 MM [0.5” ] for GANTRY (Ref.)
ANCHOR WASHER
LEVELING SCREW
ADJUSTER LOCK RING
LEVELING PAD
ANCHOR BOLT
(P/N 2106573)
33 MM [1.30” ] MAX AFTER PROPER TORQUE
24 MM [0.98” ] MIN AFTER PROPER TORQUE
78 MM [3.07 “ ] MIN
91 MM [3.58 “ ]
25 MM [1” ] MAX AFTER P ROPER TORQUE
13 MM [0.5” ] MIN AFTER PROPER TORQUE
25 MM [1” ] for TBALE (Ref.)
13 MM [0.5” ] for GANTRY (Ref.)
ANCHOR BOLT
(P/N 5487992-2)
85 MM [3.35 “ ]
102 MM [4 “ ] MIIN THICK CONCRETE
ANCHOR WASHER
LEVELING SCREW
ADJUSTER LOCK RING
GANTRY STATIONARY BASE
OR TABLE BASE
LEVELING PAD
75 MM [2.95” ]
