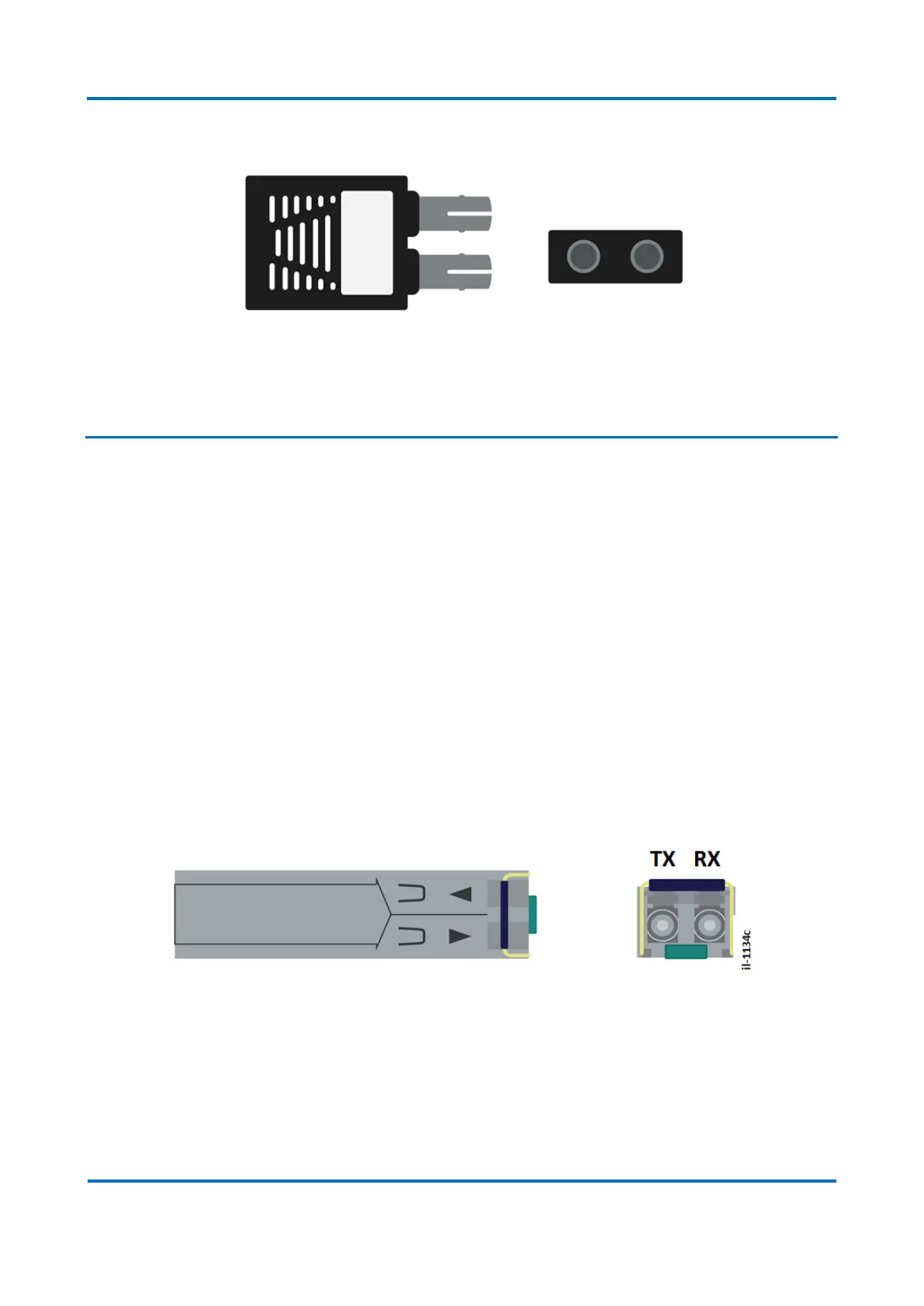

Figure 92: FDDI transceiver
4.3 SFP Pluggable Transceiver
Reason Switches can operate with a SFP transceiver (Small Form-factor Pluggable)
which can be inserted and removed safely while the switch is powered and
operating. However, when inserting or removing the SFP transceiver, there are
precautions that should be taken:
Be sure that the protection covers are always mounted on the SFP
transceiver, unless a user is on the process of inserting or removing of the
SFP module;
Be sure that the user has taken all possible precautions in relation to the
electrostatic charge accumulation (ESD);
Disconnect all cables from the SFP module before inserting or removing the
module;
Use only transceivers certified by GE Reason.
Figure 93: SFP transceiver
Before removing the SFP transceiver, take the wires off and insert the protective
cover against dust. The SFP transceivers should be removed pulling the safety catch
located on the top of the transceiver. Grasp the metal bail latch and gently pull
outwards to unlock and remove the module.
