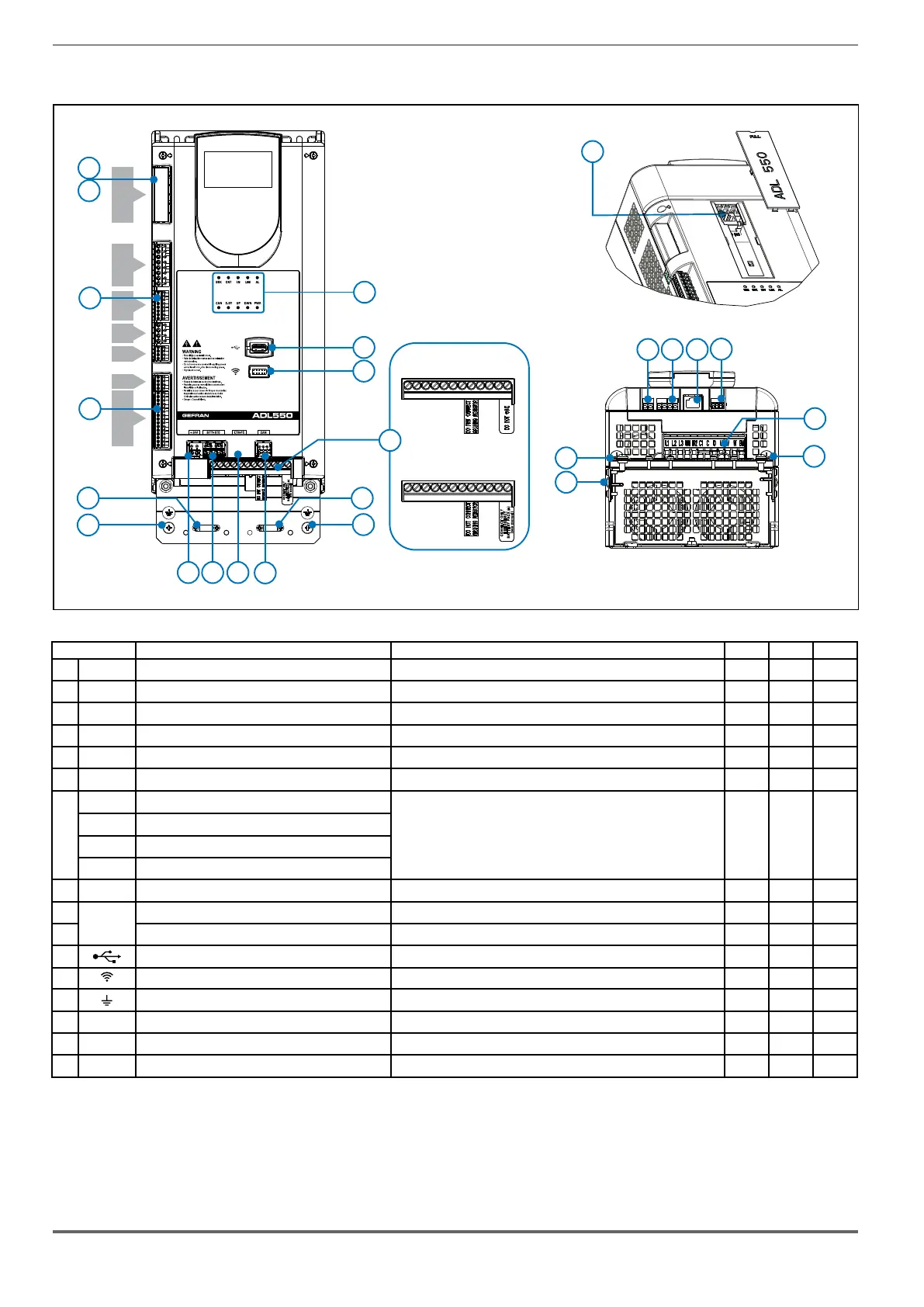

26 ADL500 • Quick installation guide - Specifications and connection
13
14
09
07
06
10
13
14
0302 04
02 03 04
13
11
12
05
05
T3
T1
T2
XE
EXP
XER
Led
15
13
01
08
T4
L1
L3
L2
BR1
BR2
C1
D
C
U
V
W
EM
ADL510/530/550-EMS
L1
L3
L2
BR1
BR2
C1
D
C
U
V
W
ADL510/530/550
01
CONNECT ONLY
EMERGENCY
BATTERY PACK (+)
(see manual)
Ref. Description Manual section ADL510 ADL530 ADL550
(01) Power terminals "7.2 Power section" on page 27 Yes Yes Yes
(02) +24V Input + 24 Vdc external "7.3.4 +24V supply connection" on page 38 - - Yes
(03) SFTY-STO STO Safety terminals "7.3.5 Safety STO connection (SFTY-STO)" on page 38 - - Yes
(04) ETH-PC RJ45 terminal, Ethernet port (100 Mbit/s) "7.4 ETH-PC Ethernet Interface (RJ45 connector)" on page 39 Yes Yes Yes
(05) CAN CANopen 417 Lift terminals "7.5 CAN interface" on page 40 - Yes Yes
(06) XE/XER Encoder terminals "7.3.3 Feedback Connection" on page 31 Yes Yes Yes
(07)
T1 Digital input terminal
"7.3.2 I/O and Relays connection" on page 30 Yes Yes Yes
T2 Analogue input terminal and motor PTC
T3 Relay output terminal
T4 Digital and +24V input enable / reference terminal
(08) RJ45 terminal, KB-ADL500 optional keypad "7.6 Optional Keypad interface (RJ45 connector)" on page 41 Yes Yes Yes
(09)
EXP
Optional EXP-IO1-ADL500 card terminals "A.1.2 - Optional card EXP-IO1-ADL500" on page 88 - - Yes
(10) Optional EXP-DCP-ADL500 card terminals "A.1.3 - Optional card EXP-DCP-ADL500" on page 89 - - Yes
(11)
USB 2.0 port "7.7 USB port for data storage" on page 41 - Yes Yes
(12)
Wi-Fi Port "7.8 Wi-Fi module port" on page 41 - Yes Yes
(13)
Earth terminals "7.2 Power section" on page 27 Yes Yes Yes
(14) Omega power shield connection "7.2.3 Connection of shielding (recommended)" on page 27 Yes Yes Yes
(15) Omega adjustment shield connection "7.3.3 Feedback Connection" on page 31 Yes Yes Yes
Led Operation and diagnostics LEDs "7.3.6 Led" on page 38 Yes Yes Yes
