8 ADL500 • Quick installation guide - Specifications and connection
2 - Introduction to the product
The ADL500 is the result of GEFRAN’s experience in the civil lift engineering sector, gained from its commitment
to working in close partnership with leading operators in the sector to develop technical solutions and application
programs.
The ADL500 integrates the most complete and advanced lift inverter technology, for maximum synergy with the full
This drive is designed to power loads such as asynchronous or synchronous permanent magnet (brushless) motors,
for applications in the lift sector.
This compact drive is suitable for installation in cabinets for roomless applications.
ADL550
features, with an optional internal board;
ADL530
troubleshooting features;
ADL510 -
mised for open loop control;

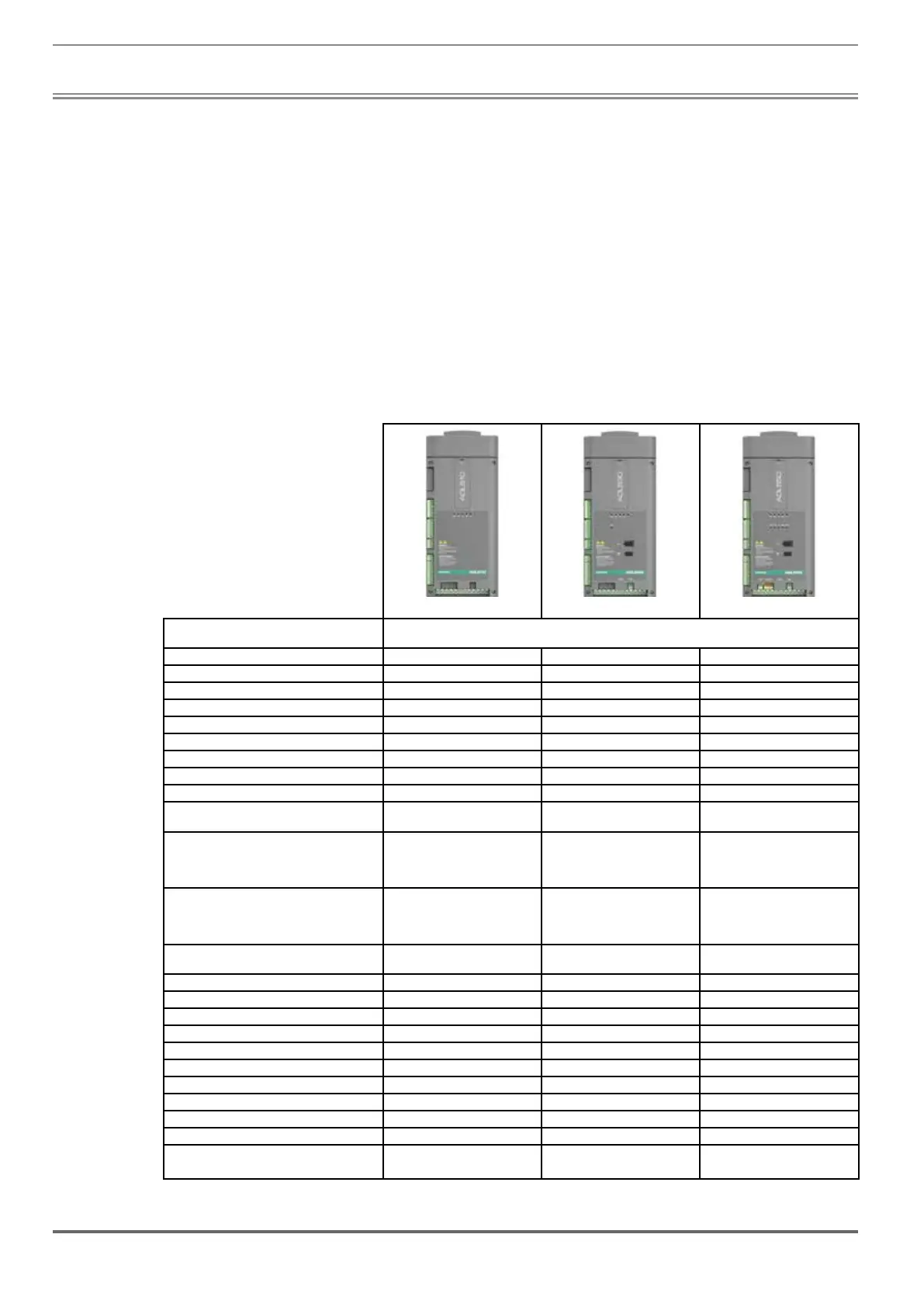

ADL510 ADL530 ADL550
Control mode V/f open loop and closed loop
Field oriented control open loop (SLS) and closed loop (FOC)
Motor Type Asynchronous Asynchronous, Synchronous Asynchronous, Synchronous
Max Output Frequency 300Hz 300Hz 300Hz
Switching Frequency 10kHz (default) 10kHz (default) 10kHz (default)
Overload 183% x 10 s 183% x 10 s 183% x 10 s / 200% x 2 s
Braking Unit Integrated Integrated Integrated
EMI filter Integrated (ADL510-...-F models) Integrated (ADL530-...-F models) Integrated (ADL550-...-F models)
Choke - Integrated above 22kW Integrated above 22kW
Marks CE, UL CE, UL CE, UL
Power Range 4 ... 15kW 4 ... 15kW 4 ... 15kW
Input Voltage Range 3 ph 400 - 480V
ac, 50/60Hz 3 ph 230-380-400-460-480Vac,
50/60Hz
3 ph 230-380-400-460-480Vac,
50/60Hz
I/O 8 digital inputs + 1 enable
+ 1 analog input
+ 4 relay outputs
8 digital inputs + 1 enable
+ 1 analog input
+4 relay outputs + 1 PTC input
8 digital inputs + 1 enable
+ 1 analog input
+ 2 Fast (Freeze) inputs
+ 4 relay outputs + 1 PTC input
Optional expansion cards:
• I/O (EXP-IO1-ADL500) card (*)
• DCP3-DCP4 Protocols card (EXP-DCP-
ADL500) (*)
-
-
-
-
Yes (4 digit. input + 2 digit. output)
Yes
Encoder TTL, HTL
+ Repetition (Incremental)
TTL, HTL, ENDAT, SINCOS, BISS,
SSI + Repetition (Inc. and Abs.)
TTL, HTL, ENDAT, SINCOS, BISS,
SSI + Repetition (Inc. and Abs.)
USB 2.0 port - Yes Yes
Ethernet port (100 Mbit/s) Yes Yes Yes
Wi-Fi port - Yes Yes
Wi-Fi external module (in preparation) - Yes (optional) Yes (optional)
CANopen Lift 417 - Yes Yes
Safety STO (SIL3 – PLe) - - Yes
Safe Brake Test (SBT) - - Yes
+ 24
Vdc External - - Yes
KB-ADL500 programming keypad Yes (optional) Yes (optional) Yes (optional)
Removable terminals (Regulation section) Yes Yes Yes
Diagnostic Leds BRK, CNT, EN, LIM, AL BRK, CNT, EN, LIM, AL, CAN BRK, CNT, EN, LIM, AL, CAN, S-BY,
UP, DWN, PWR
(*) Only one of the two boards can be installed.
