ADV200 • Functions description and parameters list 105
22–FUNCTIONS
22.1–FUNCTIONS/SPEEDRATIO
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.1.1 3000Digspeedratio perc INT16 16/32 100 CALCI CALCI ERW FVS

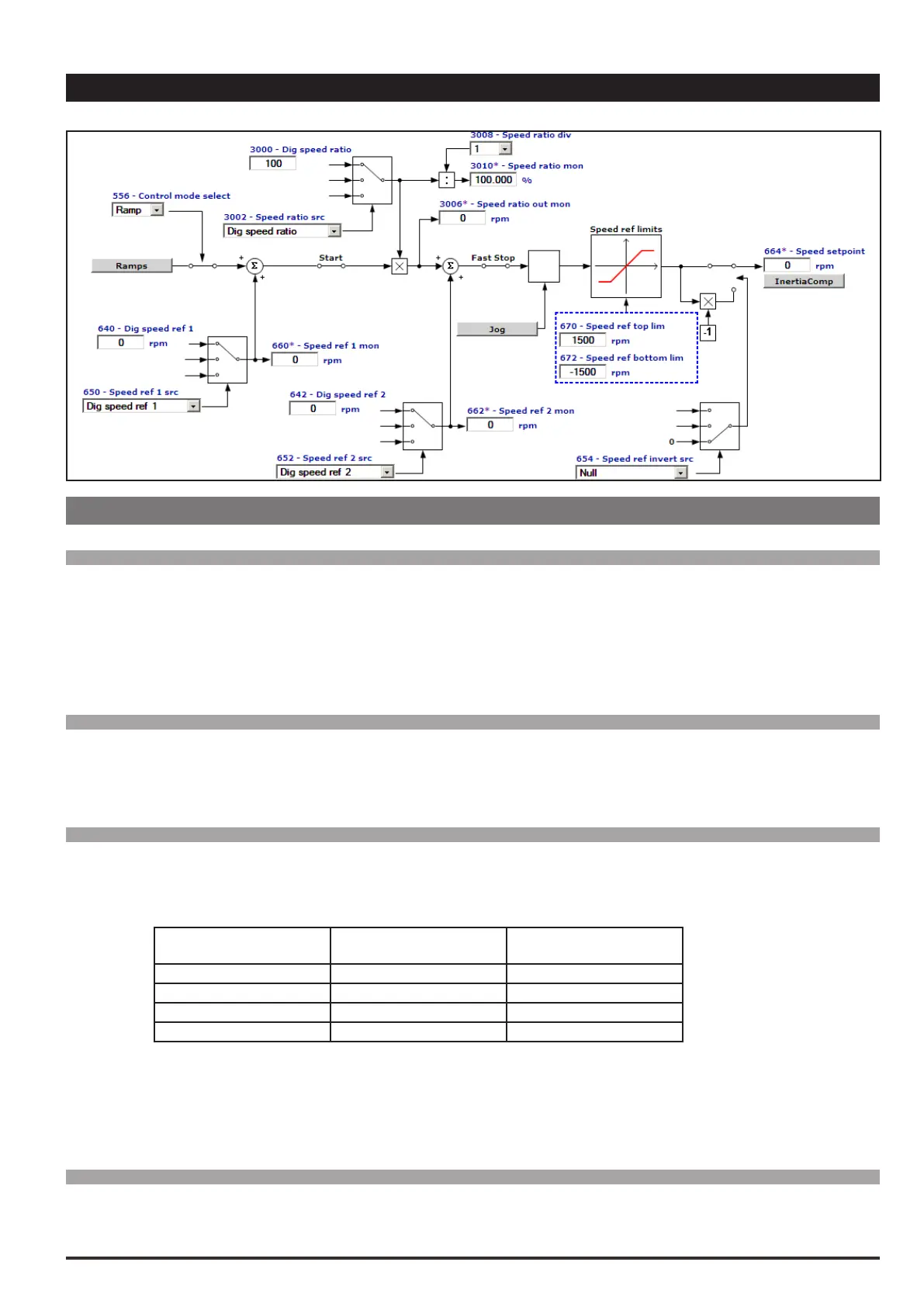

This function allows a congurable speed ratio (Speed ratio) to be applied to the main reference and deter-
mines the speed ratio percentage. This setting can be performed in digital form, via eldbus, or through an
analog input. This function is useful in “multi drive” systems where a slip value is required between the vari-
ous motors being used. The resulting speed value can be read through the Speed ratio mon parameter on a
programmable analog output.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.1.2 3002Speedratiosrc LINK 16/32 3000 0 16384 ERW FVS
Selection of the origin (source) of the signal that determines the speed ratio percentage value. The terminal to
be associated with this function can be selected from the “L_VREF” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.1.3 3008Speedratiodiv ENUM 1 1 1000 ERW FVS
This parameter denes the number of decimal positions for setting PAR 3000 Digspeedratio. Possible values
are shown in the table below:
Speedratiodivider Valuesthatcanbesetin
PAR3000Digspeedratio
Corresponding%value
1 0-200 0-200
10 0-2000 0-200.0
100 0-20000 0-200.00
1000 0-32000 0-32.000
1 1
10 10
100 100
1000 1000
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.1.4 3010Speedratiomon FLOAT INT16 0 0 0 ER FVS
The speed ratio value to apply to the selected speed reference signal value is displayed.
