ADV200 • Functions description and parameters list 47
11–COMMANDS

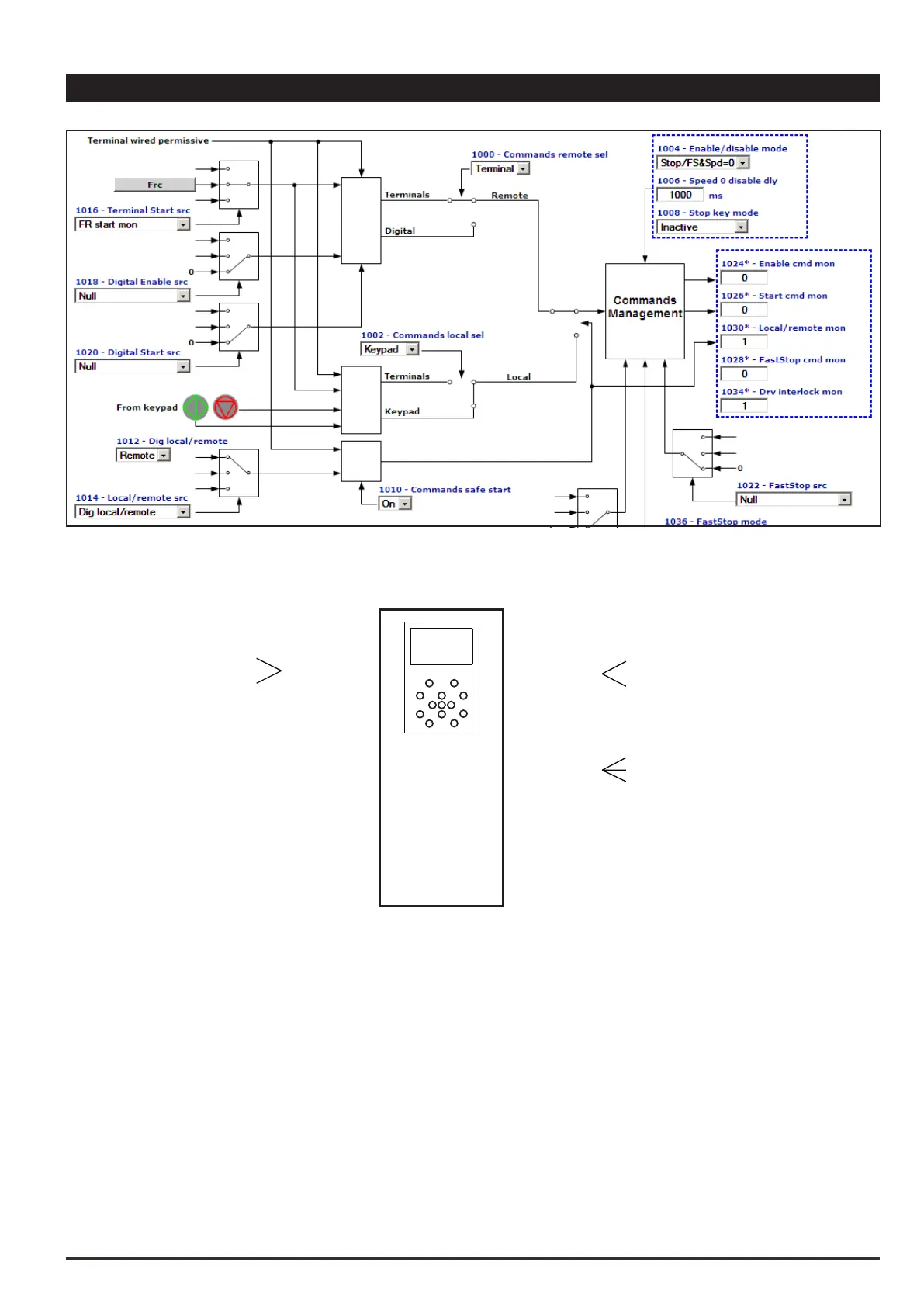

It is possible to work in Local or Remote mode.
ADV200
Local Remote
Keypad
Terminal
Standard I/O
Expansion I/O
Modbus
Field bus
Profile (DS402-Profidrive)
Terminal
Standard I/O
Expansion I/O
Digital
Ramp ref 3 Ramp ref 1
When switching between Remote and Local modes the origin of the Enable and Start commands is switched and in
the RampRef block, switching occurs between Ramp ref 1 and Ramp ref 3.
In Remote mode the “Commandsremotesel” parameter is used to congure the source of the Enable and Start
commands which can be Terminal (standard digital input, expansion digital input) or Digital (Modbus, Fieldbus, Prole
DS402, Prole prodrive).
In Local mode the “Commandslocalsel” parameter is used to congure the source of the Enable and Start com-
mands, which can be Terminal (standard digital input, expansion digital input) or Keypad (Start key, Stop key).
In RemotecDigital mode the DigitalEnablesrc and DigitalStartsrc parameters must be used to congure the
source.
Normally the sources are the Pad parameters. Modbus or Fieldbus must therefore write the desired value on the Pad
parameters. Alternatively, the value of 6000 can be written directly on the DigitalEnablesrc and DigitalStartsrc
