ADV200 • Functions description and parameters list 151
does not exceed the maximum size of 32768.
Example: FieldbusS->Mxmul = 10, S->M1eldbuspar= Motorspeed, SysS->M1eldbus = Eu.
If the motor is running at 100 rpm, the PLC reads the value 100 * 10 = 1000 on the rst word that is exchanged.
23.5–COMMUNICATION/WORDCOMP
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.5.1 4400Wordbit0src LINK 16 6000 0 16384 ERW FVS
23.5.2 4402Wordbit1src LINK 16 6000 0 16384 ERW FVS
23.5.3 4404Wordbit2src LINK 16 6000 0 16384 ERW FVS
23.5.4 4406Wordbit3src LINK 16 6000 0 16384 ERW FVS
23.5.5 4408Wordbit4src LINK 16 6000 0 16384 ERW FVS
23.5.6 4410Wordbit5src LINK 16 6000 0 16384 ERW FVS
23.5.7 4412Wordbit6src LINK 16 6000 0 16384 ERW FVS
23.5.8 4414Wordbit7src LINK 16 6000 0 16384 ERW FVS
23.5.9 4416Wordbit8src LINK 16 6000 0 16384 ERW FVS
23.5.10 4418Wordbit9src LINK 16 6000 0 16384 ERW FVS
23.5.11 4420Wordbit10src LINK 16 6000 0 16384 ERW FVS
23.5.12 4422Wordbit11src LINK 16 6000 0 16384 ERW FVS
23.5.13 4424Wordbit12src LINK 16 6000 0 16384 ERW FVS
23.5.14 4426Wordbit13src LINK 16 6000 0 16384 ERW FVS
23.5.15 4428Wordbit14src LINK 16 6000 0 16384 ERW FVS
23.5.16 4430Wordbit15src LINK 16 6000 0 16384 ERW FVS

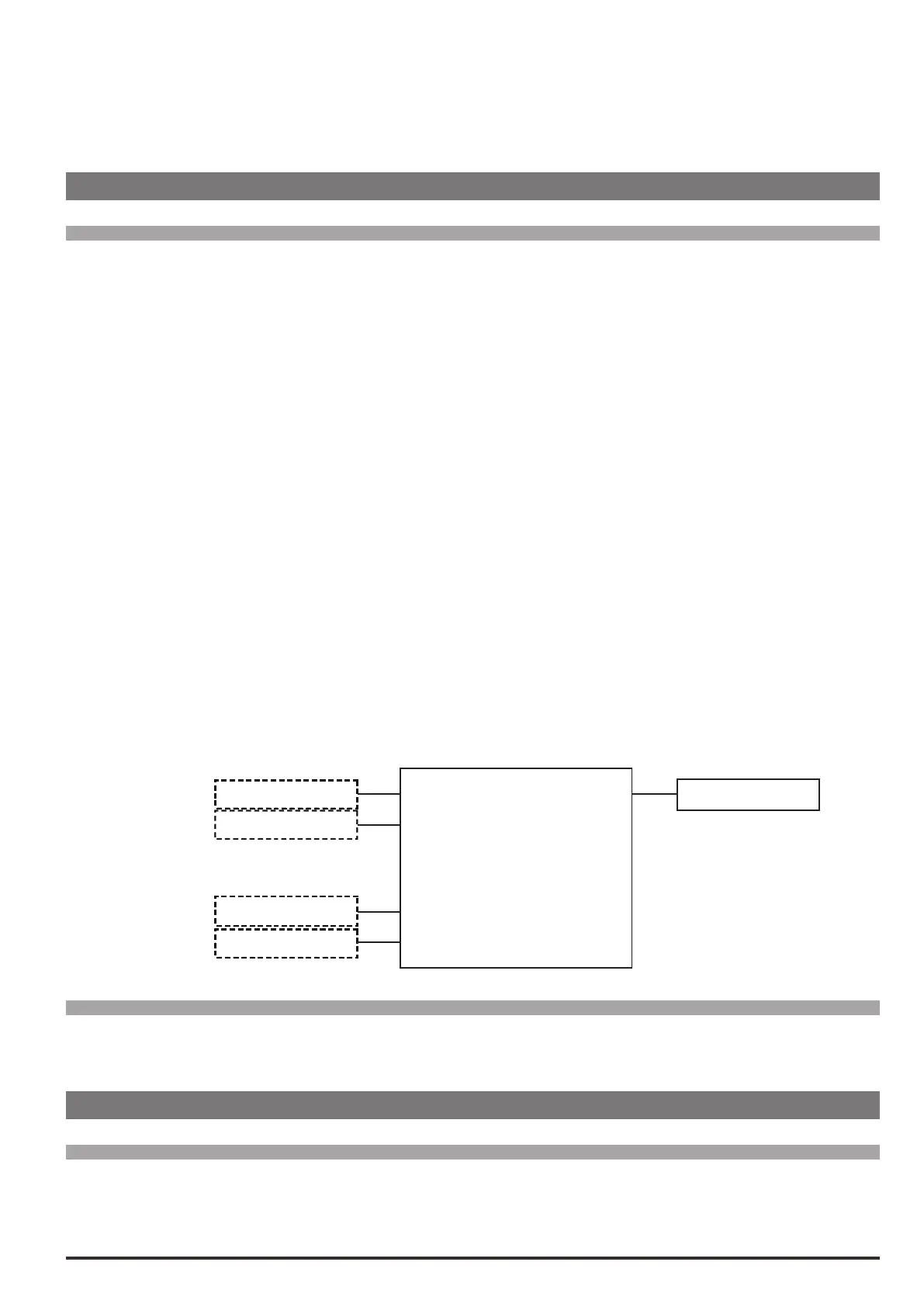

Selection of the origin (source) of the signal to be used for coding in Wordcomp. This function allows the user
to compose a single word composed of 16 signals, each of which can be selected from among those listed in
the “L_DIGSEL1” selection list.
The values of the sectioned sizes are converted into a single word.
Word bit0 src
Word bit1 src
Word bit14 src
Word bit15 src
Word comp mon
WORD_0
BIT_0
BIT_1
BIT_14
BIT_15
BIT_1
.........................
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.5.17 4432Wordcompmon UINT32 16 0 0 0 ER FVS
The hexadecimal value of the Word comp output is displayed.
23.6–COMMUNICATION/WORDDECOMP
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.6.1 4450Digworddecomp UINT32 16 0 0 0 ERW FVS
Setting of the digital input decoded by the “Worddecomp” block.
