ADV200 • Functions description and parameters list 89
18–SPEEDREGGAINS
The speed adaptive allows different speed regulator gains to be obtained according to the speed or another value. The
behaviour of the speed regulator can thus be congured in the best way for the specic application requirements.
Note ! Current, flux and voltage regulators can be set using the self-tuning procedure. If this is not successful, current and flux regulators
can be tuned manually (this does not apply to voltage regulators, whch must not be modified by the user). The speed regulator
must be tuned manually. Gains are usually adjusted according to the drive speed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.1 2200SpeedregP1gain perc INT16 100 0 1000 RW F_S
18.2 2202SpeedregI1time perc INT16 100 0 1000 RW F_S
Setting of the proportional and integral gain of the speed regulator, set 1.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.3 2204SpeedregP2gain perc INT16 100 0 1000 ERW F_S
18.4 2206SpeedregI2time perc INT16 100 0 1000 ERW F_S
Setting of the proportional and integral gain of the speed regulator, set 2.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.5 2216Gainadaptsrc LINK 16/32 664 0 16384 ERW F_S

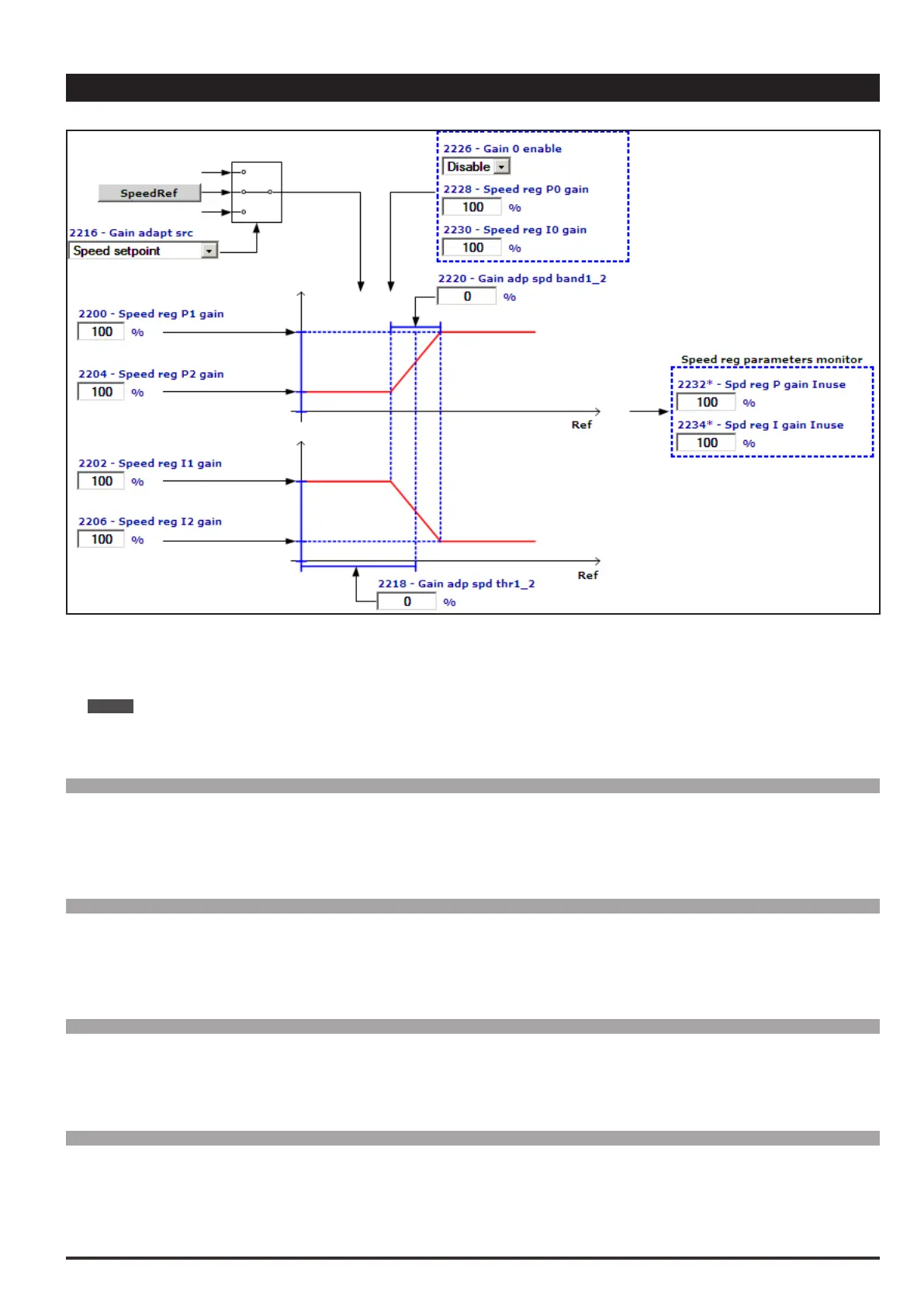

Selection of the origin (source) of the signal to be used for the adaptive speed gain. The values that can be as-
sociated with the function are listed in the “L_REF” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
18.6 2218Gainadaptspdthr1_2 perc FLOAT 0.0 0.0 100.0 ERW F_S
Setting of the speed threshold for changing gains from set 1 to set 2.
