gefran GRM-H 15 User Manual

819XX_MAN_GRM-H_11-2022_ENG_pag. 77

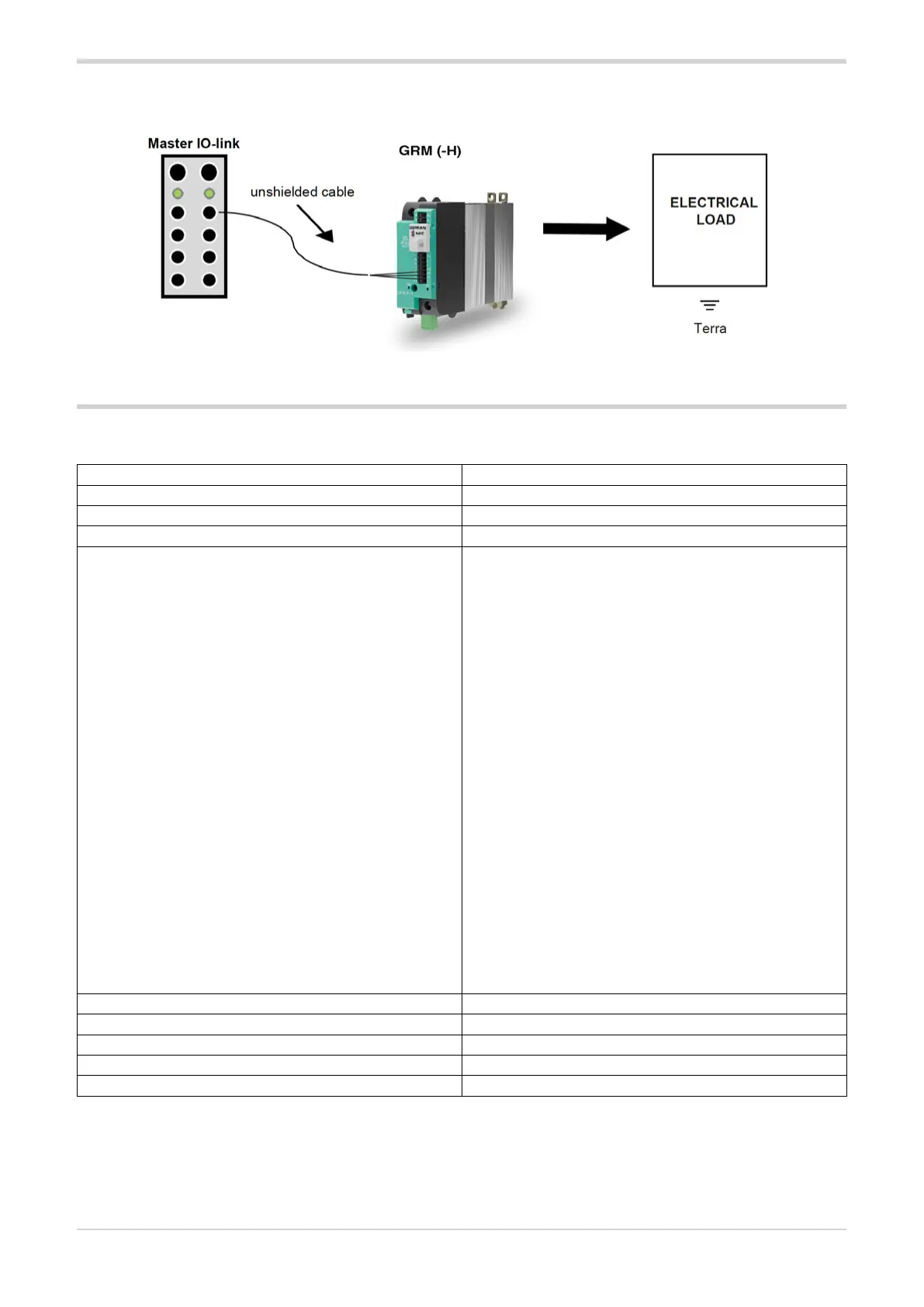

6.3. CONTROL MODE
6.3.1. IO-Link information
Port class A
Baud rate COM2 (38.4 kbit/s)
IO-Link version (1)
1.1
Profile Common profile
Process data input length
(14 byte)
% power supplied: 2 bytes
Ld.A (load current): 2 bytes
Ld.V (load voltage): 2 bytes
Ld.P (load power): 2 bytes
Ld.I (load impedence): 2 bytes
STATUS2: 2 bytes
for diagnostics:
STATUS2_NO_CURRENT: 1 bit
STATUS2_NO_VOLTAGE: 1 bit
STATUS2_SSR_SHORT: 1 bit
STATUS2_HB: 1 bit
STATUS3: 2 bytes
for diagnostics:
STATUS3_DRYOUT: 1 bit
STATUS3_CURRENT_SENSOR_BROKEN: 1 bit
STATUS3_OVER_PEAK_CURRENT_PROJECTION:
1 bit
STATUS3_OVER_RMS_CURRENT: 1 bit
STATUS3_OVER_PEAK_CURRENT: 1 bit
STATUS3_SHORT_CIRCUIT_CURRENT: 1 bit
STATUS3_60HZ: 1 bit
STATUS3_FREQUENCY_WARNING: 1 bit
STATUS3_SOFTSTART_END: 1 bit
STATUS3_ SOFTSTART_ACTIVE: 1 bit
STATUS3_SCR_OVER_HEAT: 1 bit
STATUS3_SCR_TEMP_SENSOR_BROKEN: 1 bit
Process data output length (2 byte) % Power to be supplied: 2 bytes
Min cycle time 20ms
SIO mode Supported
ISDU Supported
Database Supported
(1) Compliant with IO-Link Interface Specication v.1.1.2 (July 2013)
