GF CMD User Manual

15
CMD
Probe
Wide family of CMD probes with various single or multidepth ranges is
offered - CMD-Explorer, CMD-MiniExplorer, CMD-4/6, CMD-4, CMD-2, CMD-
1, CMD-Tiny and CMD-Duo. Each probe can measure both in the full depth range
(vertical orientation of magnetic dipoles with the sensitivity at nominal depth) and
in the half depth range (horizontal orientation of magnetic dipoles with the
sensitivity near surface).
Assembling the measuring apparatus
Probe CMD-Tiny
There are two ways of measurement with CMD-Tiny:
Using carrying rod - mostly for spot measurements
Using sledge (optional accessories) – mostly for continuous measurements.
Both ways allow measuring either with HIGH or LOW depth ranges.
Assembly for spot measurements
Connect metal connector built in two tubular parts of the holder. (If the
connector with its cable is hidden in the tube it is possible to move it out by short
fast swing of the tube.) Insert the thinner part of the holder into the thicker one, fix
the position using aluminum metal pin (there are four possibilities of the length of
the holder – four holes) and screw the black plastic nut using slight force.
Dismantle white plastic screw from the bottom end of the holder and insert
the holder into the hole in the probe. If you wish to measure with maximum depth
range (HIGH), turn the probe so that the black strip and label “Hi” are on its upper
side. If you wish to measure with half depth range (LOW), turn the probe so that
the black strip and label “Lo” are on its upper side. It is necessary to fix the holder

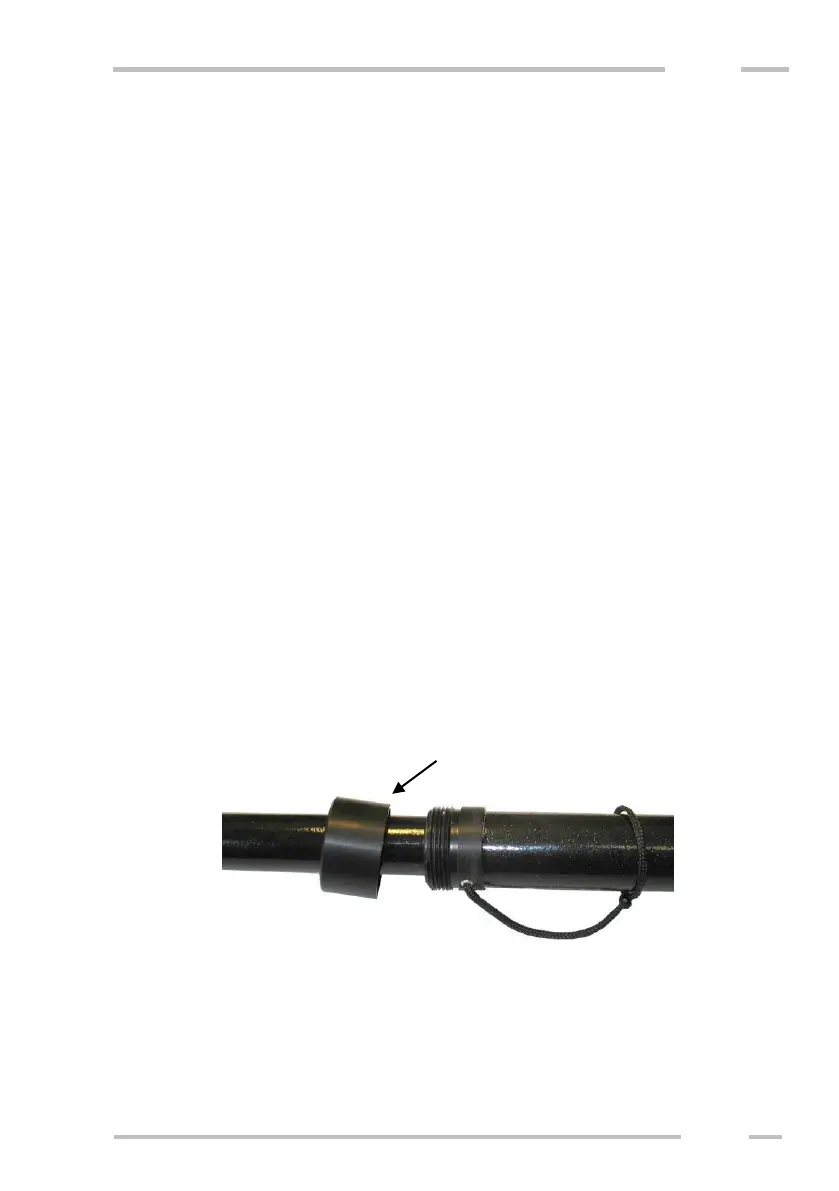

Plastic nut
