Super Match
Wiring diagram please refers to 5U34HS2ERA
Loosen wire cover and connect the power line and communication wire of indoor unit to the terminal correspondingly.
Note:
When connecting power line to power supply terminal, please pay attention to the following items:
Do not connect the power line with different dimensions to the same connection wire end.
Improper contact will cause heat generation.
Do not connect the power line with different dimens
ions to the same grounding wire end.
Improper contact will affect protection.
Do not connect the power line to the connecting end of communication wire.
Incorrect connection will cause damage to the connected unit.

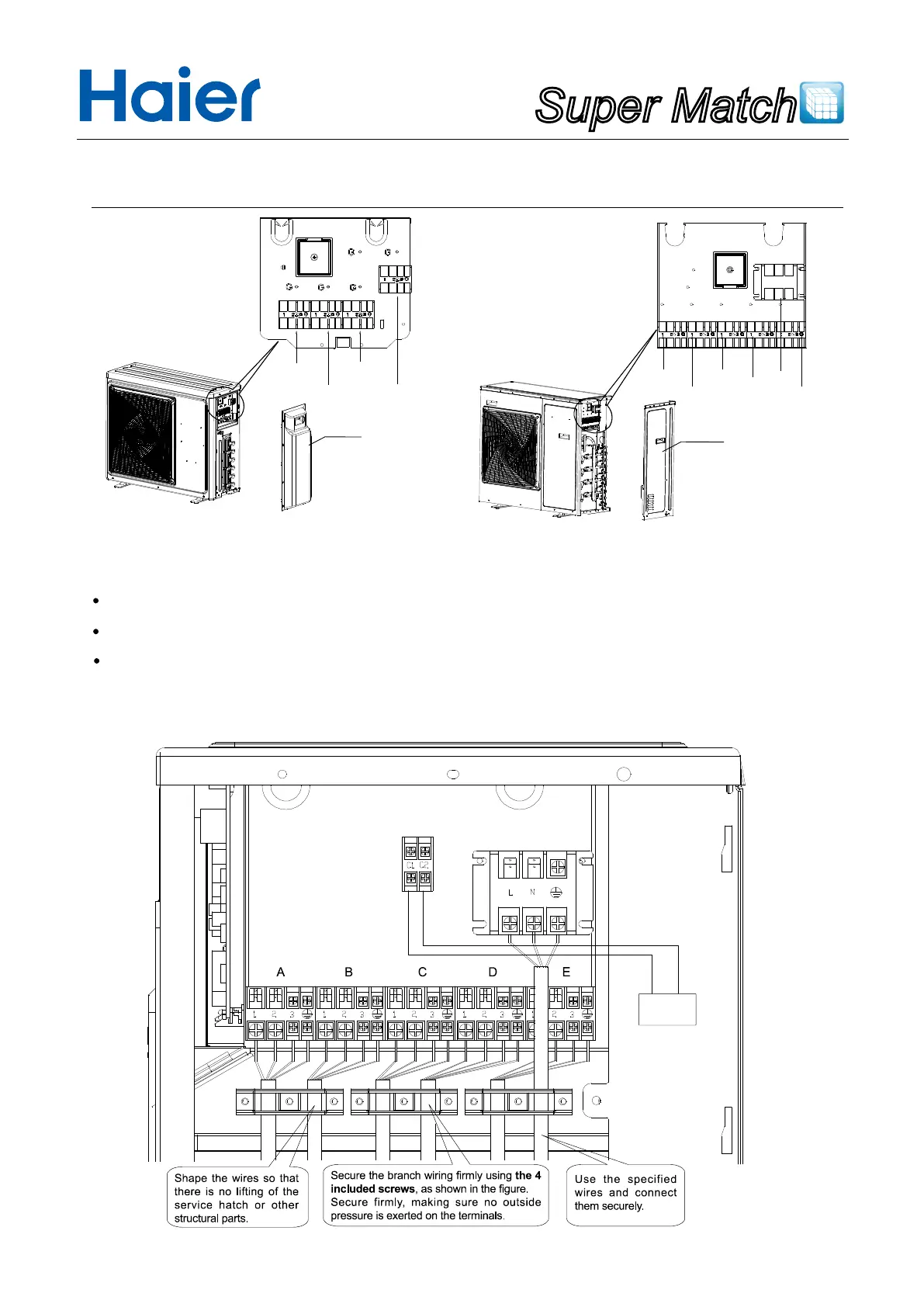

4. Wiring method of indoor unit
Wiring work
Terminal block
Wire cover A
Wire cover B
Wire cover C
Wire cover B
Wire cover C
Wire cover D
Wire cover E
Terminal blockWire cover A
Valve cover
5. Example wiring diagram.
Valve cover
YCZ-A003
