Super Match
Installation Of Wire Controller

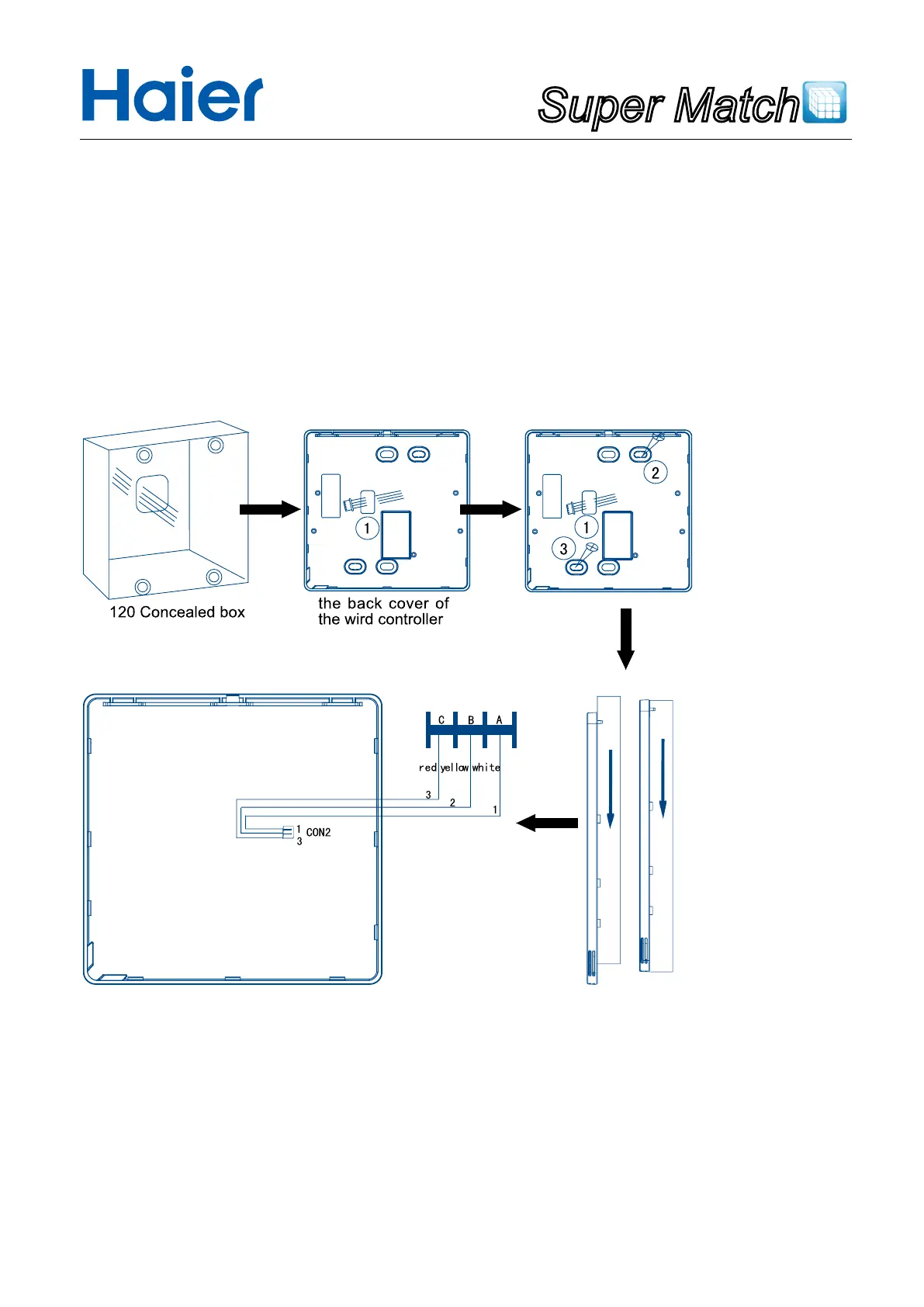

• Installation of wire controller:
1. Pass the communication cable through the hole of the concealed box.
2. Pass the cable through the back cover of the wired controller at the place No.1.
3. Mounted the back cover on the concealed box by screws.
4. Plug the terminals of the communication cables on the corresponding connectors, and slide the front cover
of the wirde controller from up to down,then îš¿xed
。
5. White wire, connected to indoor A, Yellow wire,connected to indoor B,
Red wire,connected to indoor C
To Next Page
