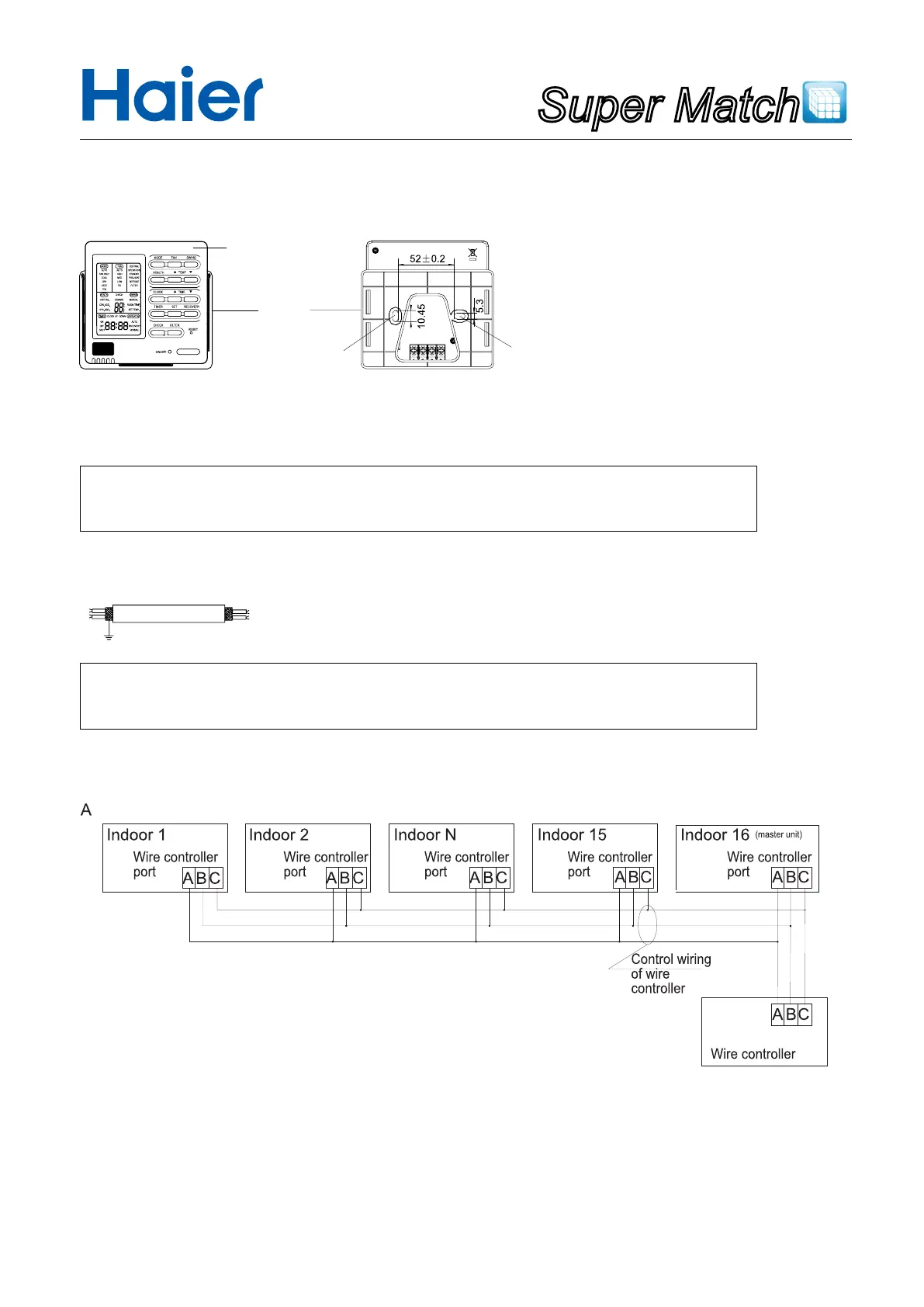

Super Match
Installation Manual For Wire Controller
1. Take down wire controller from the holder
2. Install the controller holder
According to the position of 2 screw holes on the holder, drill 2 holes on the wall, and strike the wood stopper to the holes
respectively.
Then align the 2 screw holes of wired controller holder to the wood stopper, îš¿x the holder on the wall with wood screw.
3.Wiring instruction
Use shielded wire between indoor and wire controller. And be earthed on one side, or the unit will not work normally
because of interference.
Note:
Try a wall as at as possible for installation. Don't use excessive force to tighten screws, otherwise, the holder will be
damaged.
Note:
Conîš¿rm the terminal connection îš¿rmly, and do not get in tough with shielded wire.
Don't touch the PC panel with your hands.
4.Place wire controller on the holder, and pay attention not to pressing any wires.
5. Wiring connections of wire controller:
Wire controller
Screw holesScrew holes
shielded wire
grounding
Bracket
TYPE1: For AD09~24SS1ERA(N)(P) AD09~24SS1ERA(N) AD12/18MS1ERA AD12/18MS1ERA(D) AD24MS2ERA AD24MS2ERA(D)
To Next Page
