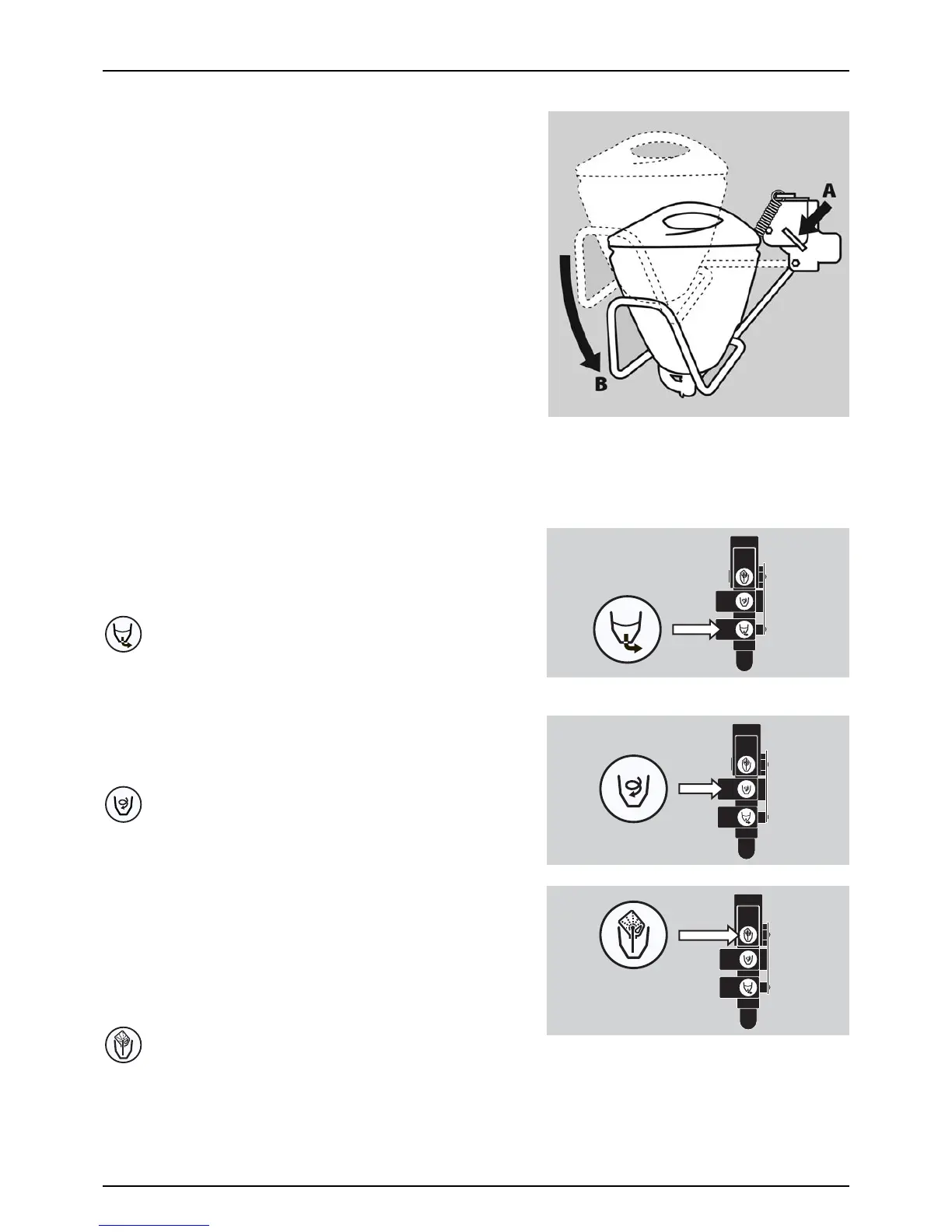

HARDI®TURBO FILLER (optional equipment)
The TurboFiller is situated in the working zone on the sprayers left side.
When being used it should be unlocked by pulling the handle (A)
situated to the right of the TurboFiller and pushed down (B) by grabbing
the handle on the TurboFiller until it clicks into locked down-position.
When retracting the TurboFiller after use, then unlock it by pulling the
handle (A) situated to the right of the TurboFiller and pull it back in
storing position until it clicks into the lock.
±
WARNING! Before releasing the lock (A) always keep a hand on
the grip to avoid abrupt movement of the TurboFiller!
Before use
• Pull the handle (A) to unlock.
• Grab the handle to push TurboFiller down (B) until it clicks into
locked down-position.
After use
Pull the handle (A) to unlock.
• Grab the handle to pull TurboFiller back in storing position until it locks.
TurboFiller Suction Valve
The valve is used simultaneously with the TurboFiller. The valve has 2
settings: Continuously open or spring loaded normally closed. Open the
valve when chemicals are to be filled into the TurboFiller and transferred
to main tank.
TurboDeflector Valve
This TurboDeflector valve activates the Vortex flushing of the TurboFiller.
Lift the lever to lock it in open position for continuous liquid rotation in
the hopper.
Chemical Container Rinsing Lever
The upper lever is used for two purposes:
When the TurboFiller lid is open: For rinsing empty containers. Place the
container over the rotating flushing nozzle in the middle of the
TurboFiller to rinse the inside of the container.
When the TurboFiller lid is closed: Use the Chemical Container Rinsing
lever to rinse the hopper when the filling of chemicals is completed.
€
DANGER! Do not press the lever unless the multi-hole nozzle is covered by a container as spray liquid may otherwise
hit the operator.
Suction from TurboFiller
Start TurboDeflector
Chemical Container Rinsing
