Hardi NAVIGATOR 6000 Instruction Book

3 - Description
26

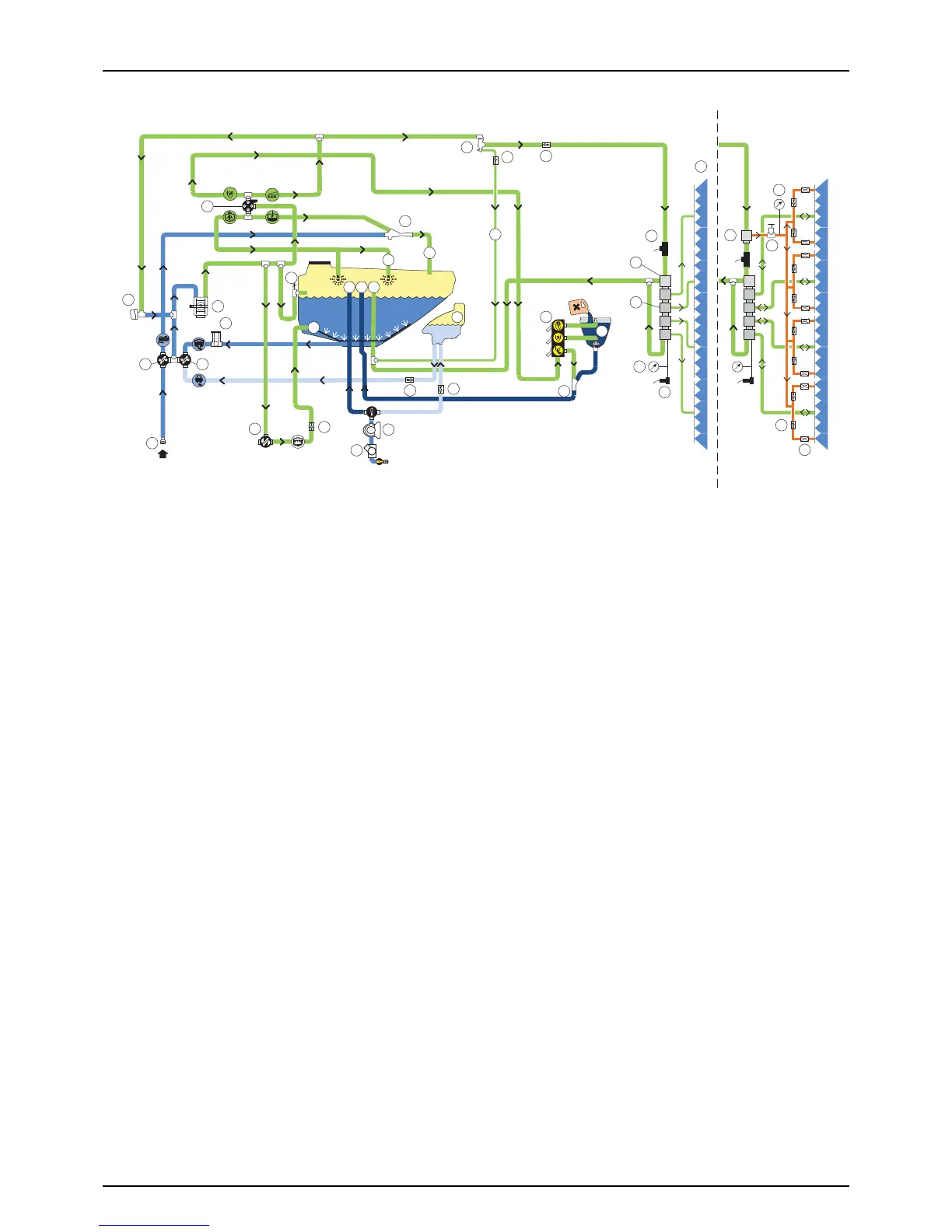

Diagram - Liquid System with Options and TurboFiller)
1. Pump
2. EasyClean filter
3. Suction Valve for Main Tank / RinseTank
4. Pressure Control Valve
5. Pressure SmartValve
6. CycloneFilter
7. Return Line for Boost Function
8. Bypass Valve for Boom
9. Distribution Valves
10. Flow meter
11. Spray Boom
12. Agitation Valve
13. Agitation Tube
14. Tank Hose for Return Lines
15. Safety Valve
16. One-Way Valve
17. Tank Hose (Riser Pipe)
18. Tank Rinsing Nozzles
19. Filtered Fast Fill (optional)
20. Rinse Tank
21. Valve Block TurboFiller
22. Ejector TurboFiller
23. TurboFiller
24. Tank Hose for Turbofiller
25. FastFiller Ejector
26. Filling Valve
27. Pressure Gauge for Boom
28. Pressure Sensor
29. Filling Coupler
30. FastFiller Hose to Tank Inlet
31. Restrictor for BoomPrime
32. One-Way Valve for BoomPrime
33. Bypass Valve for BoomPrime
34. Pressure Control Valve for BoomPrime
35. Pressure Gauge BoomPrime
BoomPrime
26 3
1
2
12
11
27
6
16
16
16
16
4
5
7
8
10
9
25
30
20
28
18
13
16
8x
8x
32
31
34
33
35
Clean Water
Fill ONLY
1424
15
19
23
22
21
17
29
36
