5 - Operation
57

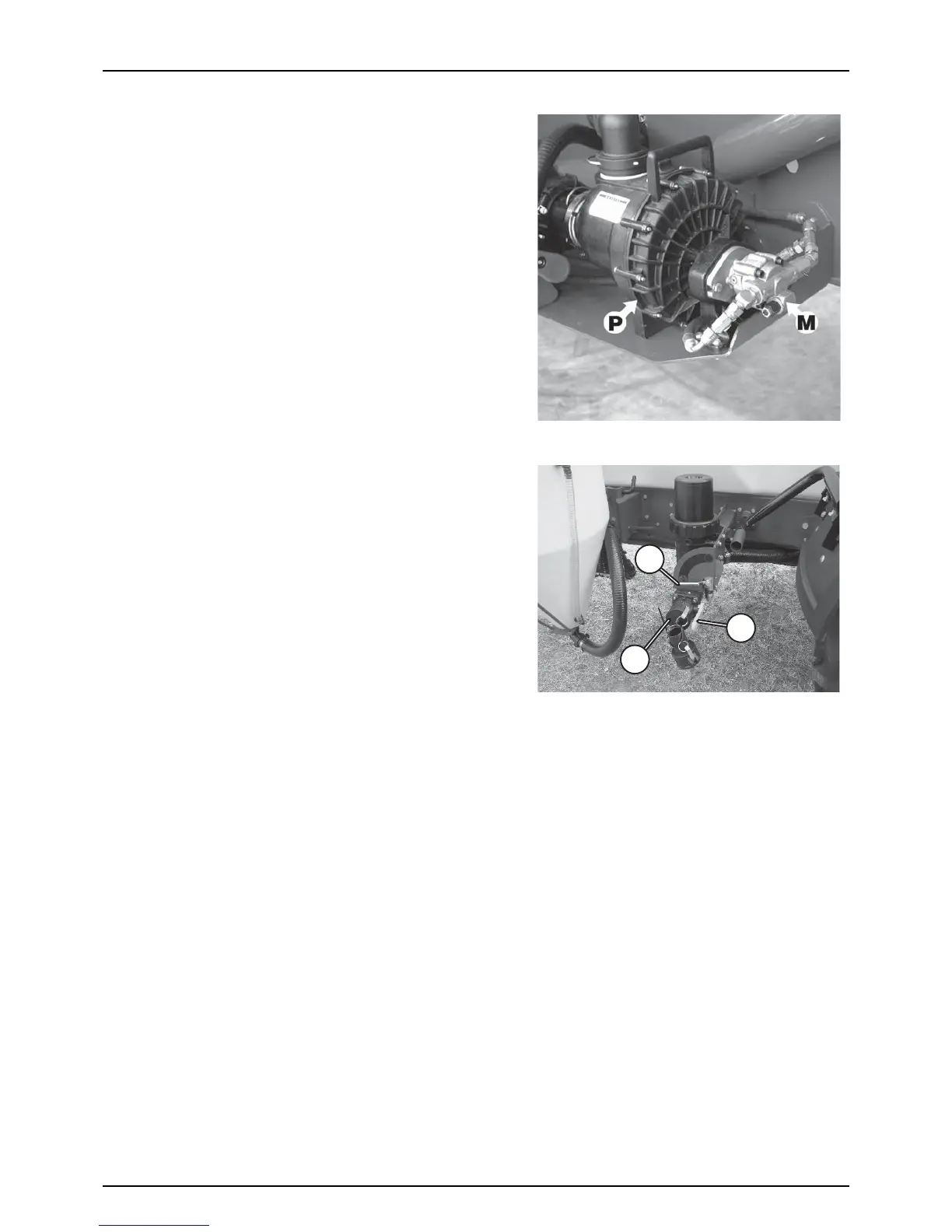

Banjo Filtered Fast Fill System
The ‘Banjo Filtered Fast Fill’ system employs a high capacity
centrifugal pump (P) driven by a hydraulic drive motor (M). The motor
is powered by the tractors auxiliary hydraulics and Speed limited by a
hydraulic burst valve. The operator can control the flow rate of the
pump by use of a variable
speed control valve (C) located on a panel
just forward of the filter.
μ
ATTENTION! Do not attempt to run the pump over the
recommended Maximum speed.
Operation
To fill the sprayer using the ‘Banjo” fast fill system:
1. Park the tractor and sprayer on a level surface, select neutral
gear, apply the hand brake and engage the auxiliary hydraulics.
2. Remove the cover from the Cam-lock coupling (A) and connect
a suction hose to a water source.
3. Open the ball valve (B) and gradually engage the hydraulic
speed control valve (C) until the desired flow rate is achieved.
4. When filling is complete dis-engage the hydraulic speed
control (C) and close the ball valve (B).
5. Remove the suction hose and replace the cam-lock cap (A).
