4 - Sprayer setup
45
Transport

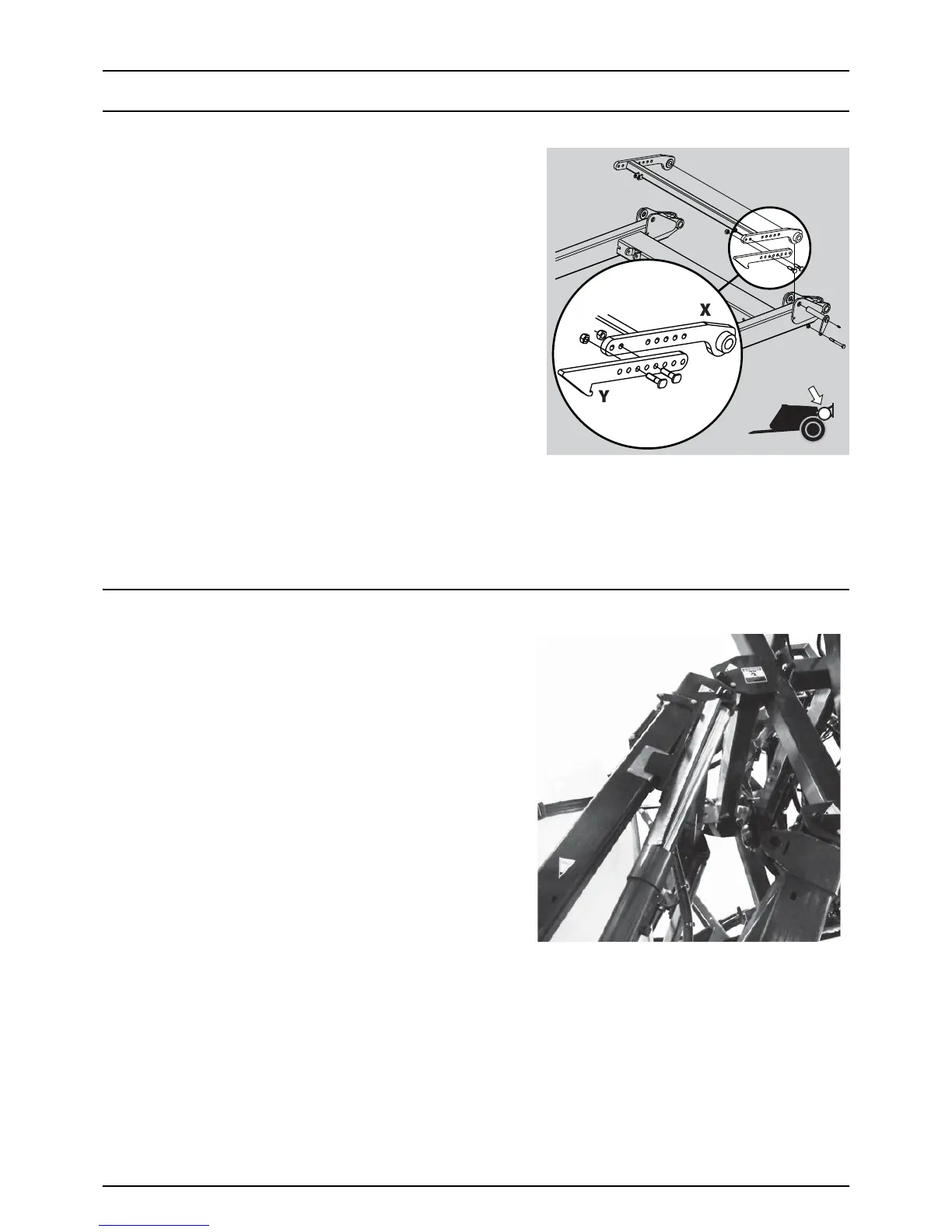

Transport lock Eagle/TR4 boom
The transport position can be set independently to obtain different
transport heights.
To change position:
1. Lift and unfold inner sections till lock is disengaged.
2. Lower the boom completely.
3. Loosen and remove the two bolts, which keep the parts (X) and (Y)
assembled.
4. Reassemble (X) and (Y) according to desired hole combination.
5. Recommended setting is when leaving 170 mm exposed from
paralift cylinder ram.
μ
ATTENTION! Always use both bolts to assemble the lock. The
setting must be identical on both sides.
μ
ATTENTION! The rear settings must correspond to the front
settings so the boom is resting on the front as well as rear brackets.
±
WARNING! The max. transport height must never exceed 4.0 m. Always measure the actual total height and choose
settings not exceeding 4.0 m.
Transport lock boom FTZ, B3
The boom is mechanically held in transport position with paralift lock
mechanisms that automatically engage when the first outer is
closing. The folded channel-section locks are fixed to the top paralift
arm and engage directly on the top of the paralift cylinders when
lowered for transport. This means the boom is not supported by
hydraulic oil pressure when in transport.
±
WARNING! Paralift locks should be checked before and after
transport to ensure positive lock engagement.
±
WARNING! When the sprayer is being transported along rough
road and is bounced over pot holes, in extreme cases there is
a risk that the lock arms can disengage.
