Boom
Safety Info
The boom must not be folded/unfolded while driving! Never use the folding/unfolding functions before the sprayer has
been stopped! Failure to do so will damage the boom.
€
DANGER! Before unfolding the boom it is important to connect the sprayer to the tractor to prevent overbalancing
of the sprayer.
€
DANGER! When folding or unfolding the boom, make sure that no persons or objects are within the operating area
of the boom.
€

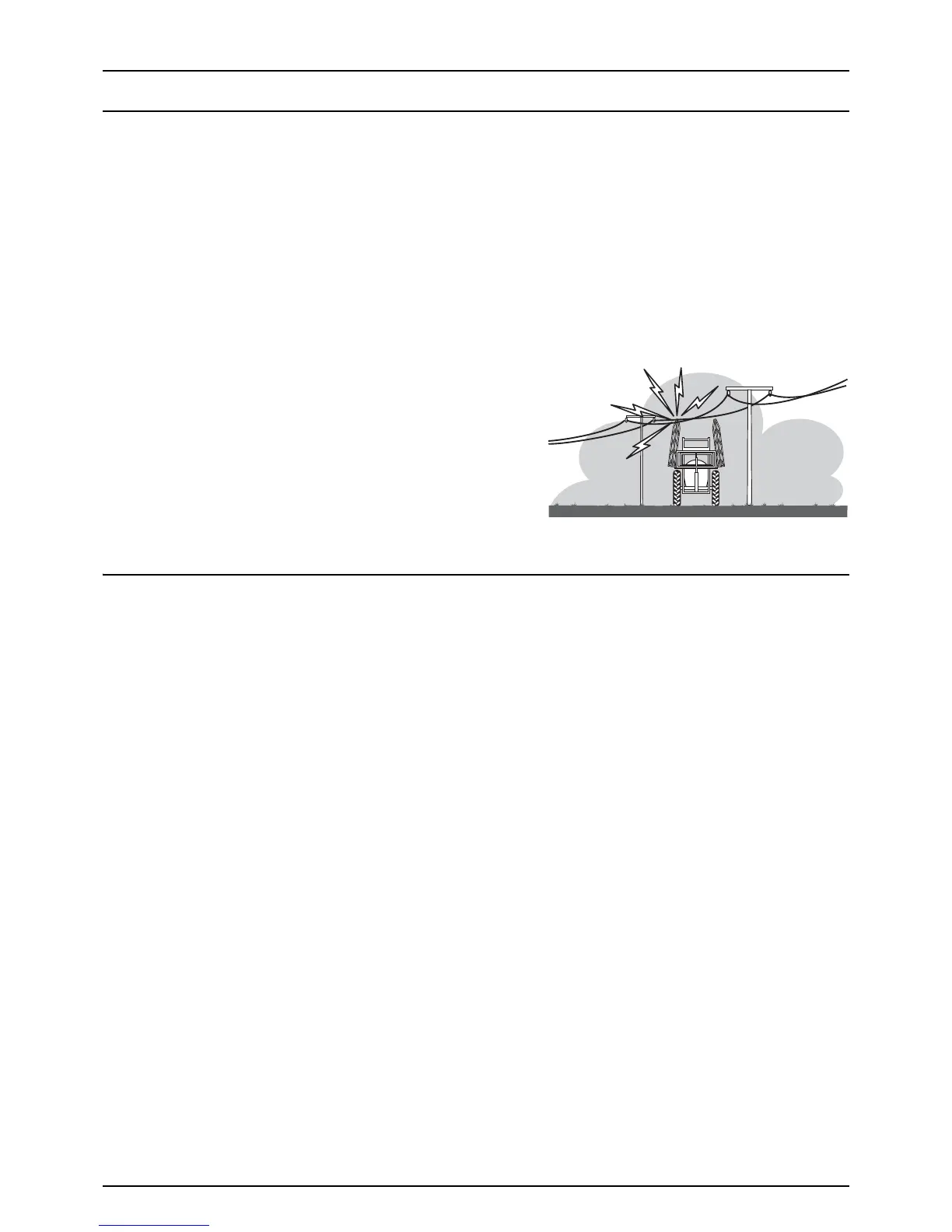

DANGER! Always follow the guidelines listed below when driving in areas with overhead power lines:
Never use the folding/unfolding functions in areas with overhead power
lines.
Unintended boom movements may cause contact with overhead
power lines.
μ
ATTENTION! A label (ref. no. 978448) follows the sprayer. This label
must be placed in the cabin visible from the operator’s seat.
μ
ATTENTION! Only unfold and fold the boom on level ground.
Manoeuvring of the boom Y-version (only EAGLE Boom)
The Eagle boom with hydraulic Y-version is operated as follows:
1. Activate the single acting hydraulic outlet to raise the boom and release it from the transport brackets.
2. Activate the double acting hydraulic outlet to unfold the boom. Both wings will now unfold simultaneously.
3. When the boom is completely unfolded, it can be raised or lowered to the desired spray height by activating the single
acting hydraulic outlet.
4. Before attempting to fold the boom back into transport position, it must be raised all the way to the top by activating
the single acting outlet. This will enable the rear cylinder transport lock.
5. The boom is folded by activating the double acting outlet in the opposite direction as for unfolding the boom. The
boom can now be lowered into the transport brackets.
6. The rear cylinder transport lock will automatically engage when lowering the boom, after it has been raised all the way
to the top. To disengage the rear transport lock, simply raise the boom back up a few centimetres and then lower it
again.
μ
ATTENTION! Only unfold and fold the boom on level ground.
±
WARNING! Ensure that the pendulum lock is locked before using the fold functions.
±
WARNING! Ensure that the rear cylinder transport lock is properly engaged before transport.
