Higen FDA7002EX User Manual

5. Servo operating
4-6
7) When P03-01=”5”, the variable gain is applied based on the ON/OFF status of external control
gain conversion contact point. At this time, the conversion time of the control gain is decided.
P02-24
Contact Gain TC
Unit
ms
Setting range
0.0 ~ 10000.0
Manufactured
default
100.0
Speed/Torque/
Position control

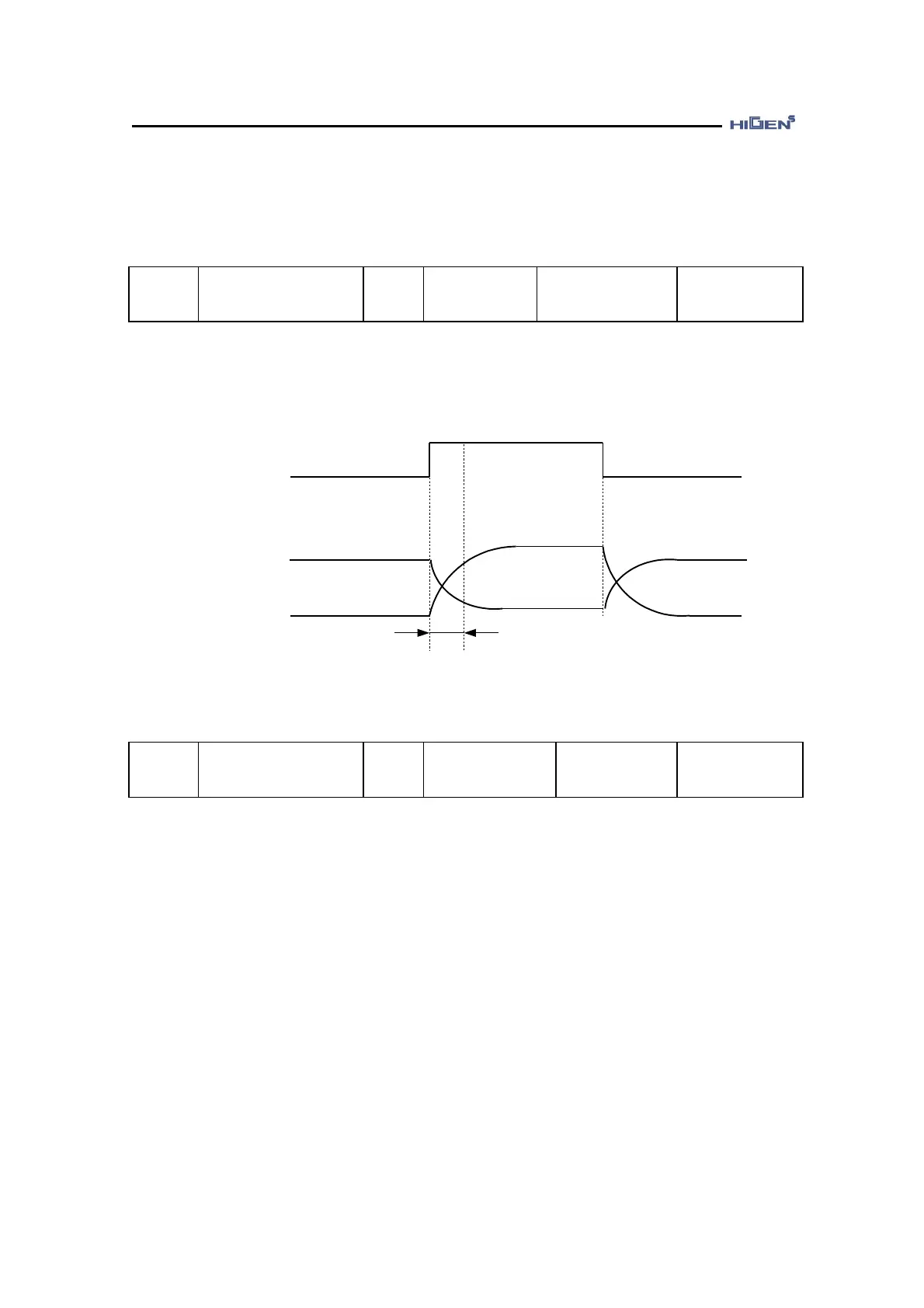

Increasing the contact gain TC in P02-24 has an effect of smoothing conversion of control gain.
P02-24 = 100 [ms]
Gain conversion
contact point
(GcsIos)
OFF ON OFF
P03-07
Applied
gain
P03-05
SC loop gain
P03-06
P03-08
SC TC
8) This sets the mixture rate of the PI-IP controller.
P03-02
PI-IP Control %
Unit
%
Setting range
0.0 ~ 100.0
Manufactured
default
100.0
Speed control
[ Characteristics of individual controller ]
a) PI speed controller
: It has excellent acceleration/deceleration and good responsiveness characteristics but can
cause large overshoot.
b) IP speed controller
: It has lower acceleration/deceleration and responsiveness characteristics compared to the
PI speed controller, but it can suppress the overshoot to reduce the vibration.
You can adjust the controller set ratio with the desired performance by considering the
responsiveness and overshoot.
♥ P03-02 = 100 : Applied to PI speed controller
P03-02 = 0 : Applied to IP speed controller
