Video Access Control Terminal·User Manual
99

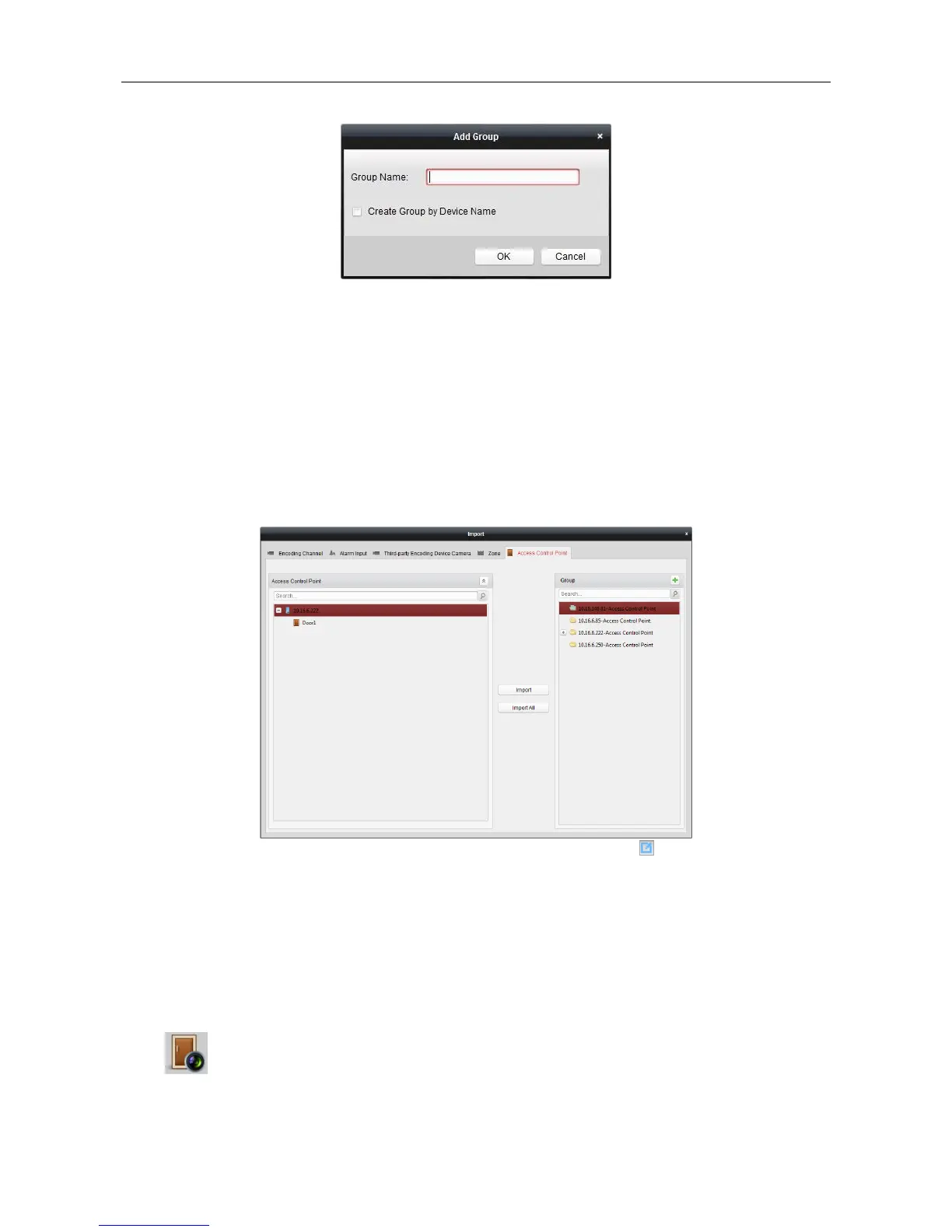

4. Perform the following steps to import the access control points to the group:
1) Click Import on Group Management interface, and then click the Access Control tab to
open the Import Access Control page.
Notes:
 You can also select Alarm Input tab and import the alarm inputs to group.
 For the Video Access Control Terminal, you can add the cameras as encoding channel
to the group.
2) Select the names of the access control points in the list.
3) Select a group from the group list.
4) Click Import to import the selected access control points to the group.
You can also click Import All to import all the access control points to a selected group.
5. After importing the access control points to the group, you can click , or double-click the
group/access control point name to modify it.
7.12.2 Anti-control the Access Control Point (Door)
Purpose:
You can control the status for a single access control point (a door), including opening door, closing
door, remaining open, and remaining closed.
Click icon on the control panel to enter the Status Monitor interface.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
