HIKVISION DS-K1T501SF User Manual

Video Access Control Terminal·User Manual
117

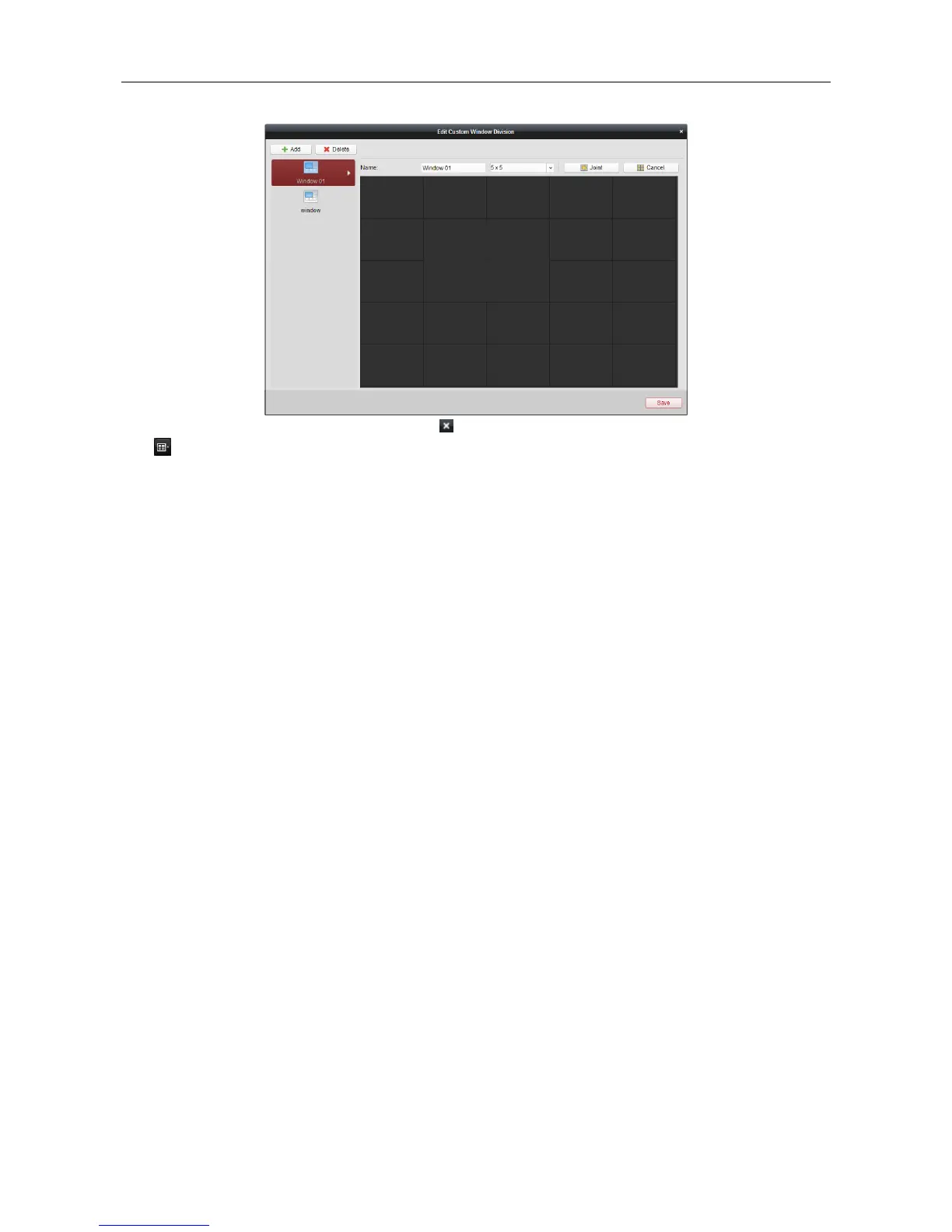

6. Click Save to confirm the settings. Click to back to the Main View page. Then you can click
and select the custom window division for playing live video.
Notes:
 You can also enter the Remote Playback page and perform the steps above to configure
the custom window division.
 For remote playback, up to 16 windows can be played back at the same time. The custom
window division with more than 16 windows is invalid for playback.
7.15.5 Other Functions in Live View
There are some other functions supported in the live view, including digital zoom, two-way audio,
camera status and synchronization.
Auxiliary Screen Preview
The live video can be displayed on different auxiliary screens for the convenient preview of
multiple monitoring scenes. Up to 3 auxiliary screens are supported.
Channel-zero
For the channel-zero of the device, you can hold the Ctrl key and double-click to display the
specific channel. Hold the Ctrl key and double-click again to restore.
Two-way Audio
Two-way audio function enables the voice talk of the camera. You can get not only the live video
but also the real-time audio from the camera. If the device has multiple two-way audio channels,
you can select the channel to start two-way audio.
The two-way audio can be used for only one camera at one time.
Camera Status
The camera status, such as recording status, signal status, connection number, etc., can be
detected and displayed for check. The status information refreshes every 10 seconds.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
