HIKVISION DS-K1T501SF User Manual

Video Access Control Terminal·User Manual
18

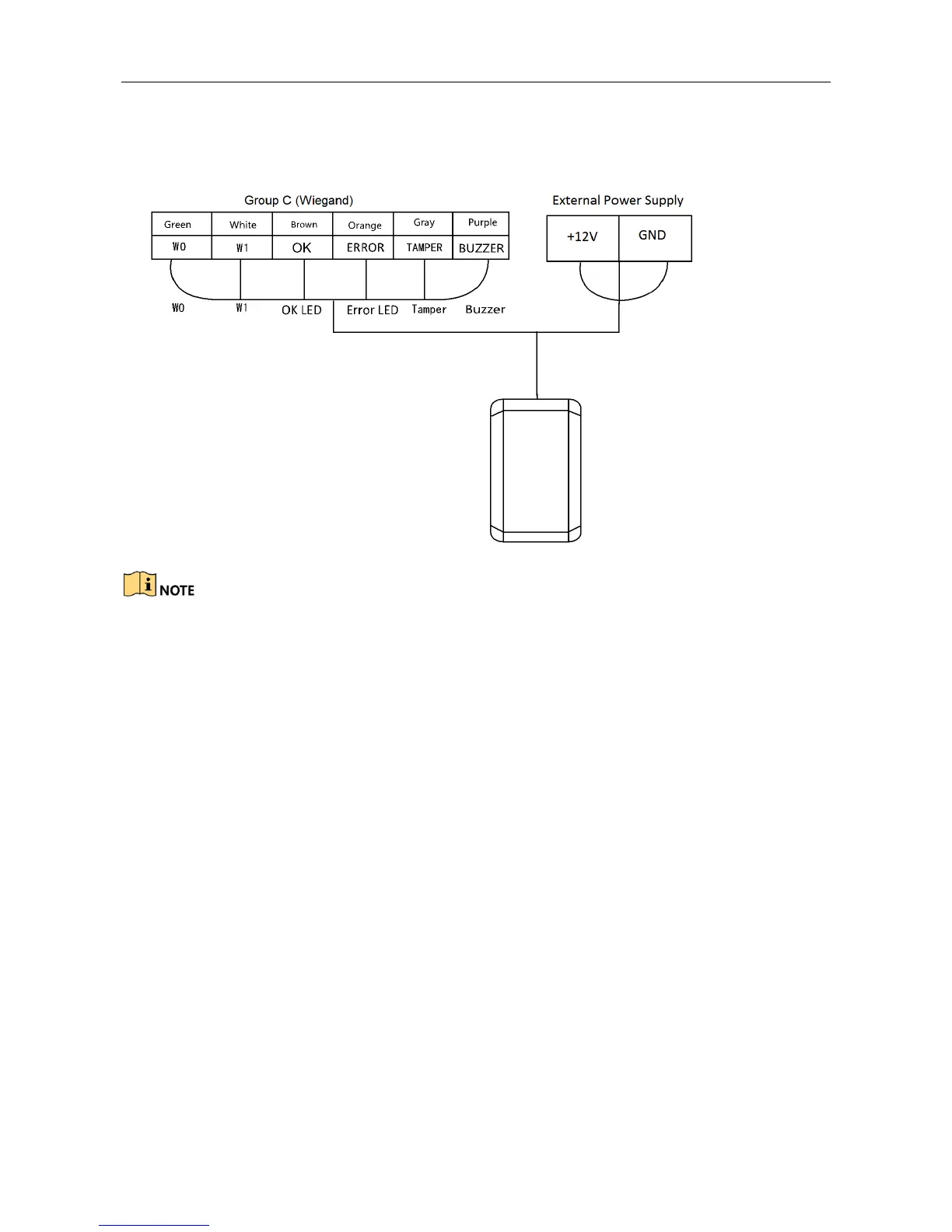

5.3.1 The Wiring of Wiegand
 When the access control terminal works as a card reader, you must the WG_ERR, BUZZER and
WG_OK interfaces if you want to control the LED and buzzer of the Wiegand card reader.
 Set the working mode of the terminal as card reader, if the terminal is required to work as a
card reader. The card reader mode support to communicate by Wiegand or RS-485.
 The distance of Wiegand communication should be no longer than 80 m.
 The external power supply and the access control terminal should use the same GND cable.

HIKVISION DS-K1T501SF Specifications

General

Type	Basic access control reader
Product color	Gray
Cards capacity	50000 cards
Housing material	Metal
Keypad integrated	No
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Face recognition
Transaction capacity	200000
Fingerprint sensor type	Optical
Identification (1:N) time	1.5 s
False Rejection Rate (FRR)	0.01 %
False Acceptance Rate (FAR)	0.001 %
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
DC current (max)	600 A
DC voltage range	12 V
Total megapixels	2 MP
Front camera type	Single camera
PC connected	-
RS-485 ports	1
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	218 mm
Width	78 mm
Height	41 mm
